Wiring Diagram - IGNITION POWER SUPPLY -

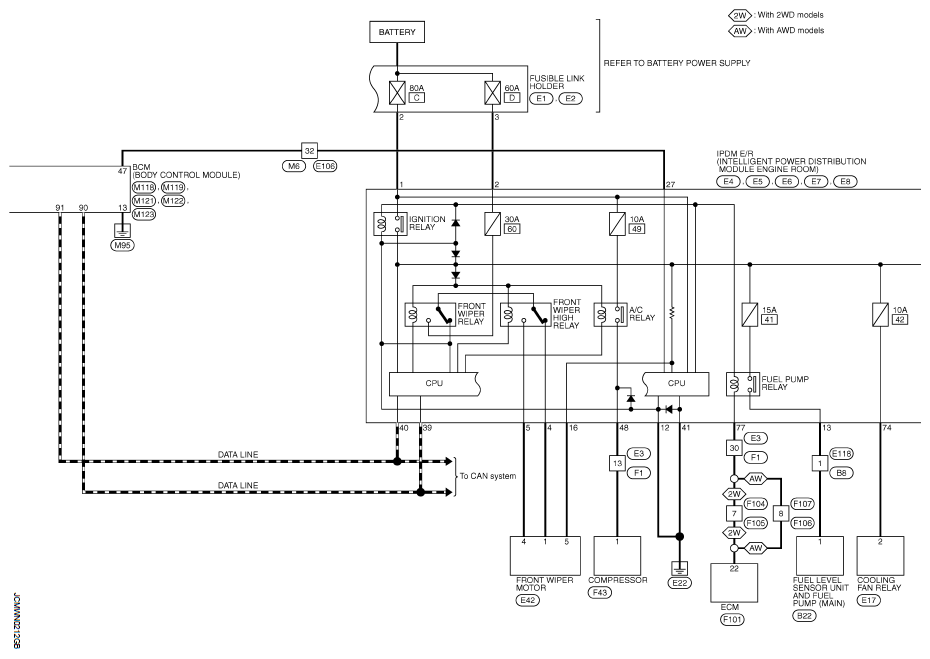

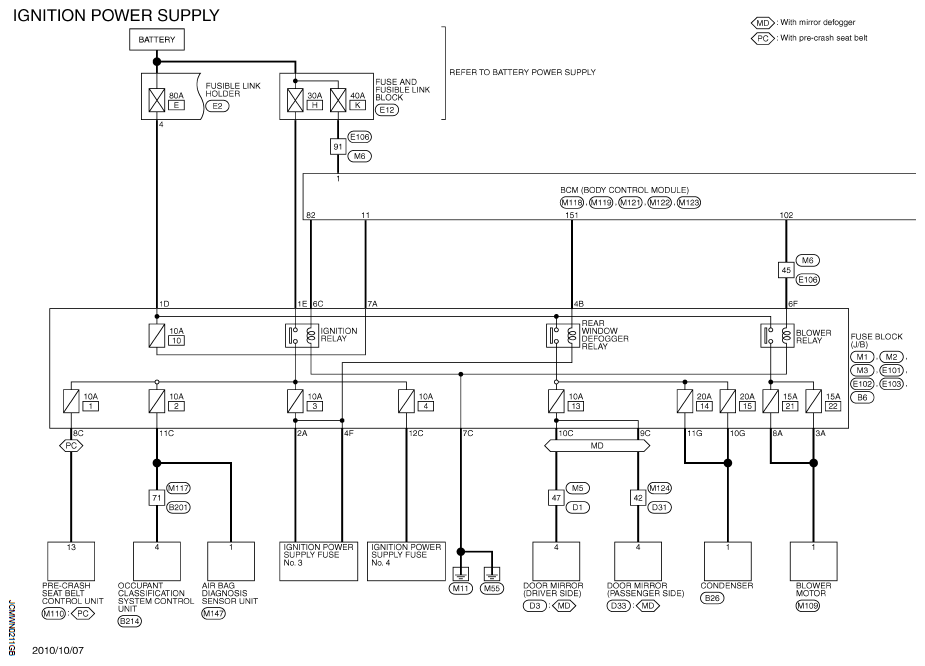

Fig 1: Ignition Power Supply - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

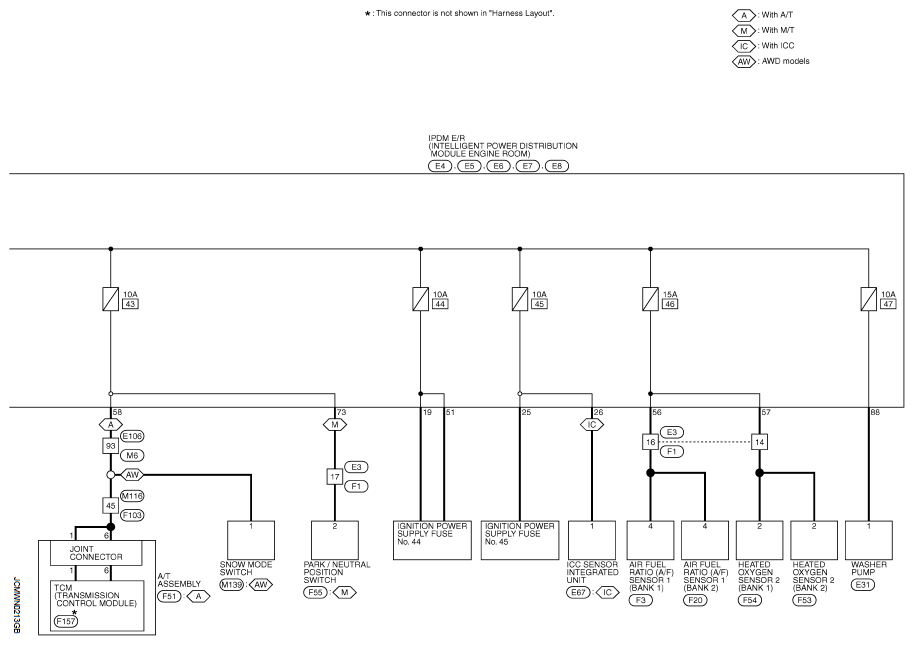

Fig 2: Ignition Power Supply - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Ignition Power Supply - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

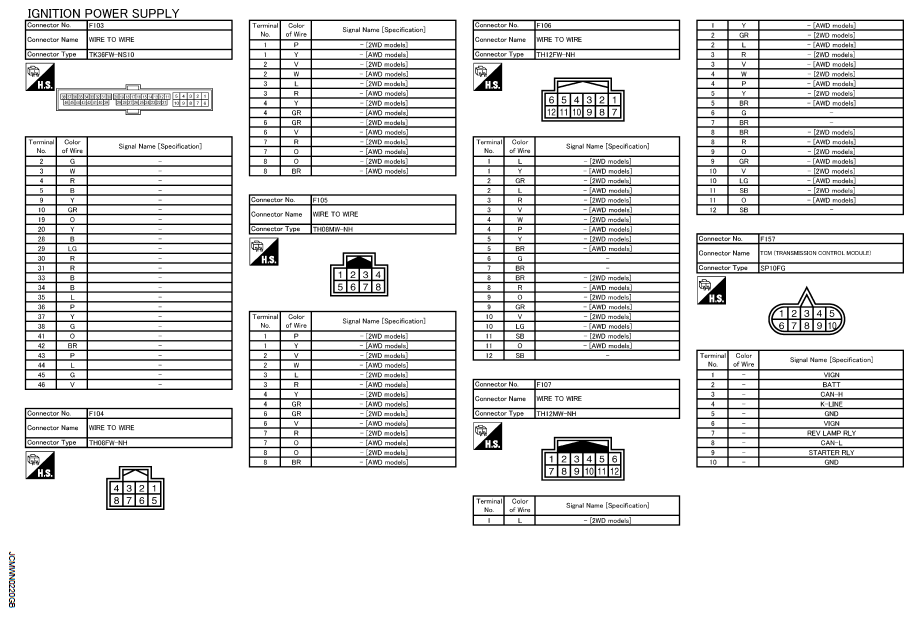

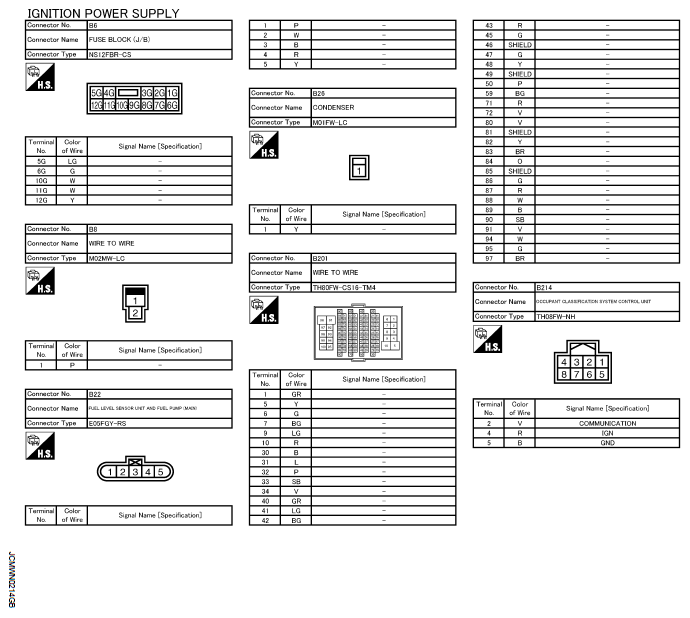

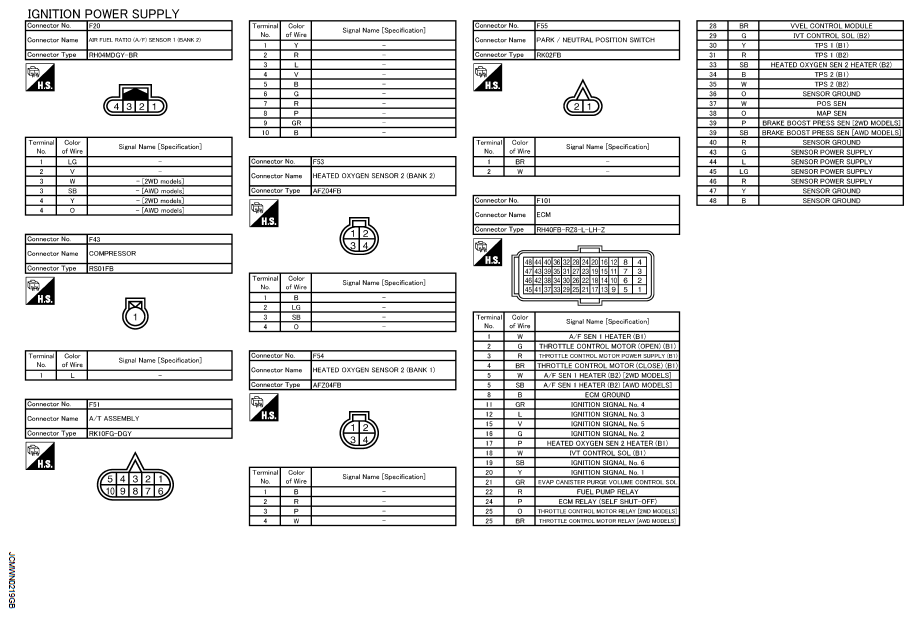

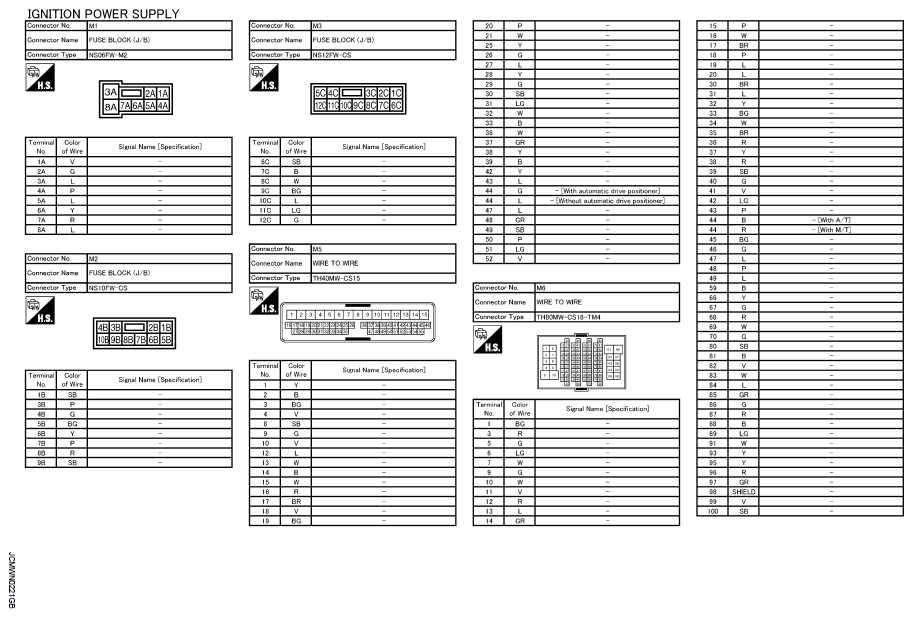

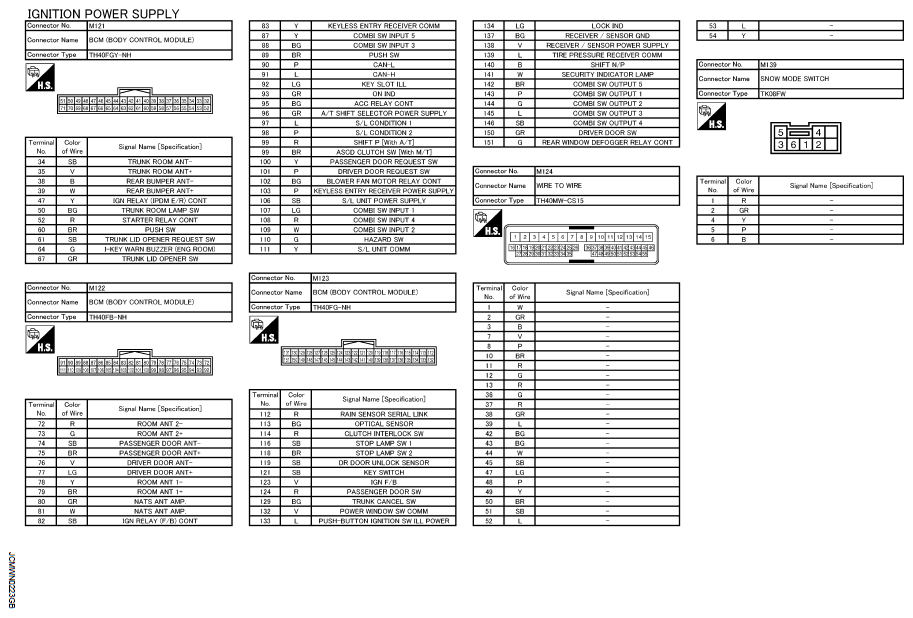

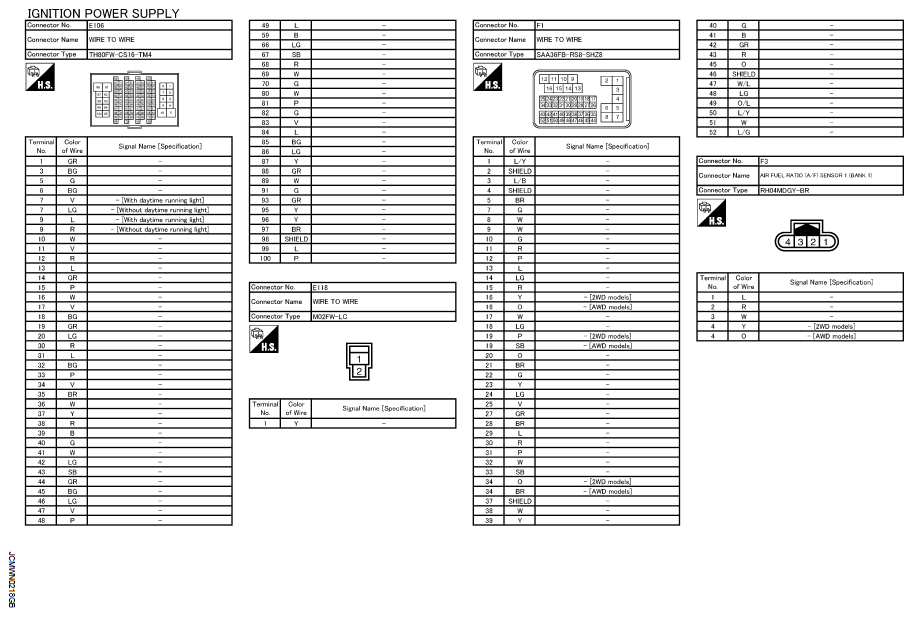

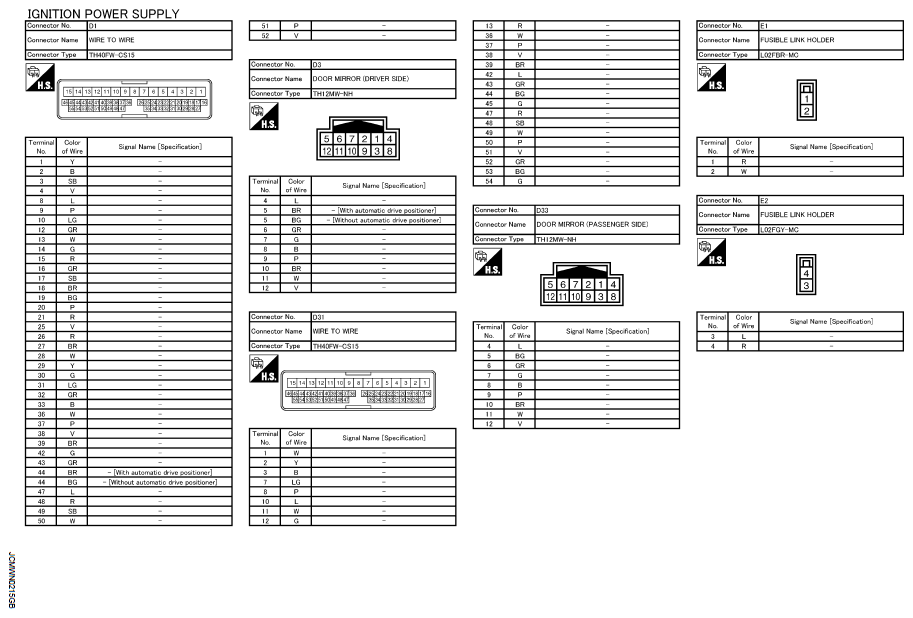

Fig 4: Identifying Ignition Power Supply Connectors Terminal Identification (1 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

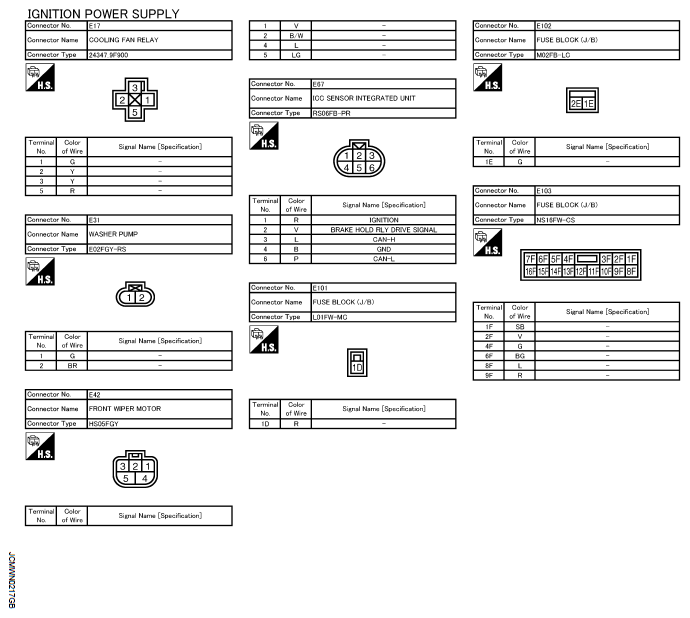

Fig 5: Identifying Ignition Power Supply Connectors Terminal Identification (2 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

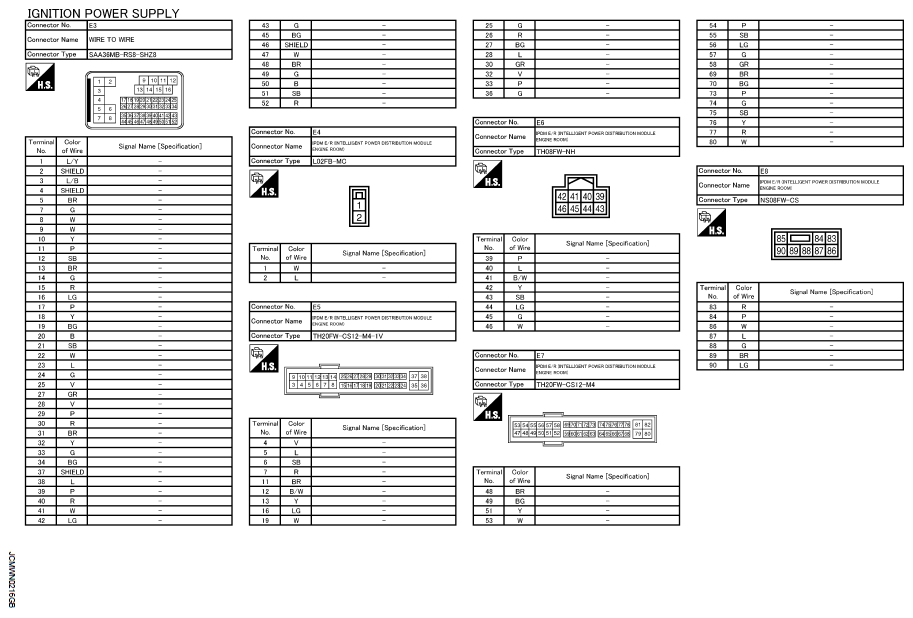

Fig 6: Identifying Ignition Power Supply Connectors Terminal Identification (3 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

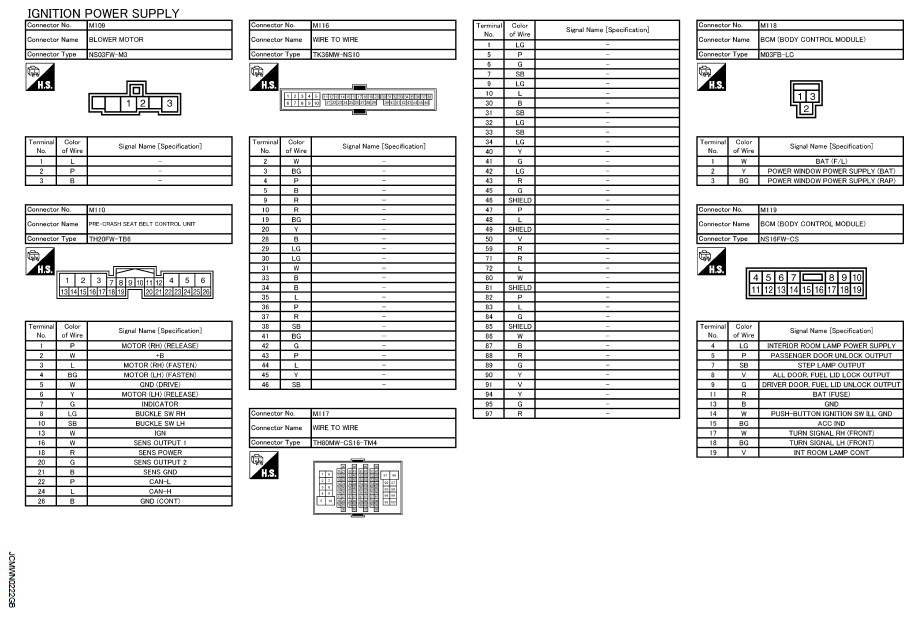

Fig 7: Identifying Ignition Power Supply Connectors Terminal Identification (4 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Ignition Power Supply Connectors Terminal Identification (5 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Ignition Power Supply Connectors Terminal Identification (6 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Ignition Power Supply Connectors Terminal Identification (7 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Ignition Power Supply Connectors Terminal Identification (8 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Ignition Power Supply Connectors Terminal Identification (9 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Ignition Power Supply Connectors Terminal Identification (10 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Ignition Power Supply Connectors Terminal Identification (11 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.
