BATTERY POWER SUPPLY FUSIBLE LINK No. K

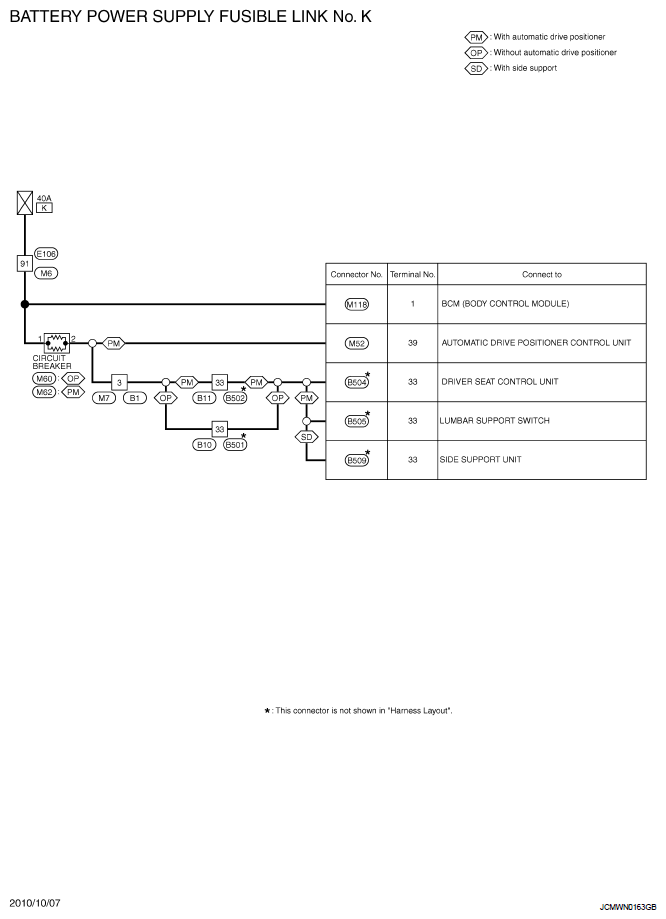

Fig 1: Battery Power Supply Fusible Link No. K - Wiring Diagram
G07172324Courtesy of NISSAN MOTOR CO., U.S.A.

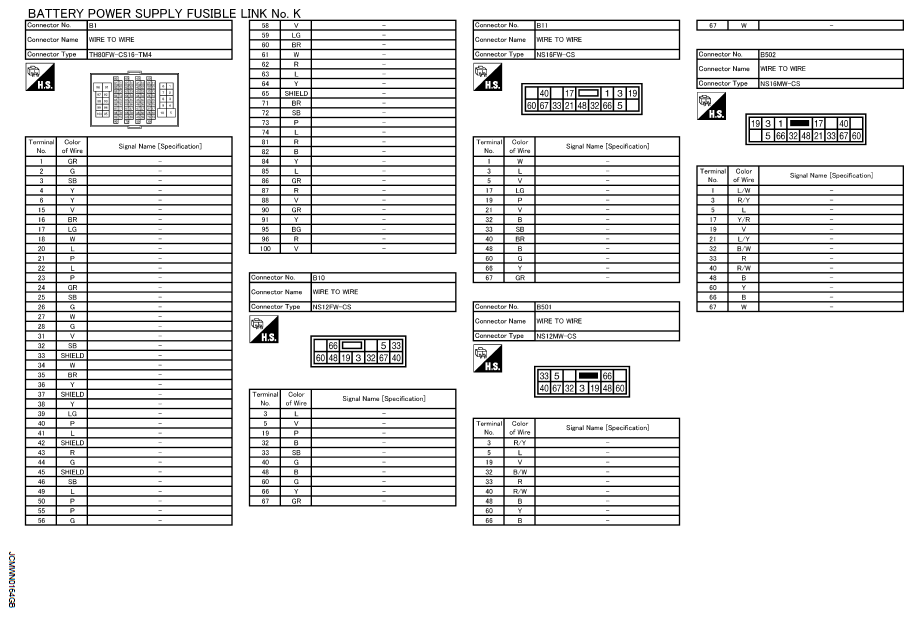

Fig 2: Identifying Battery Power Supply Fusible Link No. K Connectors Terminal Identification (1 Of 4)
G07172325Courtesy of NISSAN MOTOR CO., U.S.A.

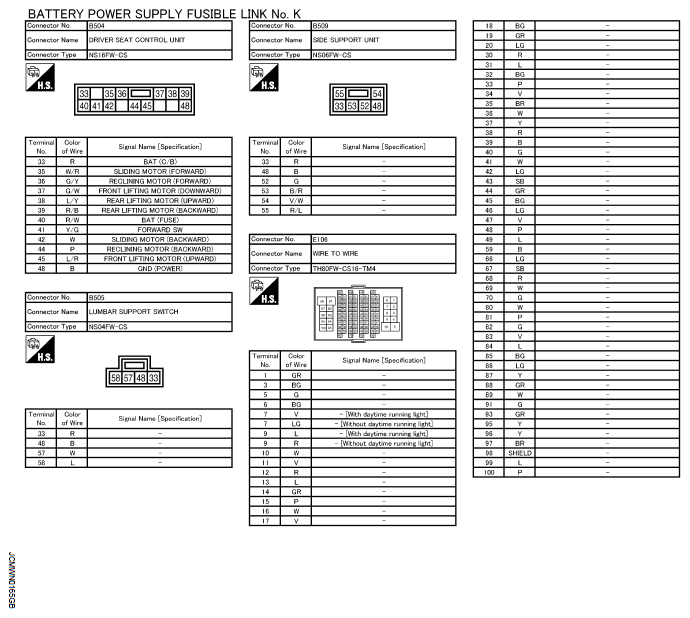

Fig 3: Identifying Battery Power Supply Fusible Link No. K Connectors Terminal Identification (2 Of 4)
G07172326Courtesy of NISSAN MOTOR CO., U.S.A.

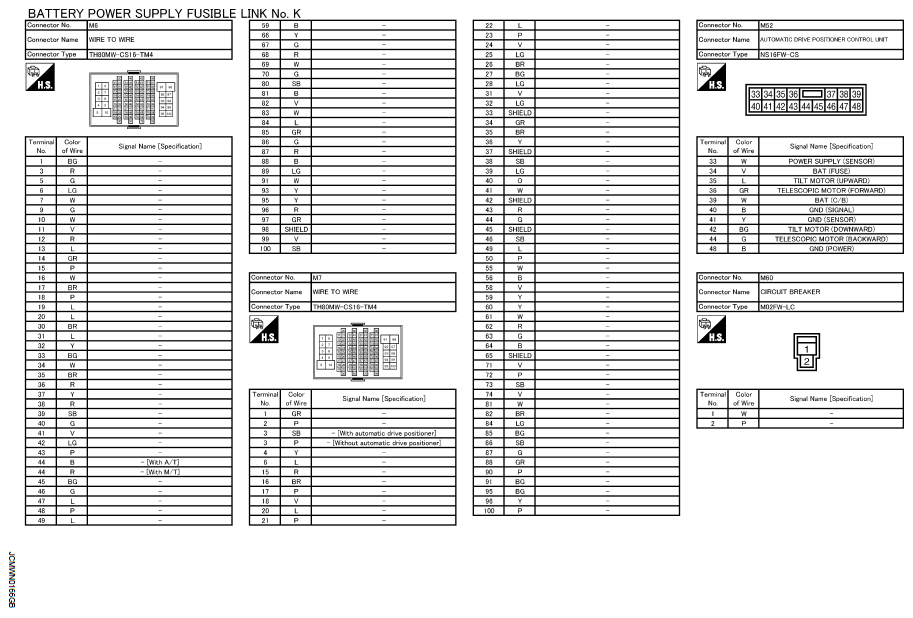

Fig 4: Identifying Battery Power Supply Fusible Link No. K Connectors Terminal Identification (3 Of 4)
G07172327Courtesy of NISSAN MOTOR CO., U.S.A.

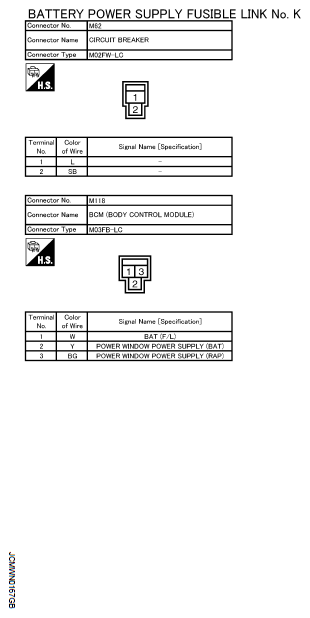

Fig 5: Identifying Battery Power Supply Fusible Link No. K Connectors Terminal Identification (4 Of 4)
G07172328Courtesy of NISSAN MOTOR CO., U.S.A.
