BATTERY POWER SUPPLY FUSE No. 7

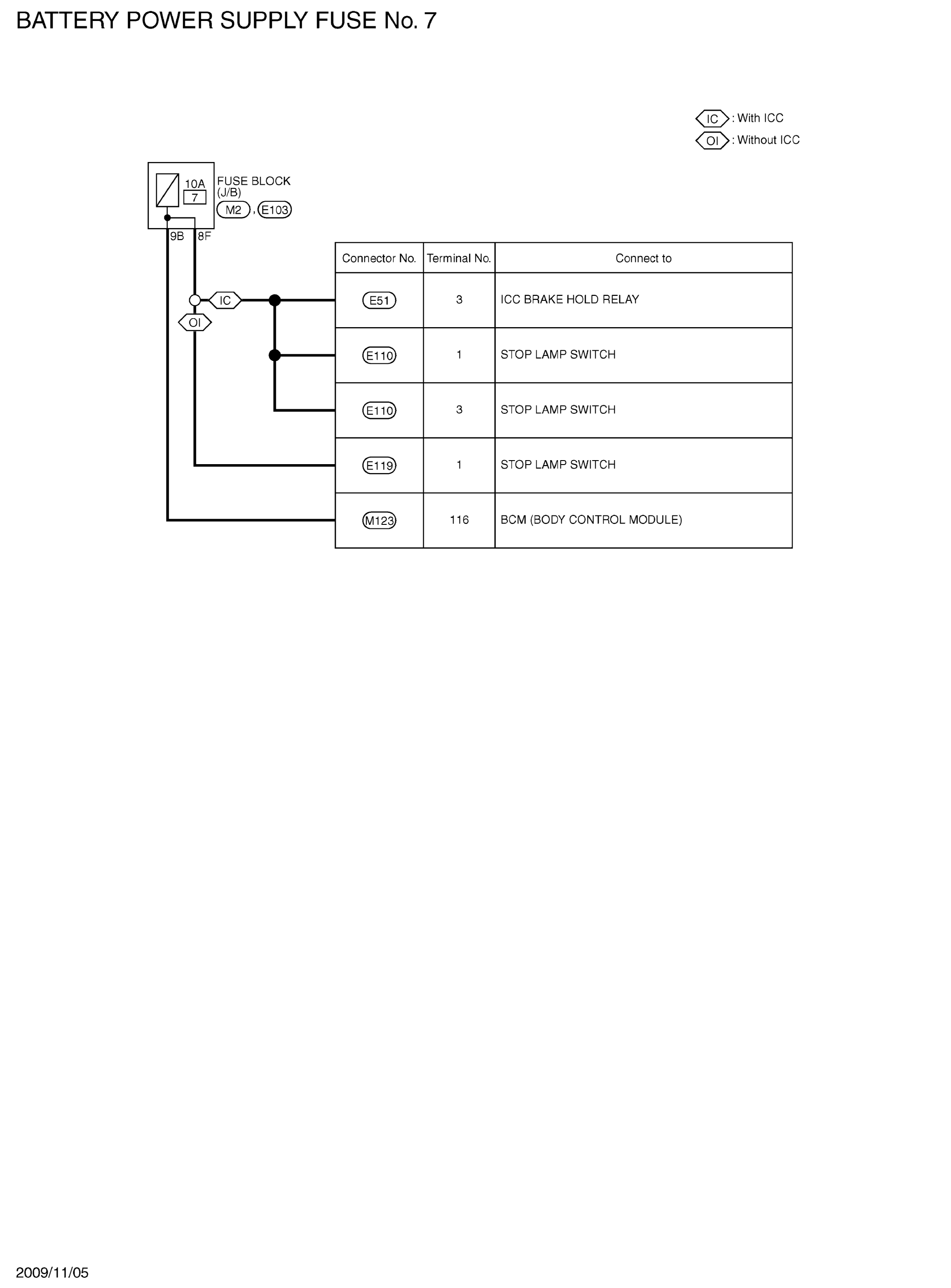

Fig 1: Battery Power Supply Fuse No. 7 - Wiring Diagram
G06626899Courtesy of NISSAN MOTOR CO., U.S.A.

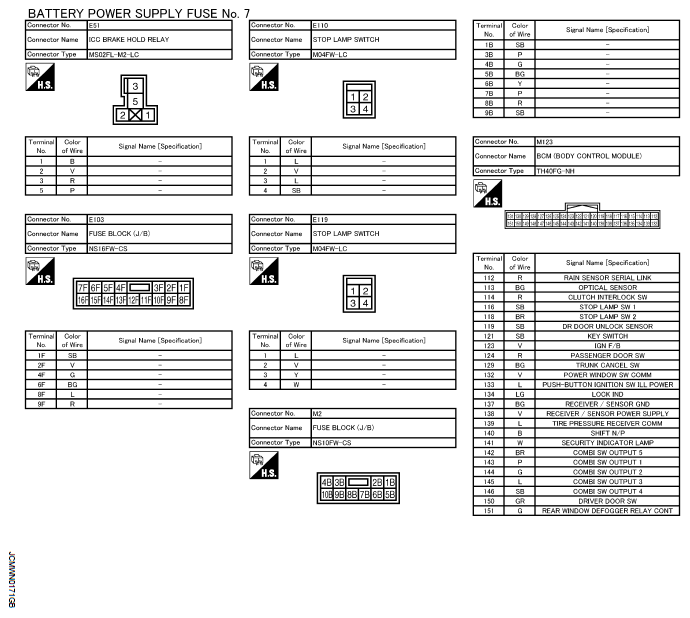

Fig 2: Identifying Battery Power Supply Fuse No. 7 Connectors Terminal Identification
G07172333Courtesy of NISSAN MOTOR CO., U.S.A.
