BATTERY POWER SUPPLY FUSE No. 53

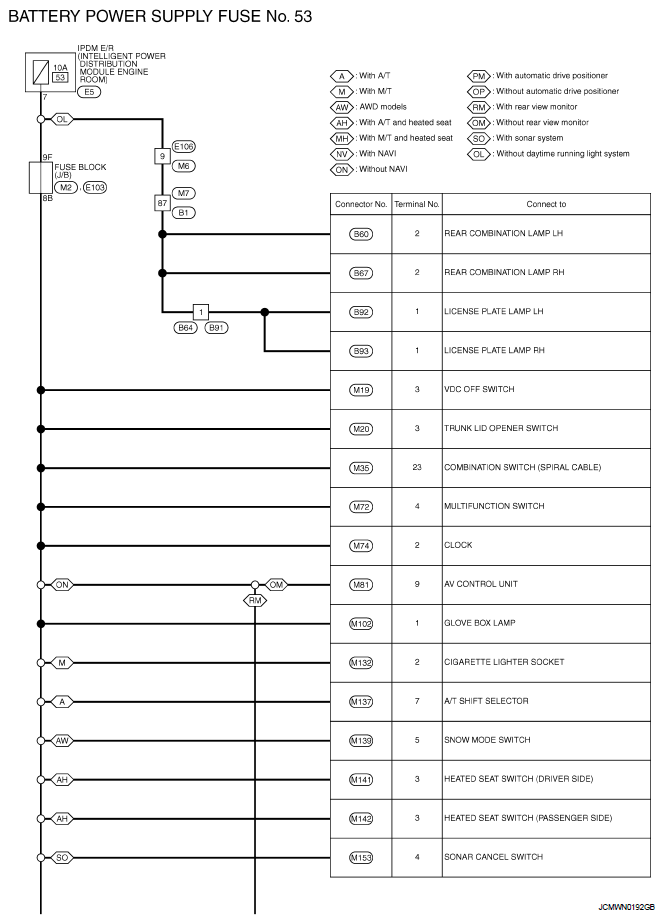

Fig 1: Battery Power Supply Fuse No. 53 - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

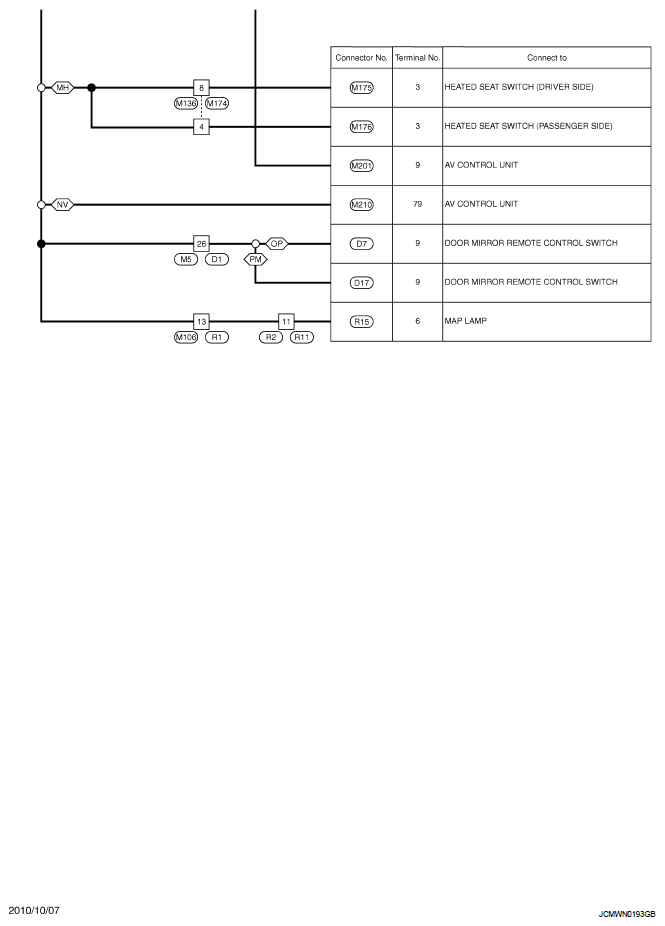

Fig 2: Battery Power Supply Fuse No. 53 - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

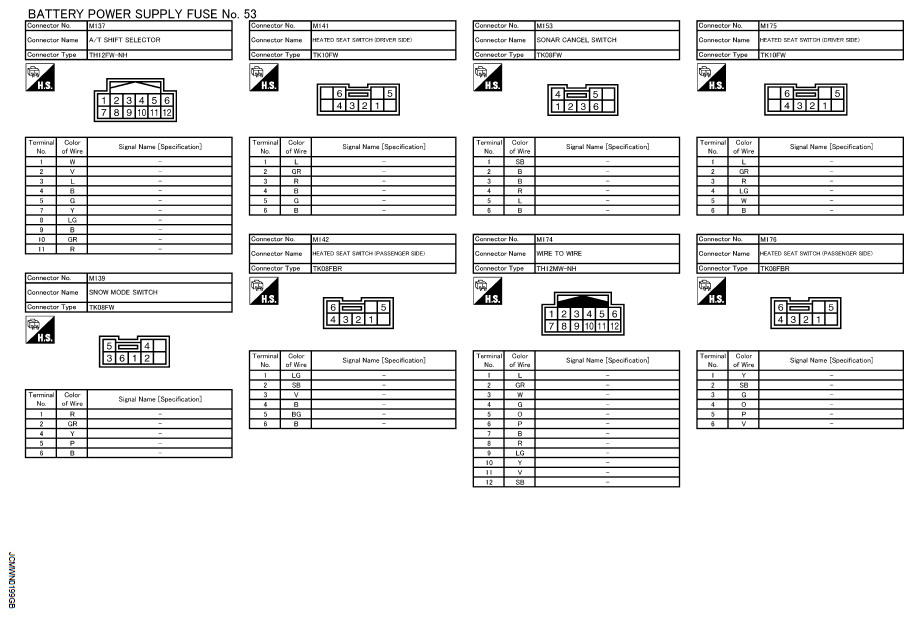

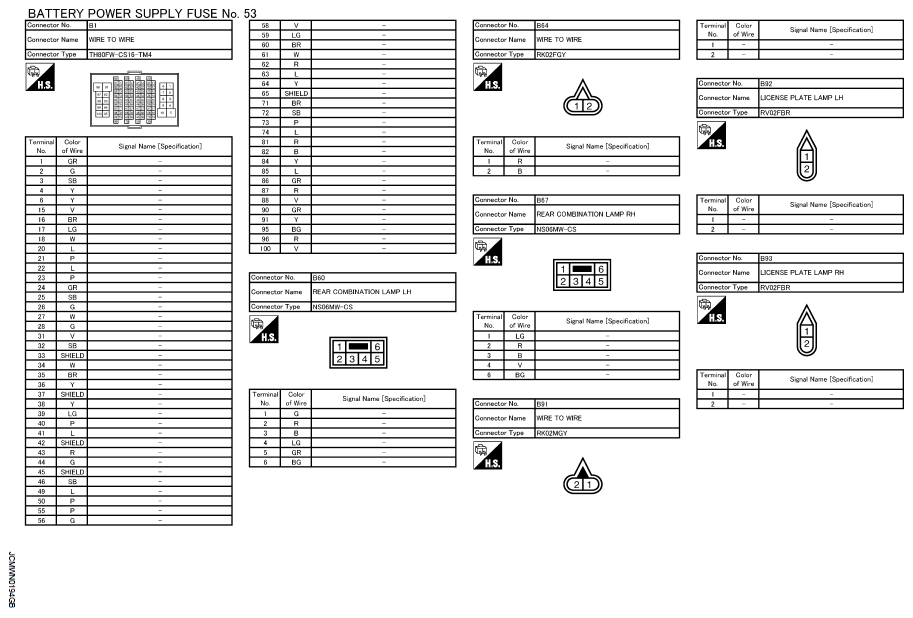

Fig 3: Identifying Battery Power Supply Fuse No. 53 Connectors Terminal Identification (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

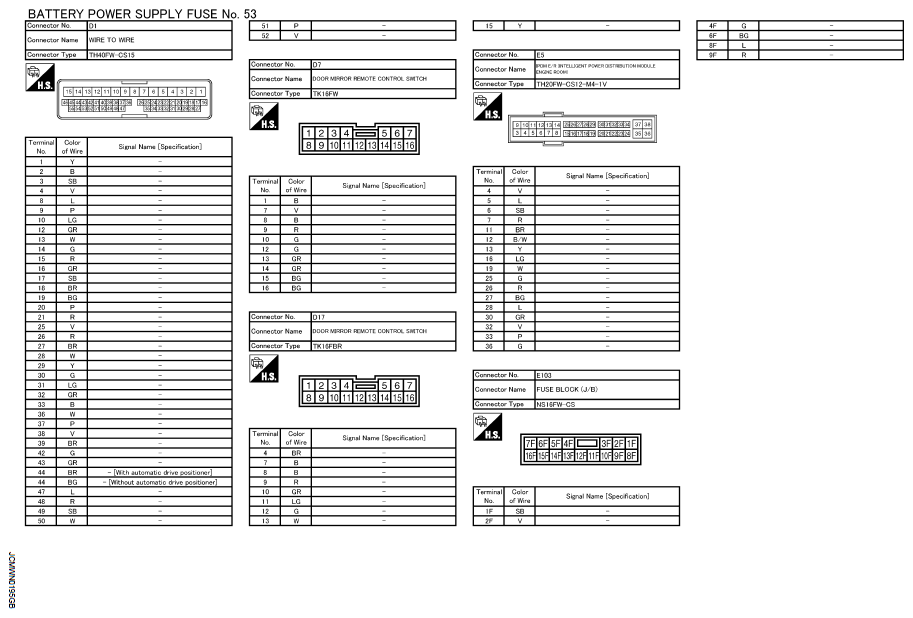

Fig 4: Identifying Battery Power Supply Fuse No. 53 Connectors Terminal Identification (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

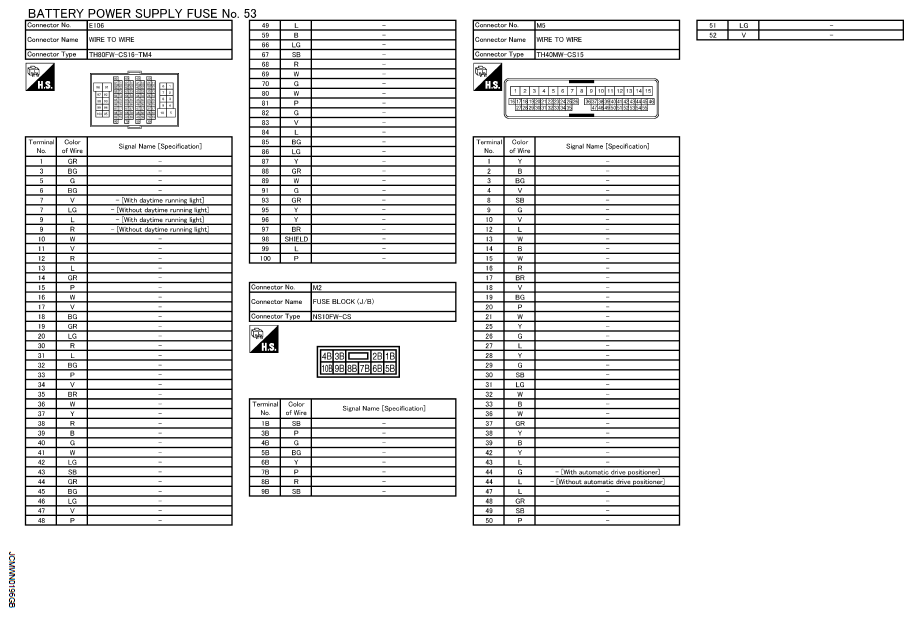

Fig 5: Identifying Battery Power Supply Fuse No. 53 Connectors Terminal Identification (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

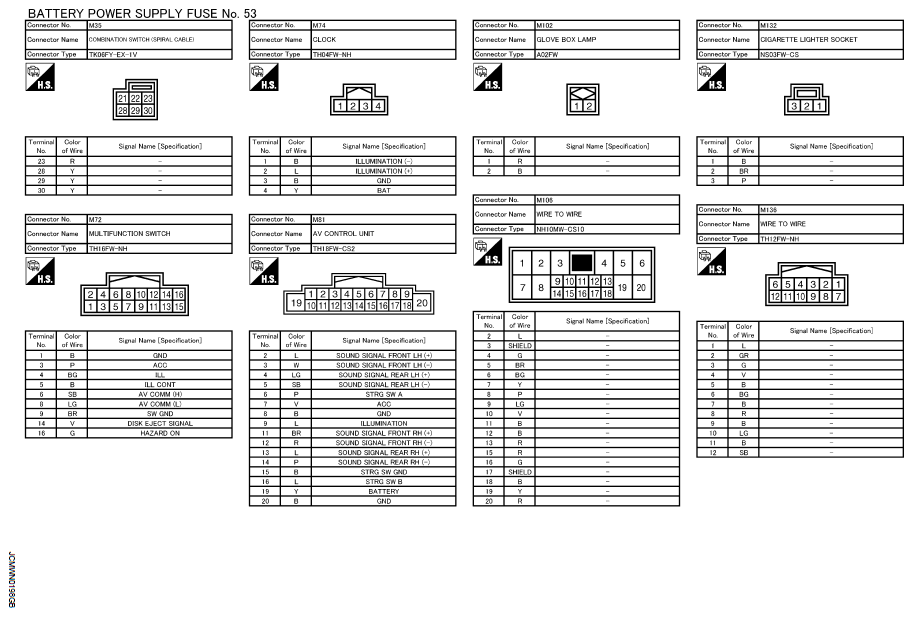

Fig 6: Identifying Battery Power Supply Fuse No. 53 Connectors Terminal Identification (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

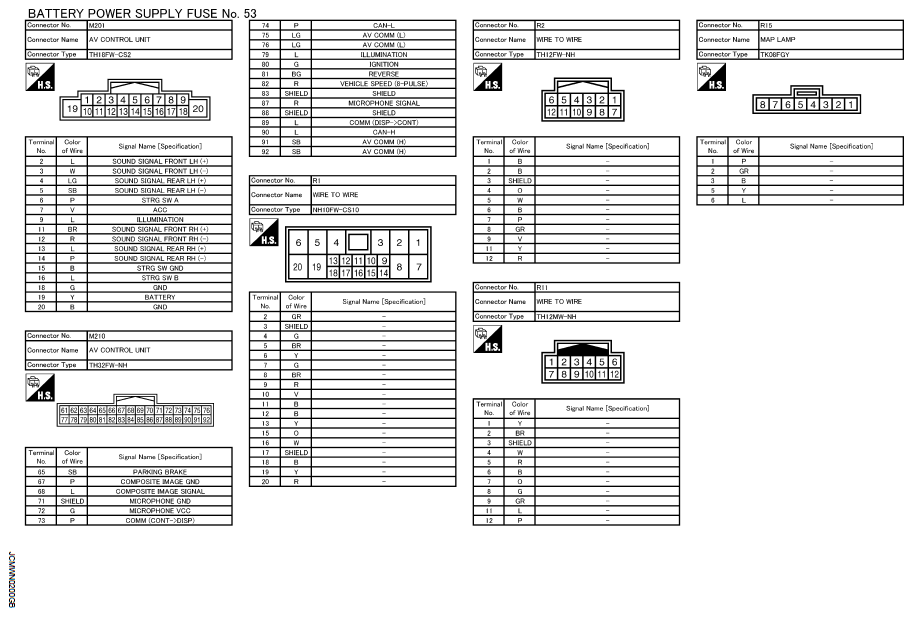

Fig 7: Identifying Battery Power Supply Fuse No. 53 Connectors Terminal Identification (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

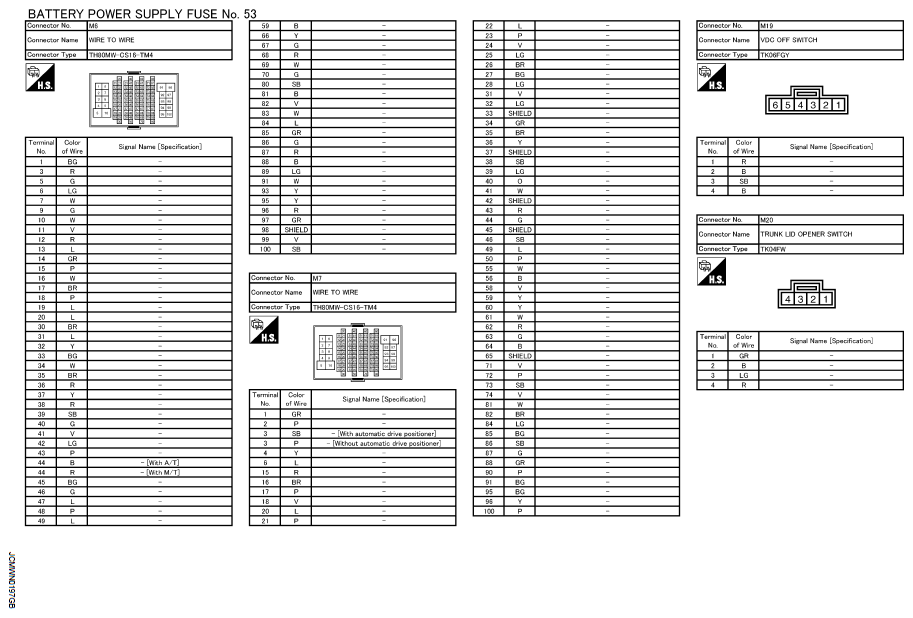

Fig 8: Identifying Battery Power Supply Fuse No. 53 Connectors Terminal Identification (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Battery Power Supply Fuse No. 53 Connectors Terminal Identification (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
