BATTERY POWER SUPPLY FUSE No. 11

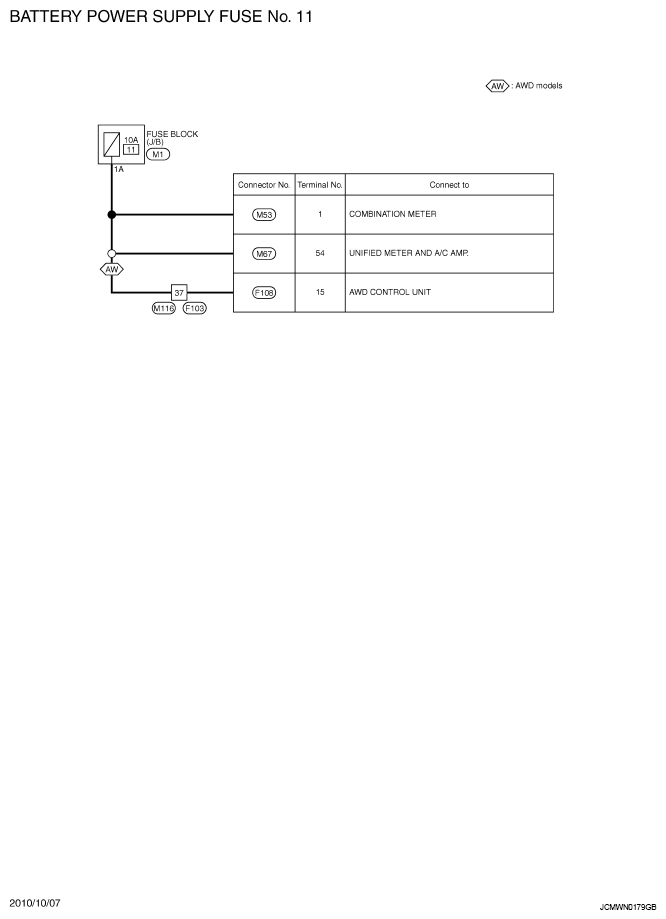

Fig 1: Battery Power Supply Fuse No. 11 - Wiring Diagram
G07172342Courtesy of NISSAN MOTOR CO., U.S.A.

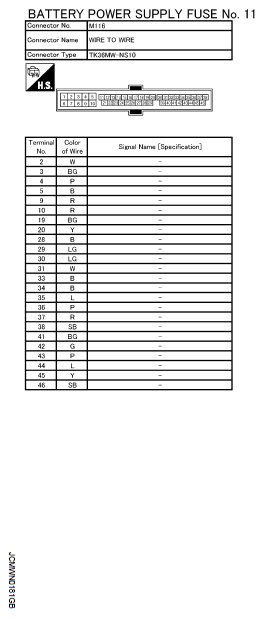

Fig 2: Identifying Battery Power Supply Fuse No. 11 Connectors Terminal Identification (1 Of 2)
G07172343Courtesy of NISSAN MOTOR CO., U.S.A.

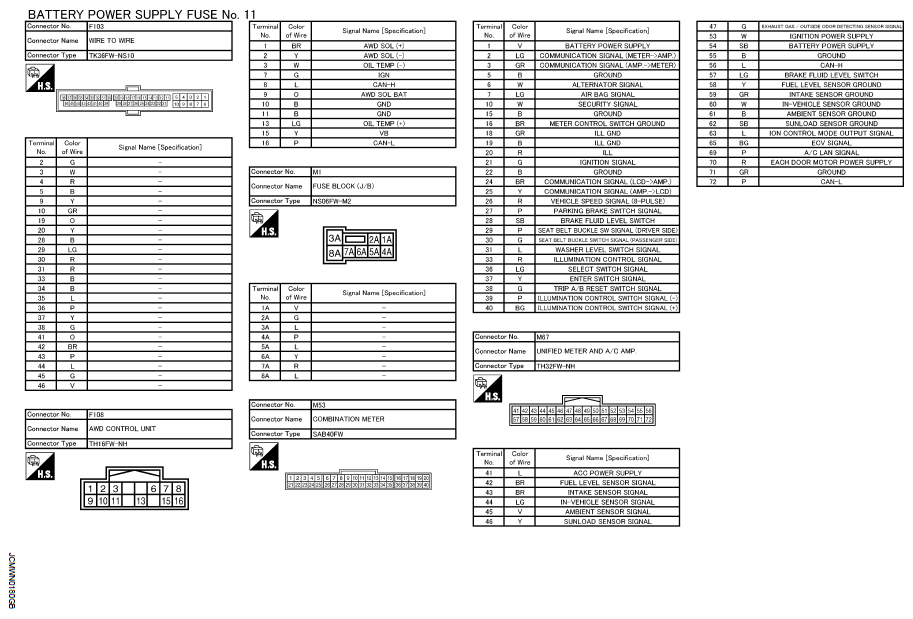

Fig 3: Identifying Battery Power Supply Fuse No. 11 Connectors Terminal Identification (2 Of 2)
G07172344Courtesy of NISSAN MOTOR CO., U.S.A.
