Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 10 -
>>
BATTERY POWER SUPPLY FUSE No. 10
BATTERY POWER SUPPLY FUSE No. 10

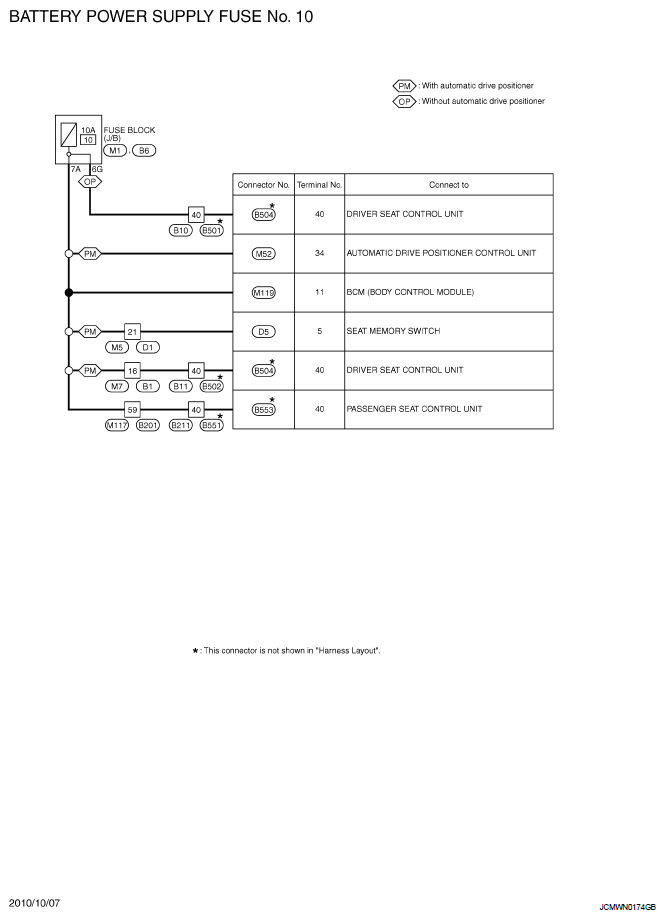

Fig 1: Battery Power Supply Fuse No. 10 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

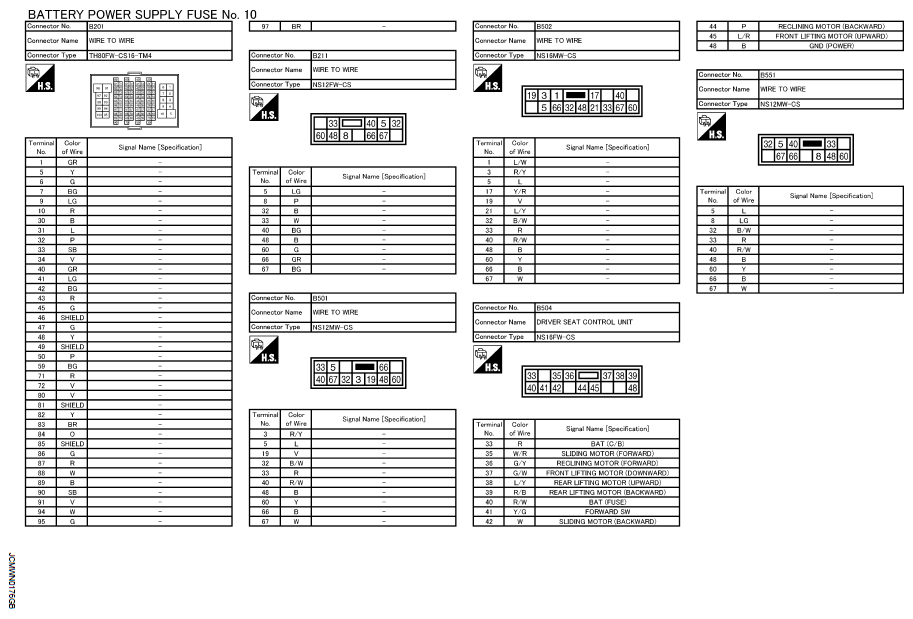

Fig 2: Identifying Battery Power Supply Fuse No. 10 Connectors Terminal Identification (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

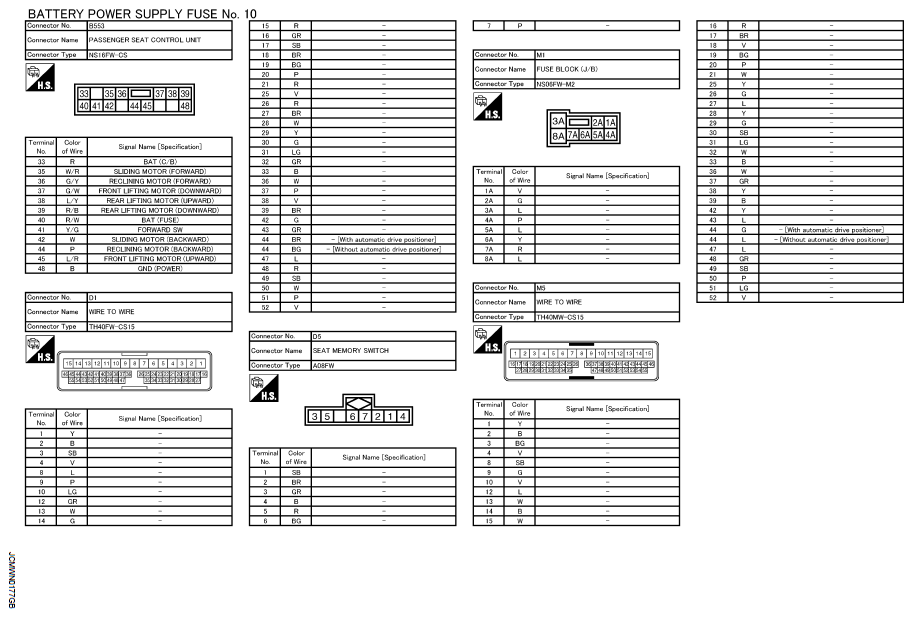

Fig 3: Identifying Battery Power Supply Fuse No. 10 Connectors Terminal Identification (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

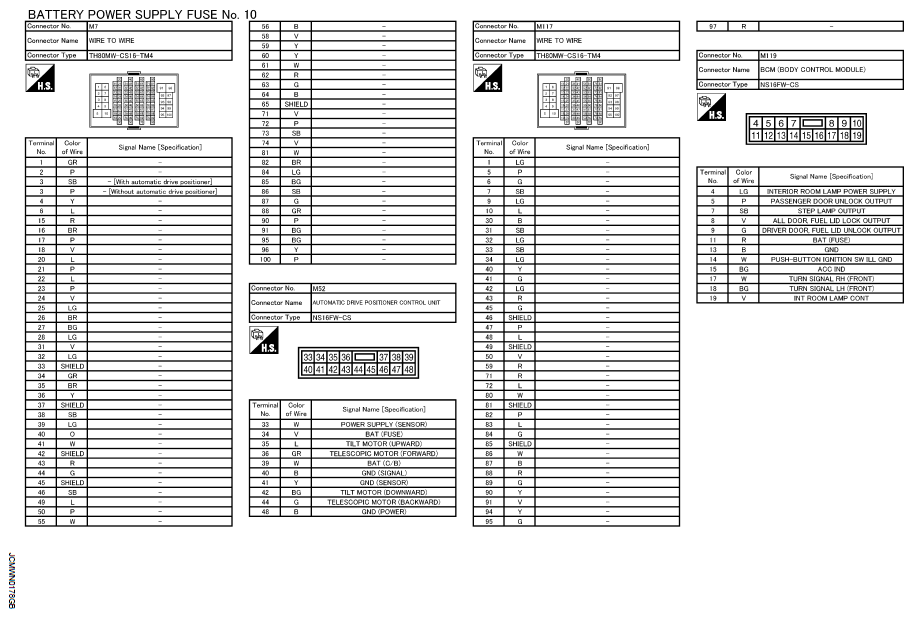

Fig 4: Identifying Battery Power Supply Fuse No. 10 Connectors Terminal Identification (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

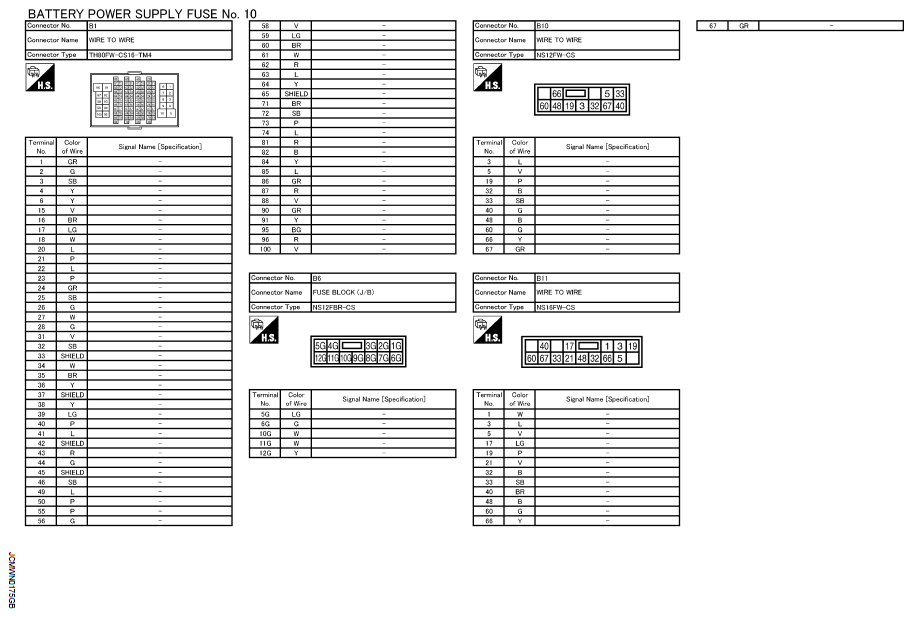

Fig 5: Identifying Battery Power Supply Fuse No. 10 Connectors Terminal Identification (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
