Wiring Diagram - BATTERY POWER SUPPLY -

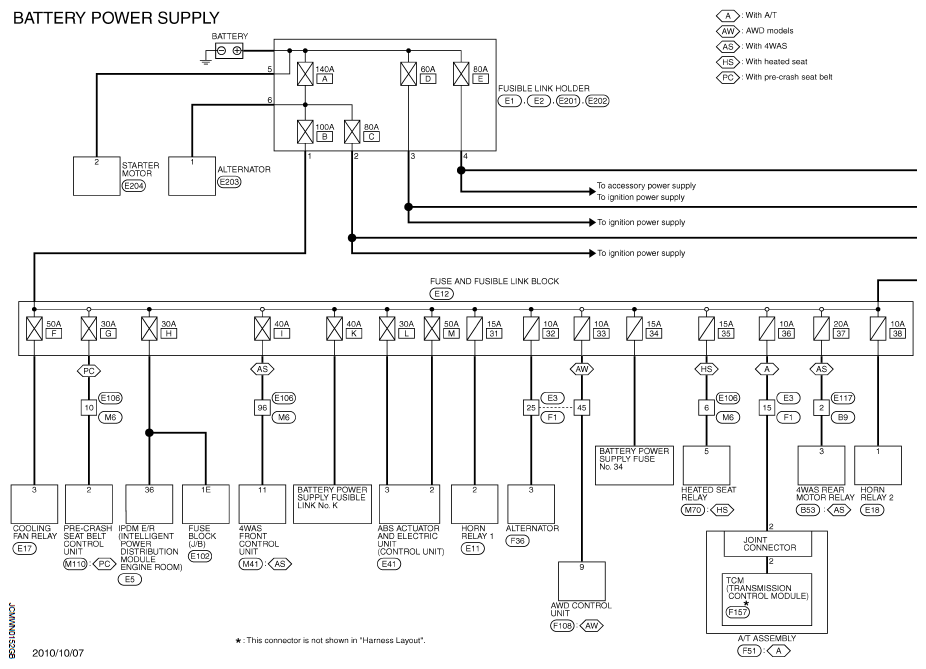

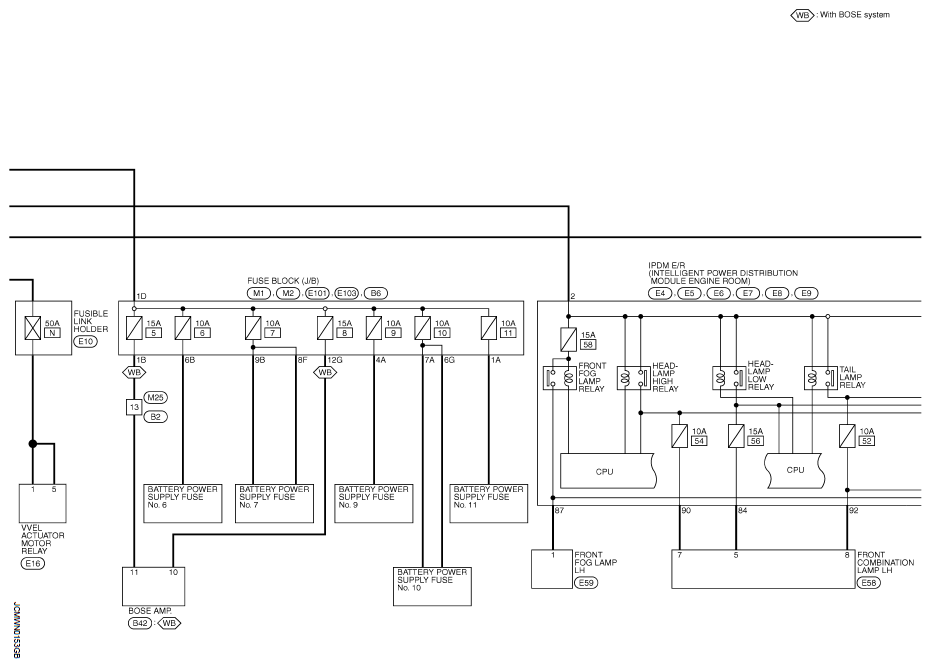

Fig 1: Battery Power Supply - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Battery Power Supply - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

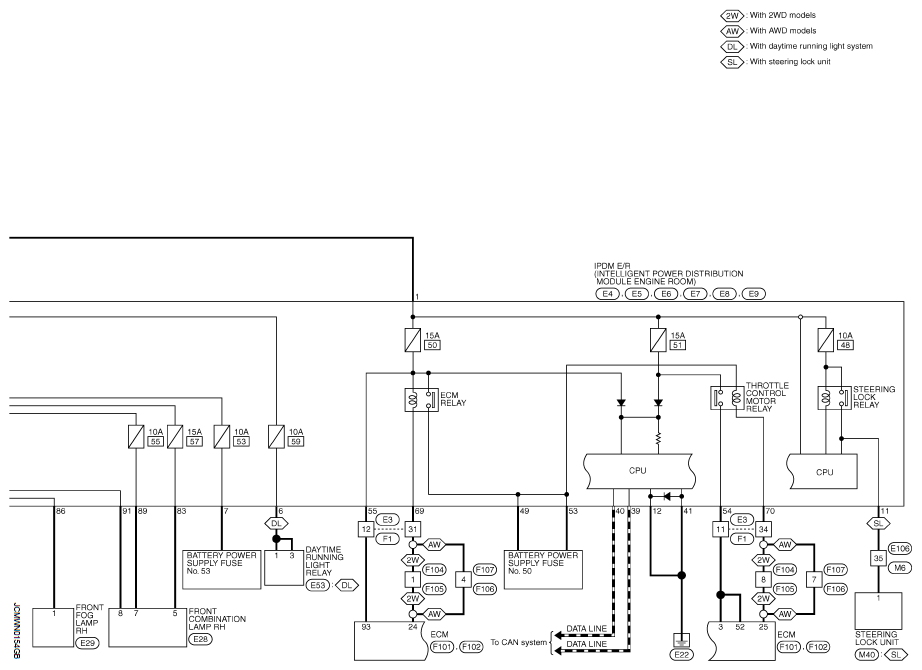

Fig 3: Battery Power Supply - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

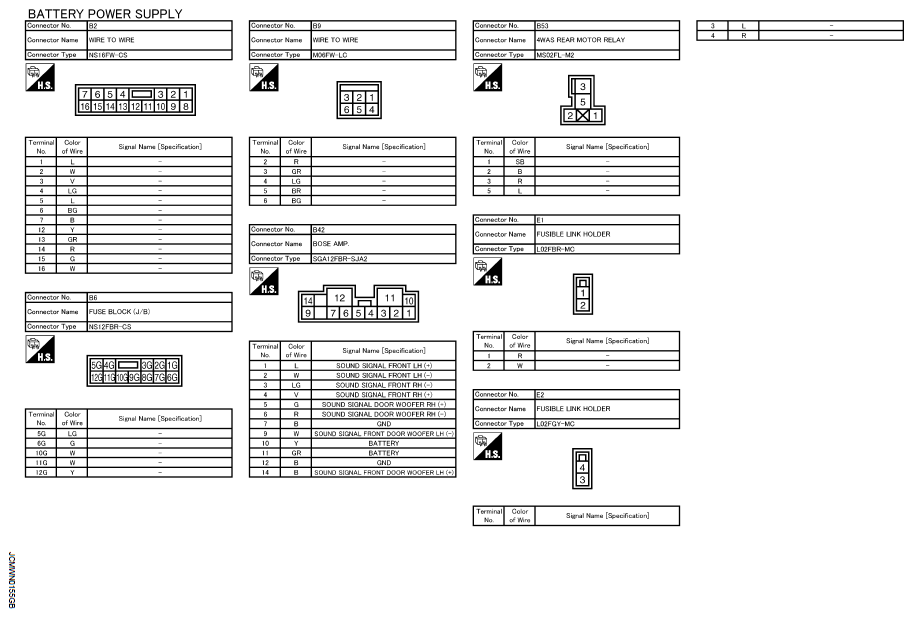

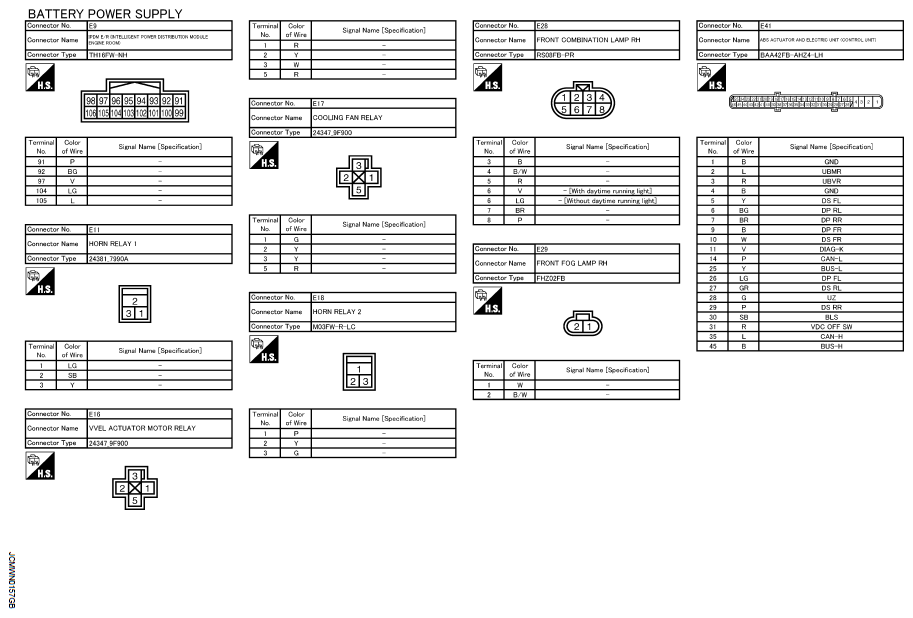

Fig 4: Identifying Battery Power Supply Connectors Terminal Identification (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

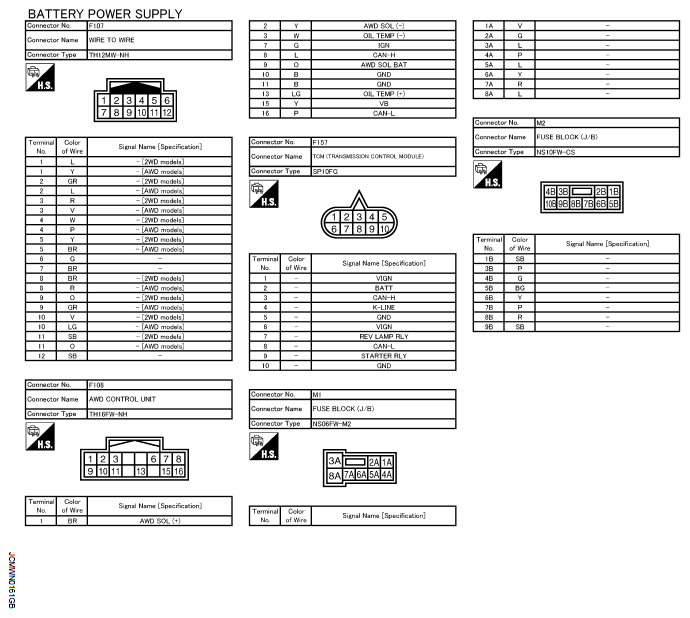

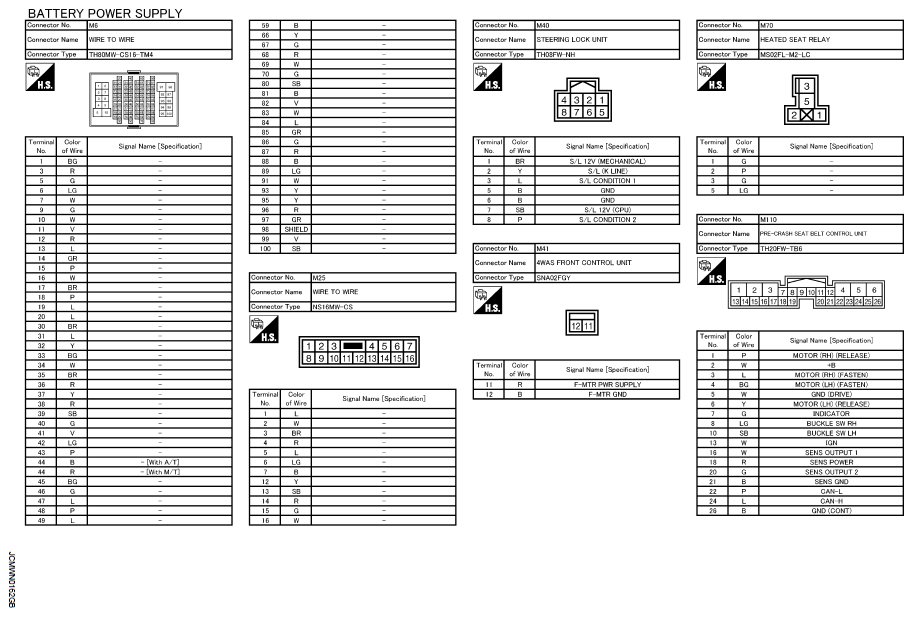

Fig 5: Identifying Battery Power Supply Connectors Terminal Identification (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

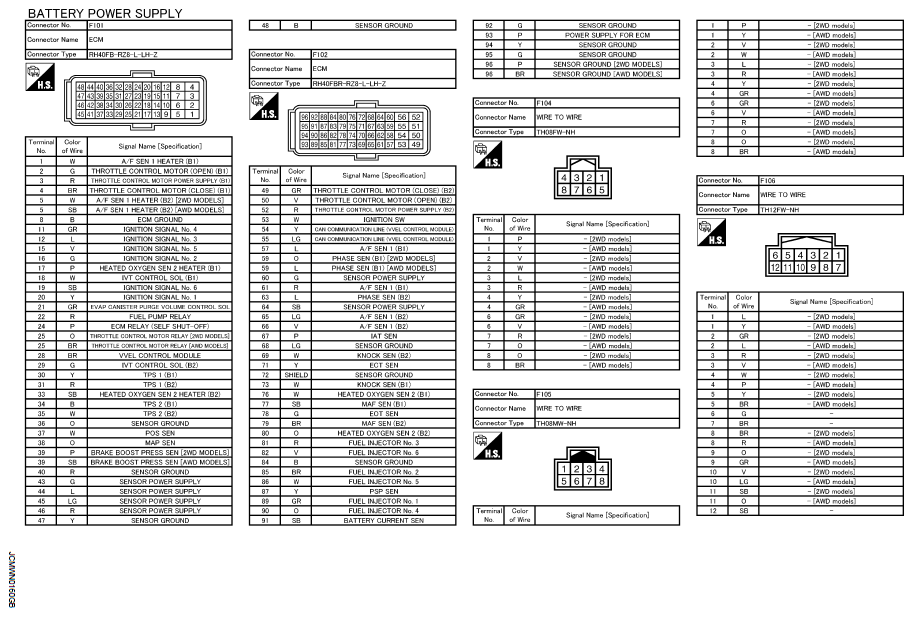

Fig 6: Identifying Battery Power Supply Connectors Terminal Identification (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

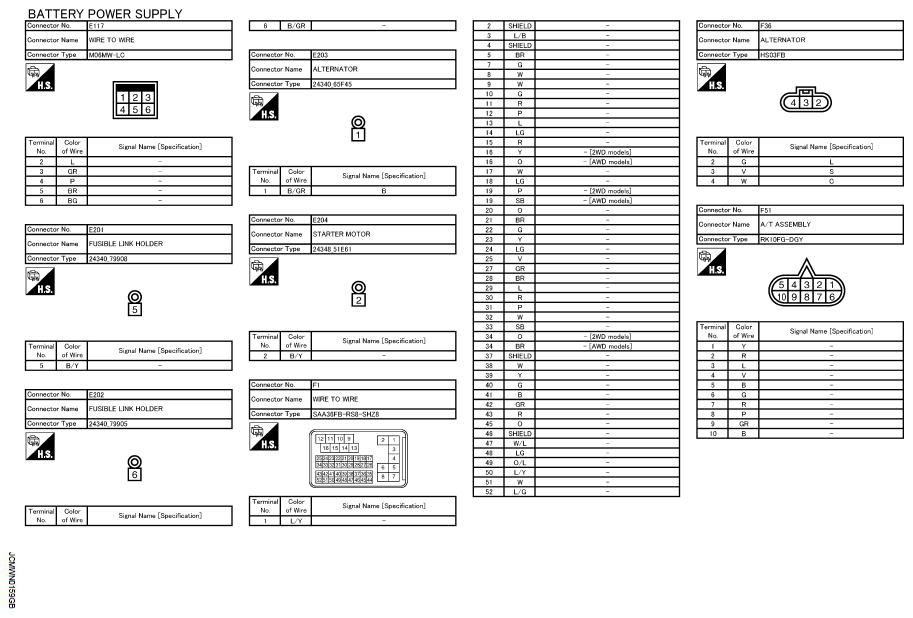

Fig 7: Identifying Battery Power Supply Connectors Terminal Identification (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

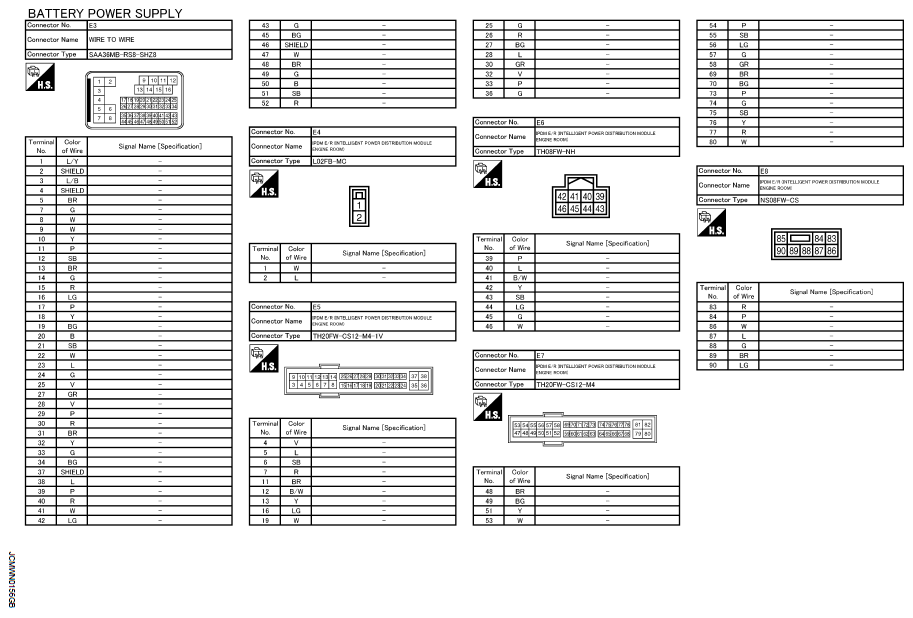

Fig 8: Identifying Battery Power Supply Connectors Terminal Identification (5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

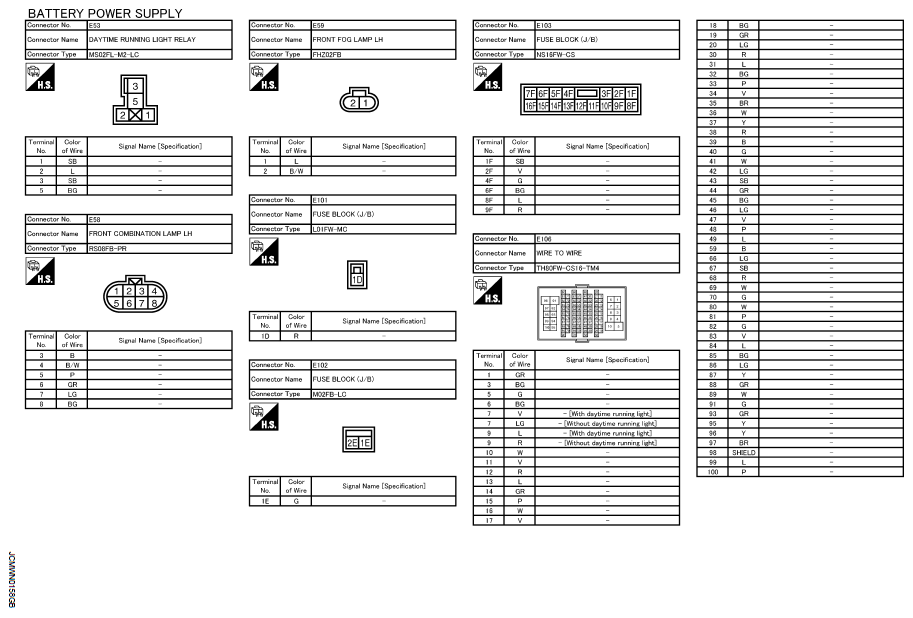

Fig 9: Identifying Battery Power Supply Connectors Terminal Identification (6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Battery Power Supply Connectors Terminal Identification (7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Battery Power Supply Connectors Terminal Identification (8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
