G37 IPL, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Power Supply, Ground & Circuit Elements -- Coupe
>>
DTC/Circuit Diagnosis
>>
Power Supply Routing Circuit
>>
Wiring Diagram - ACCESSORY POWER SUPPLY FUSE No. 19 -
>>
ACCESSORY POWER SUPPLY FUSE No. 19
ACCESSORY POWER SUPPLY FUSE No. 19

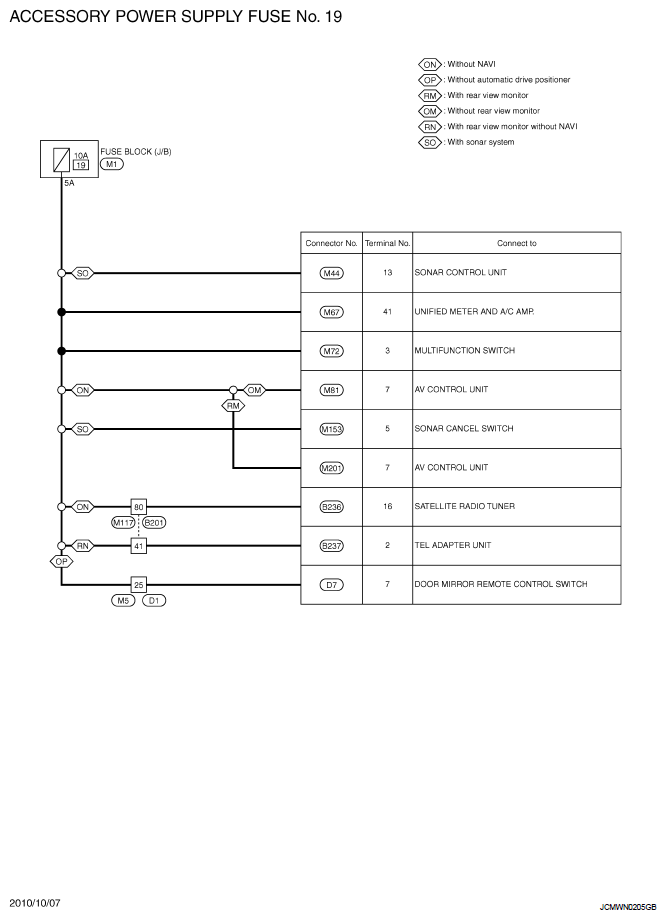

Fig 1: Accessory Power Supply Fuse No. 19 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

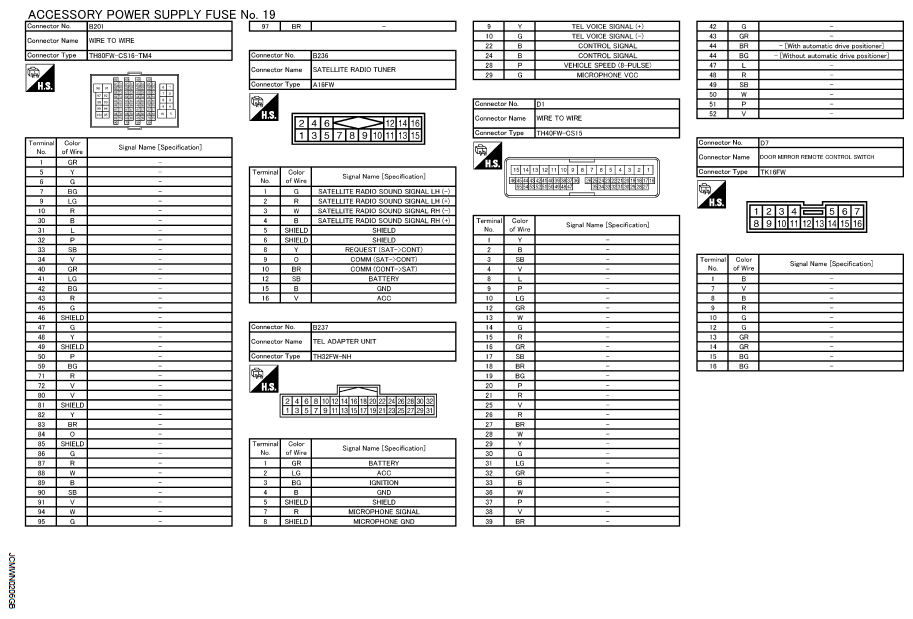

Fig 2: Identifying Accessory Power Supply Fuse No. 19 Connectors Terminal Identification (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

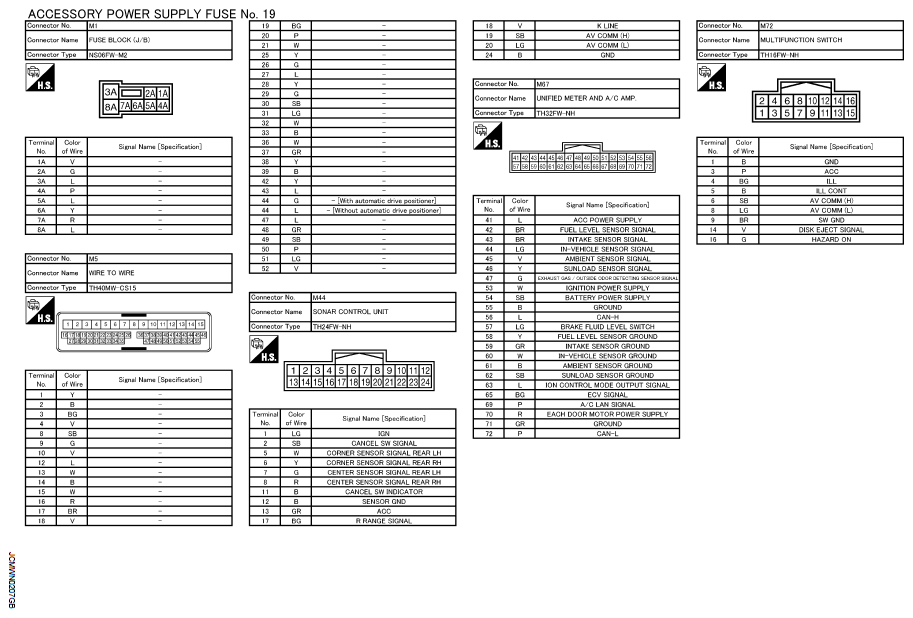

Fig 3: Identifying Accessory Power Supply Fuse No. 19 Connectors Terminal Identification (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

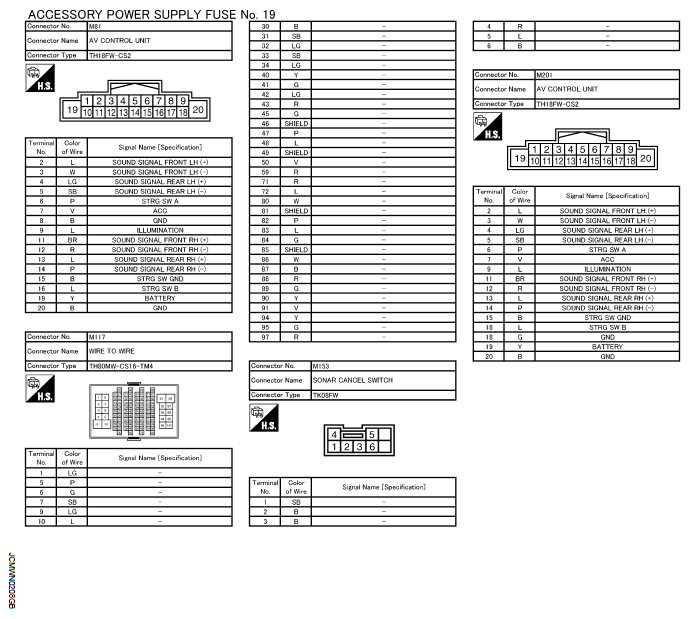

Fig 4: Identifying Accessory Power Supply Fuse No. 19 Connectors Terminal Identification (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
