Accessory Power Supply

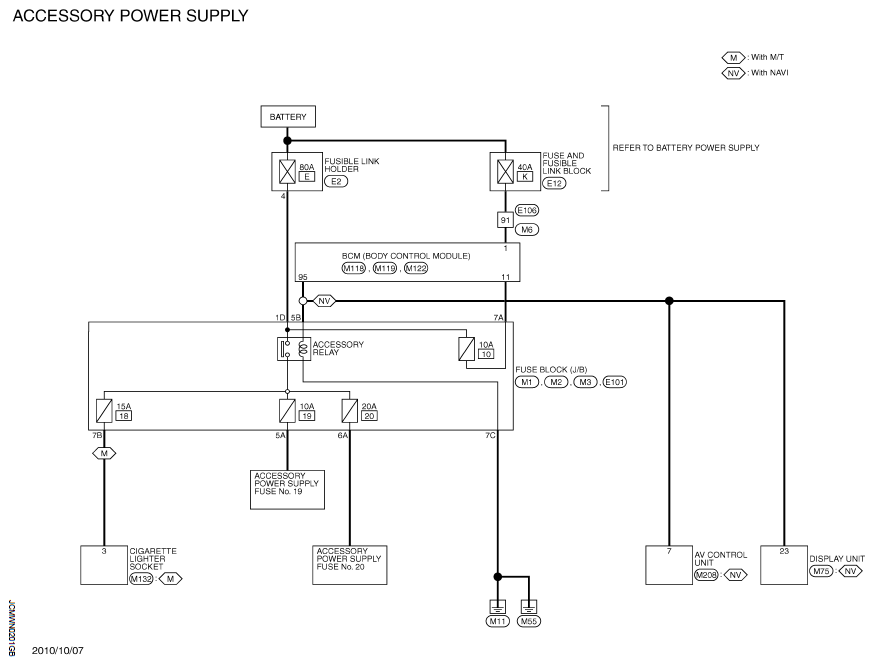

Fig 1: Accessory Power Supply - Wiring Diagram
G07172364Courtesy of NISSAN MOTOR CO., U.S.A.

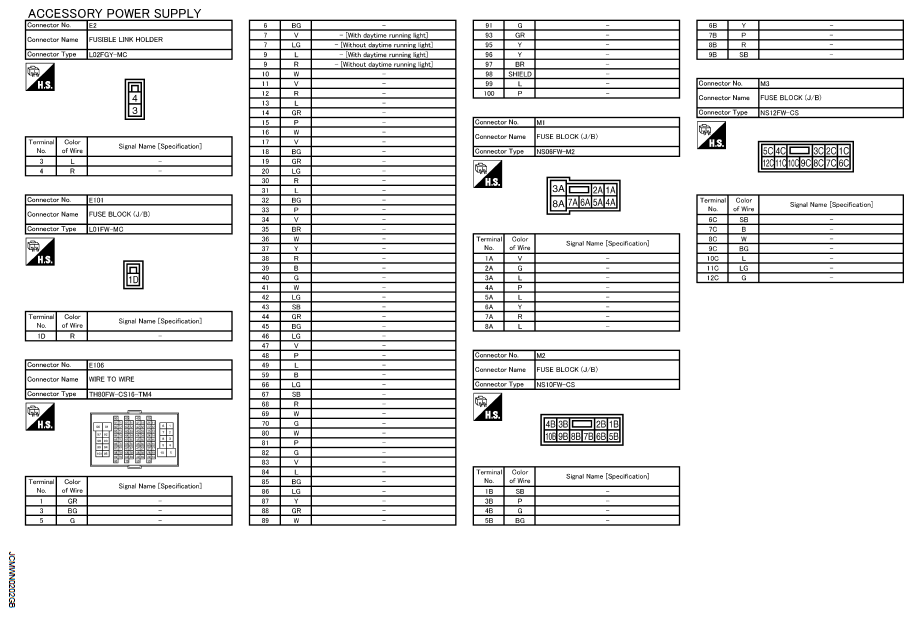

Fig 2: Identifying Accessory Power Supply Connectors Terminal Identification (1 Of 3)
G07172365Courtesy of NISSAN MOTOR CO., U.S.A.

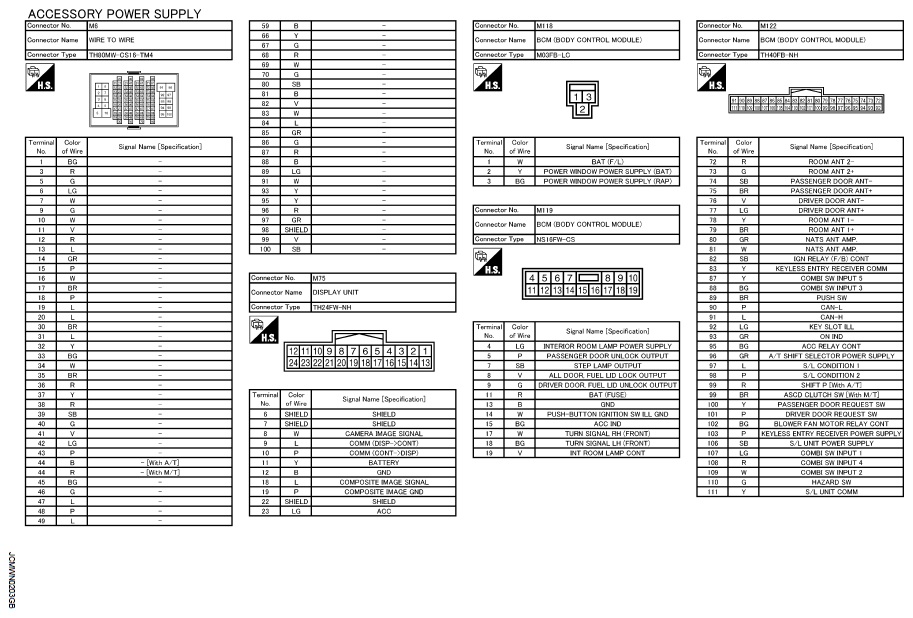

Fig 3: Identifying Accessory Power Supply Connectors Terminal Identification (2 Of 3)
G07172366Courtesy of NISSAN MOTOR CO., U.S.A.

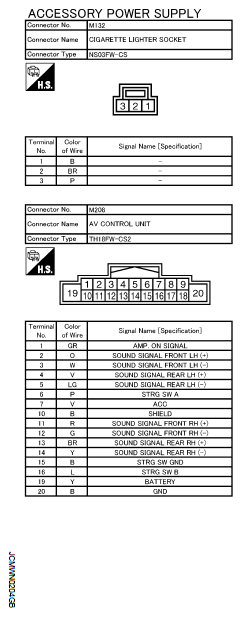

Fig 4: Identifying Accessory Power Supply Connectors Terminal Identification (3 Of 3)
G07172367Courtesy of NISSAN MOTOR CO., U.S.A.
