Wiring Diagram - HORN -

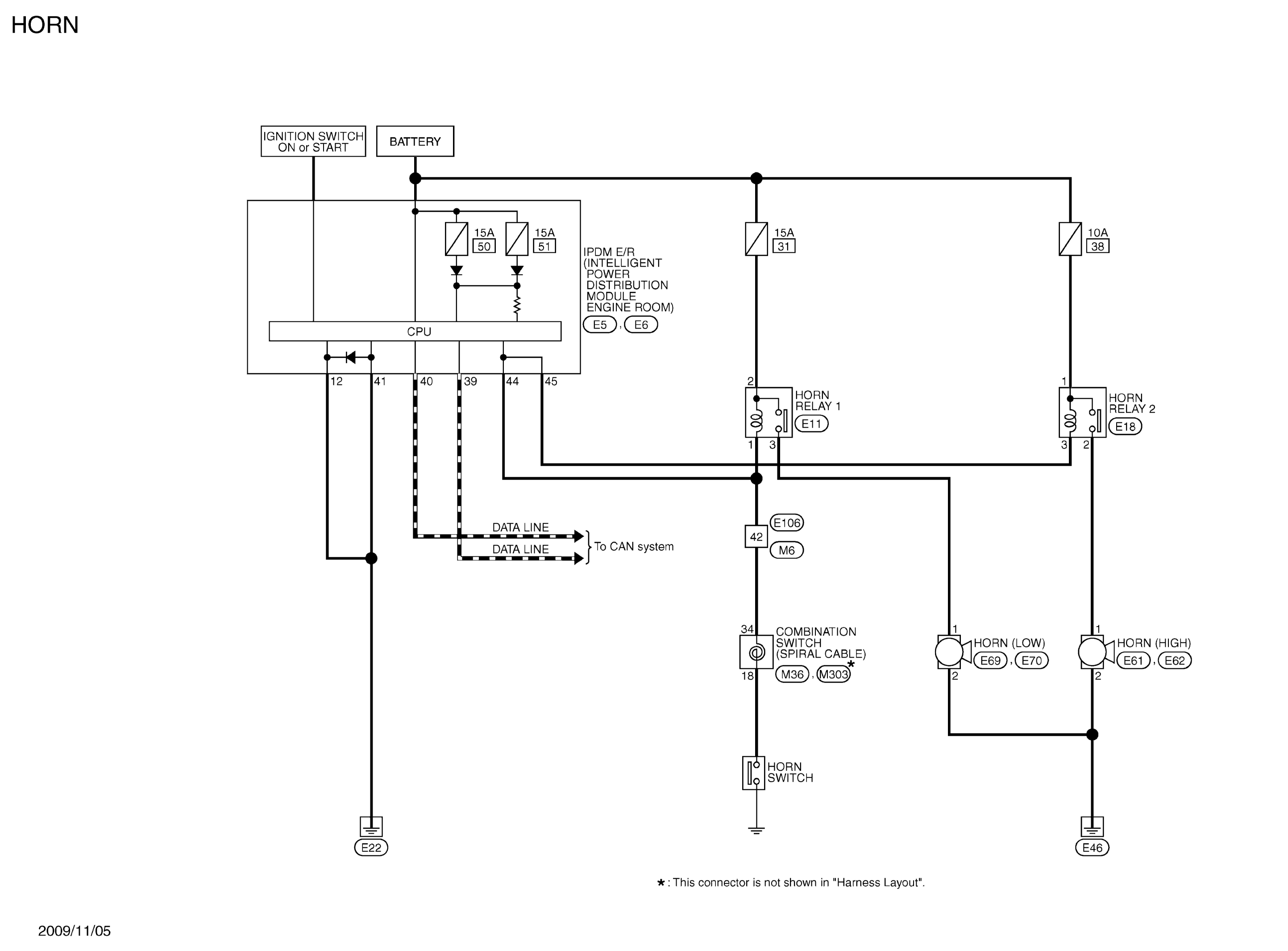

Fig 1: Horn Wiring Diagram
G06627914Courtesy of NISSAN MOTOR CO., U.S.A.

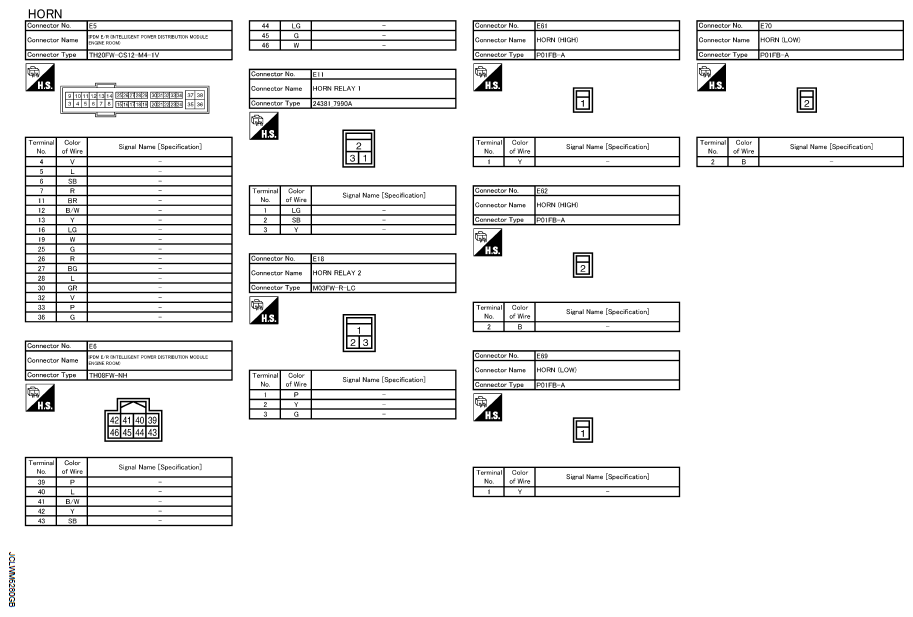

Fig 2: Identifying Horn Connectors (1 Of 2)
G07173554Courtesy of NISSAN MOTOR CO., U.S.A.

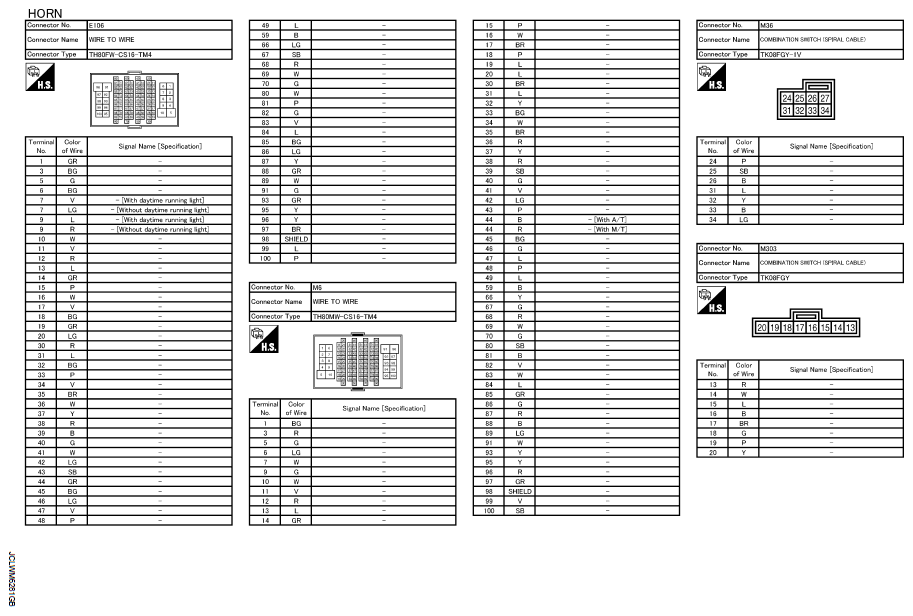

Fig 3: Identifying Horn Connectors (2 Of 2)
G07173555Courtesy of NISSAN MOTOR CO., U.S.A.
