Rear Propeller Shaft: Inspection: Vibration

If vibration is present at high speed, inspect propeller shaft runout first.

1. With a dial indicator, measure propeller shaft runout at runout measuring points by rotating final drive companion flange with hands.

   Propeller shaft runout:  Refer to "PROPELLER SHAFT RUNOUT ".

   Fig 1: Measuring Propeller Shaft Runout At Runout Measuring Points

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • Propeller shaft runout measuring point (Point "←").

   Dimension A: 192 mm (7.56 in)

   B: 172 mm (6.77 in)

   C: 170 mm (6.69 in)

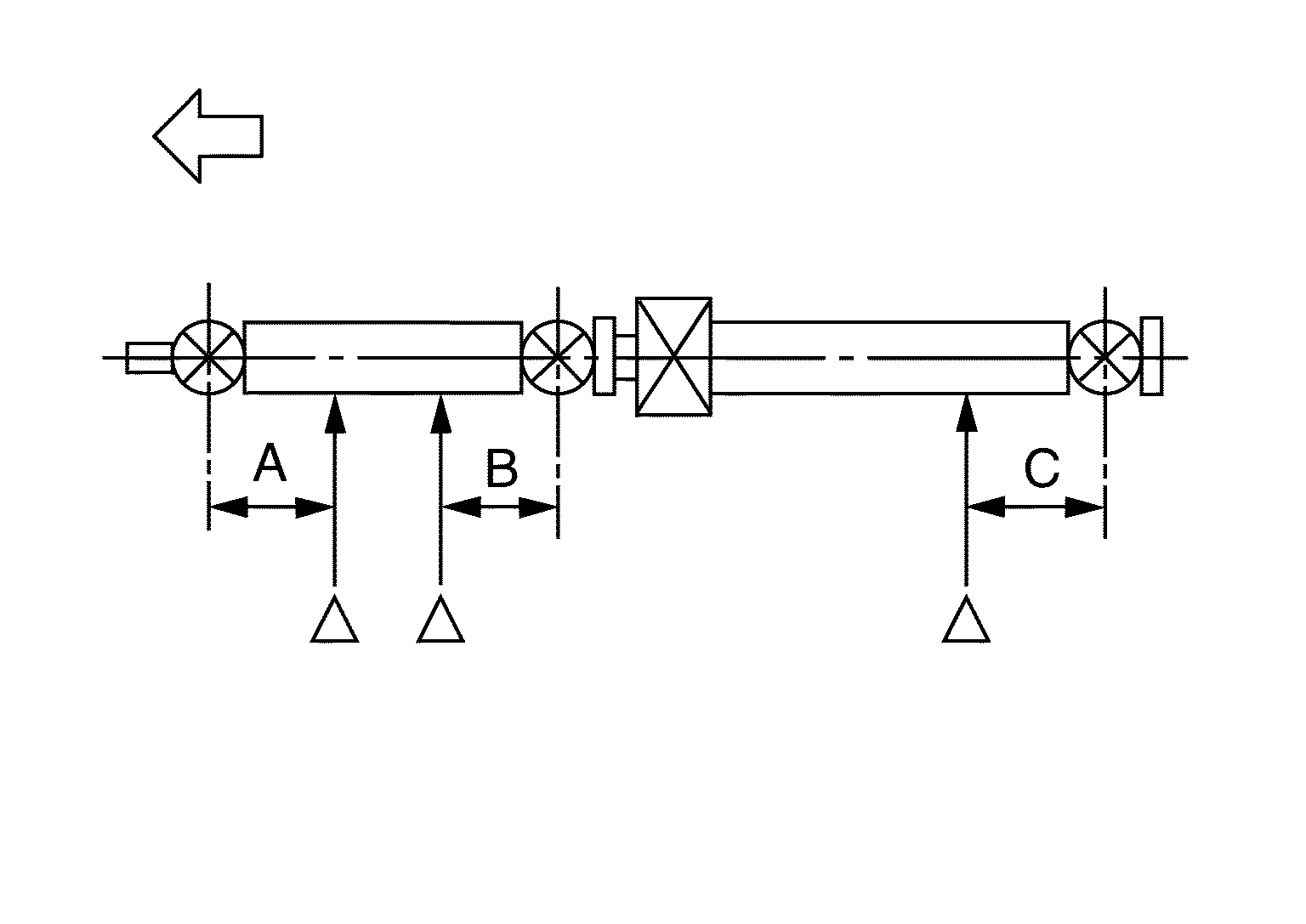

   Fig 2: Identifying Propeller Shaft Runout Measuring Points Dimension

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. If runout still exceeds specifications, separate propeller shaft at final drive companion flange; then change the phase between companion flange and propeller shaft by the one bolt hole at a time and install propeller shaft.
3. If runout is more than the limit value, remove and check propeller shaft.
4. Check the vibration by driving vehicle.
