Exploded View

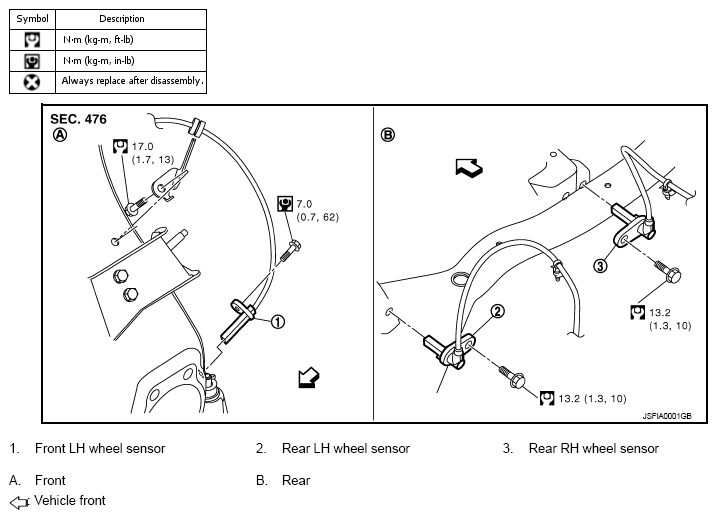

Fig 1: Exploded View Of Wheel Sensor With Torque Specifications
G07169180Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol marks in illustration.

NOTE: The above figure (front side) shows left side. Right side is the mirror image.
