Brake System -- G37 Coupe
>>
Removal And Installation
>>
Brake Pedal
>>
Exploded View
Exploded View

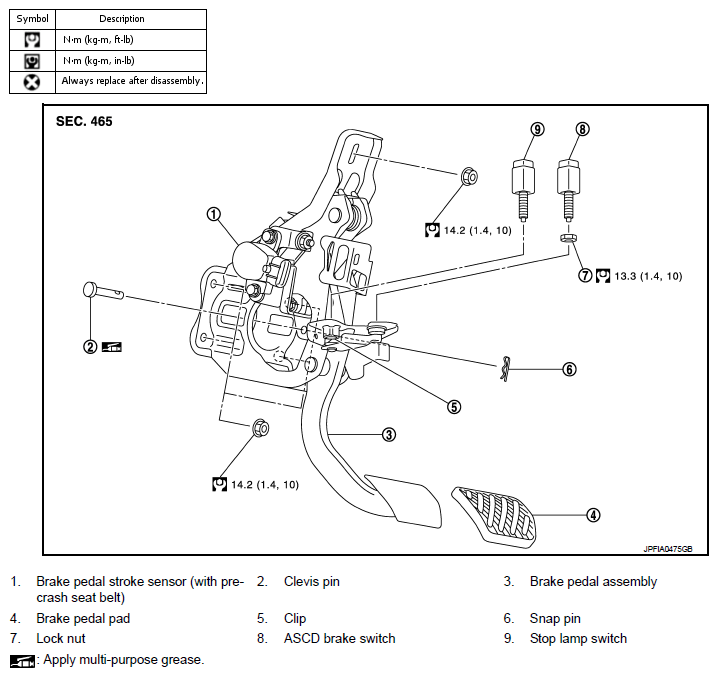

Fig 1: Exploded View Of Brake Pedal With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described on the above.
