WARNING FUNCTION : Component Parts Location
WARNING FUNCTION : Component Parts Location

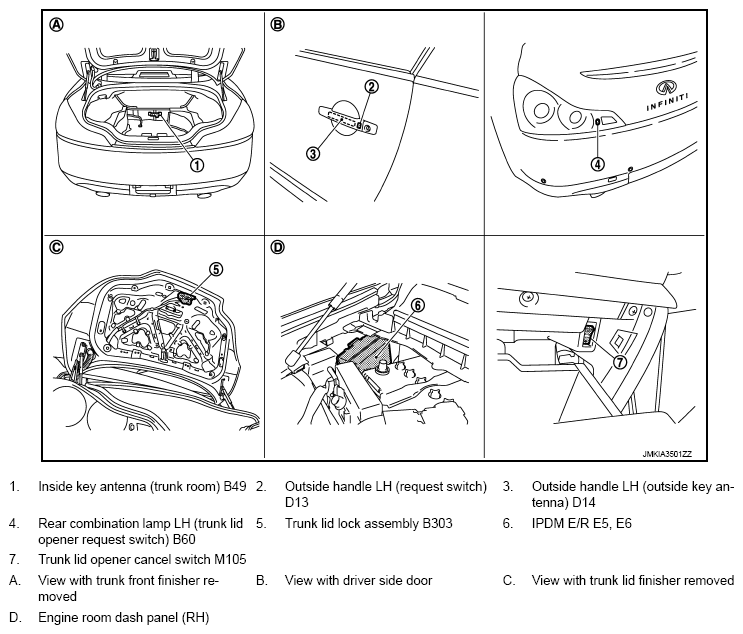

Fig 1: Location Of Warning Function Components (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

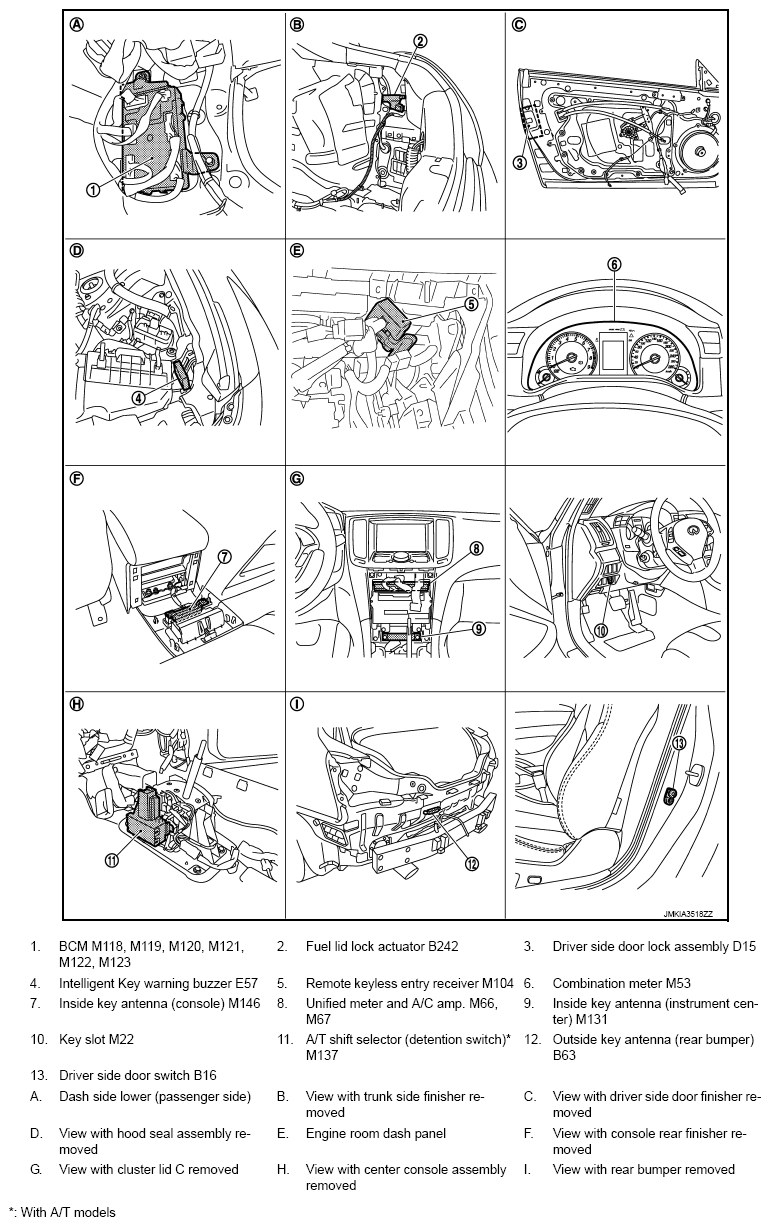

Fig 2: Location Of Warning Function Components (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
