DOOR LOCK FUNCTION : Component Parts Location

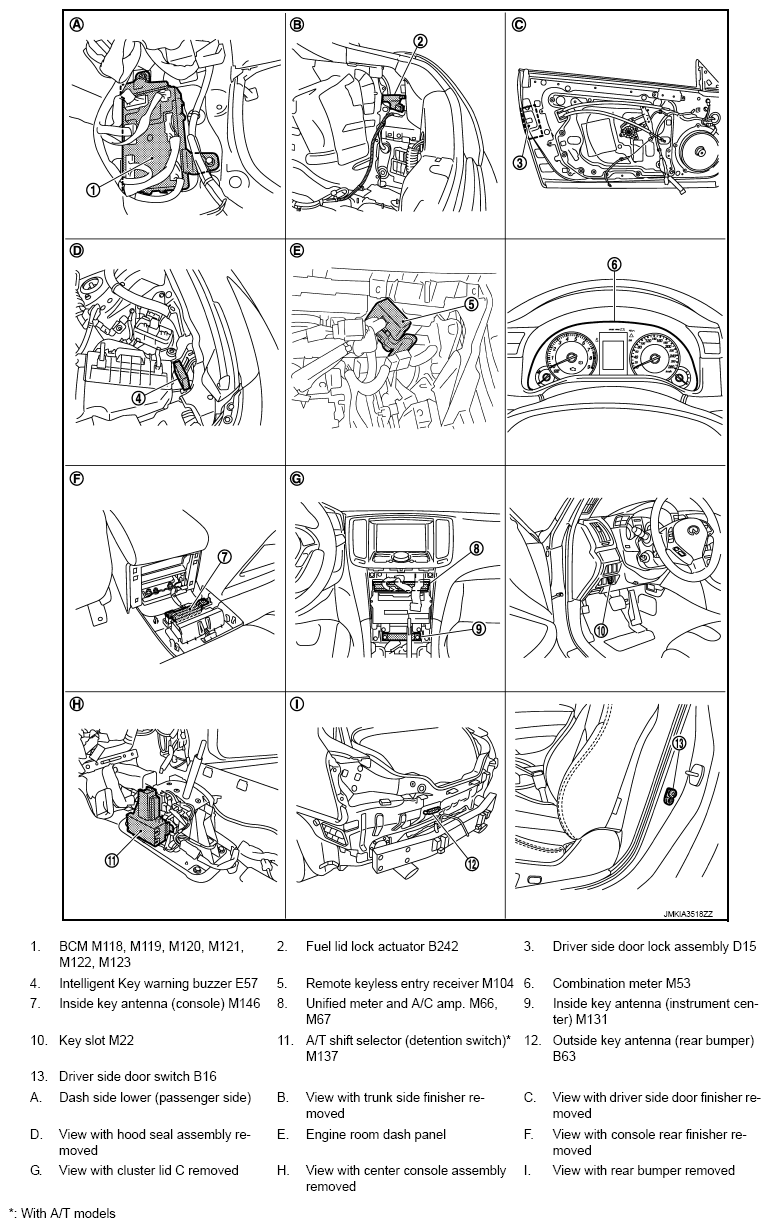

Fig 1: Location Of Door Lock Function Components

Courtesy of NISSAN MOTOR CO., U.S.A.

*: With A/T models

Fig 2: Location Of Door Lock Function Components - With A/T Models

Courtesy of NISSAN MOTOR CO., U.S.A.
