Door & Lock -- G37 Coupe
>>
Removal And Installation
>>
Fuel Filler Lid Opener
>>
Exploded View
Exploded View

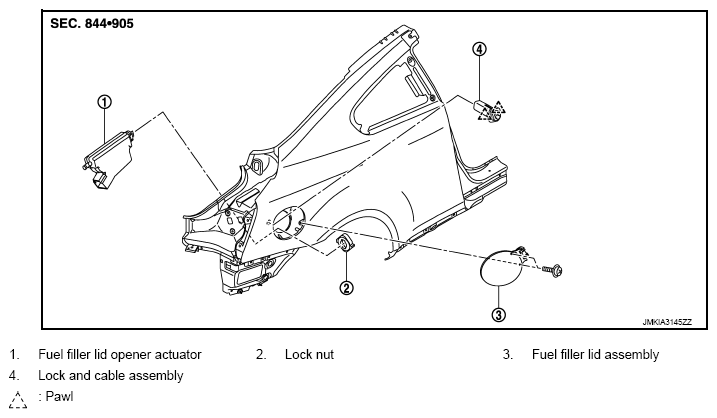

Fig 1: Exploded View Of Fuel Filler Lid Opener
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
