Door & Lock -- G37 Coupe
>>
Ecu Diagnosis Information
>>
BCM (Body Control Module)
>>
Wiring Diagram - BCM -
Wiring Diagram - BCM -

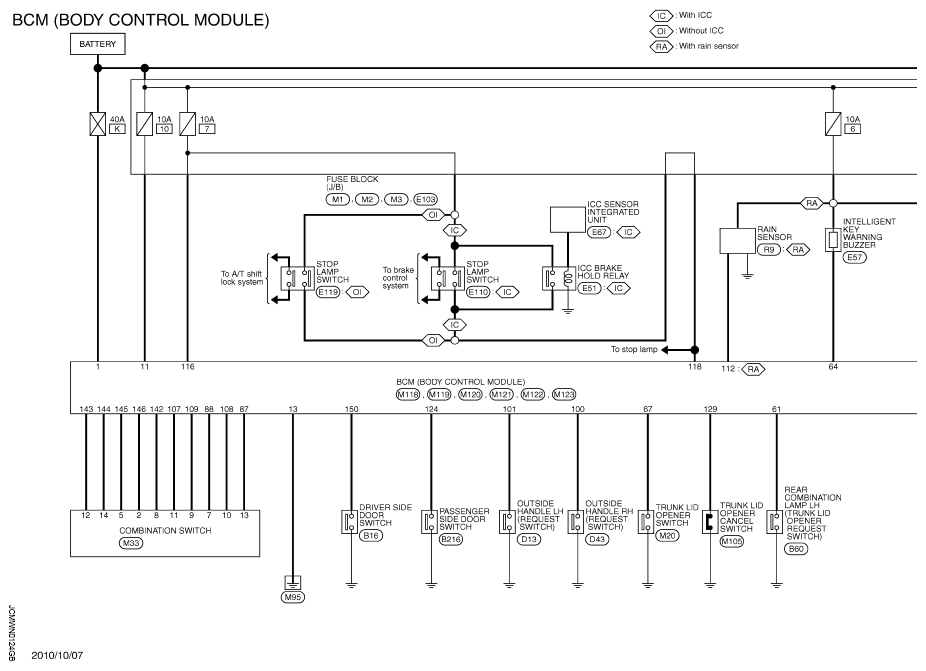

Fig 1: Body Control Module Wiring Diagram (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

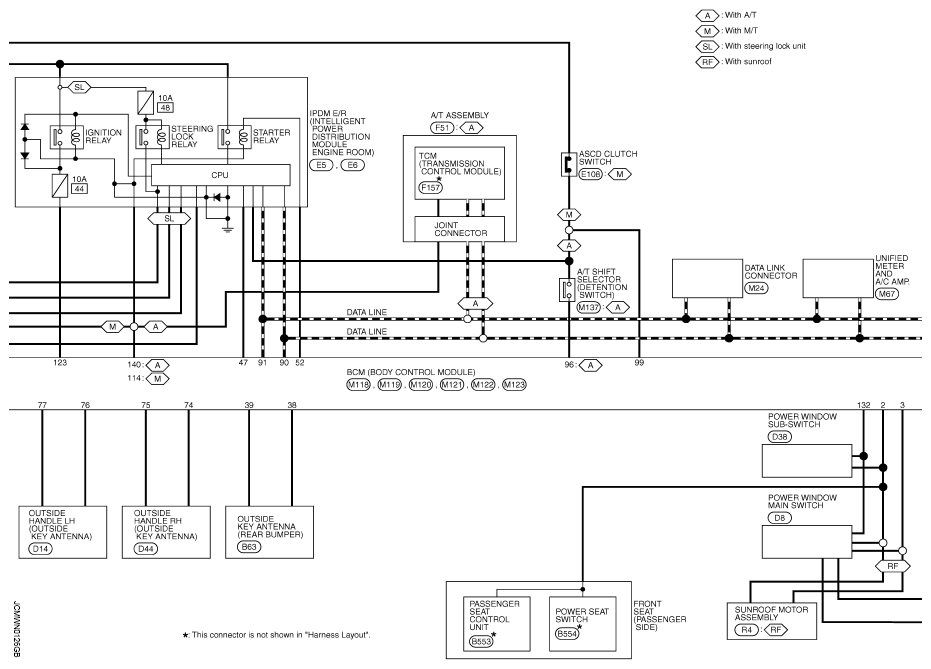

Fig 2: Body Control Module Wiring Diagram (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

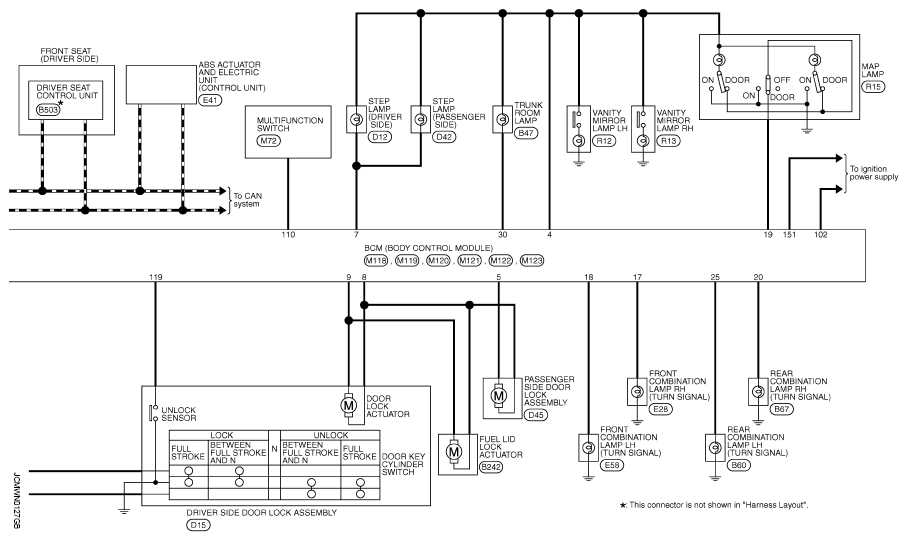

Fig 3: Body Control Module Wiring Diagram (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Body Control Module Wiring Diagram (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

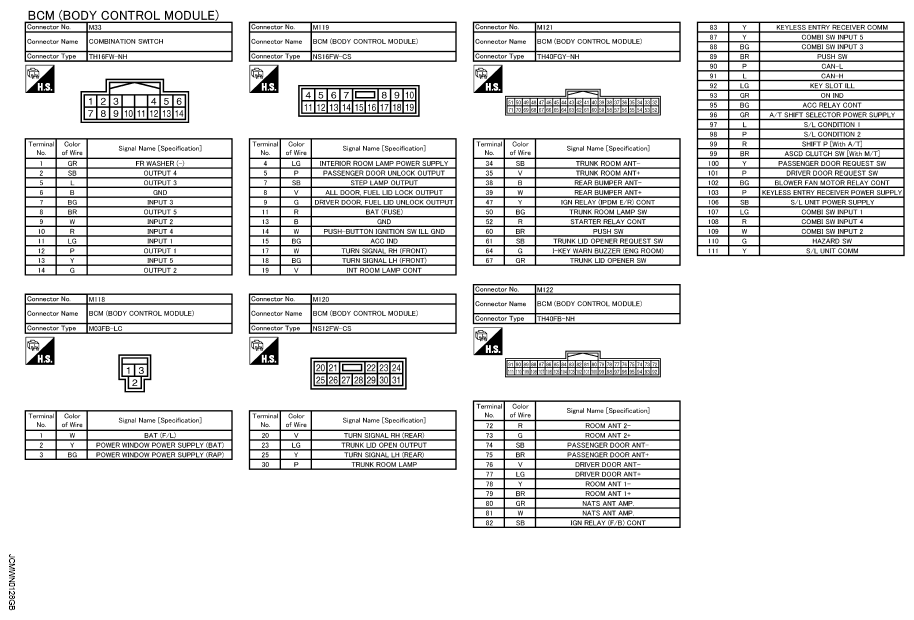

Fig 5: Identifying Body Control Module Connectors (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

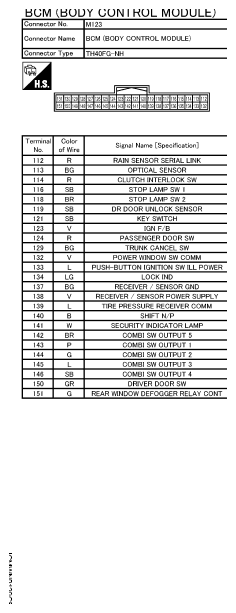

Fig 6: Identifying Body Control Module Connectors (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
