Wiring Diagram - TRUNK LID OPENER -
Wiring Diagram - TRUNK LID OPENER -

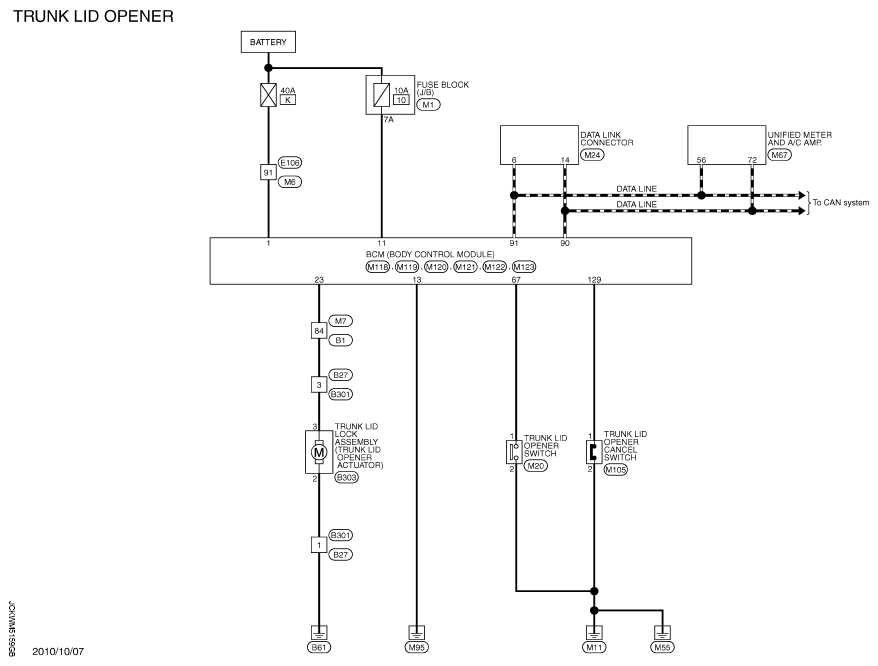

Fig 1: Trunk Lid Opener Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

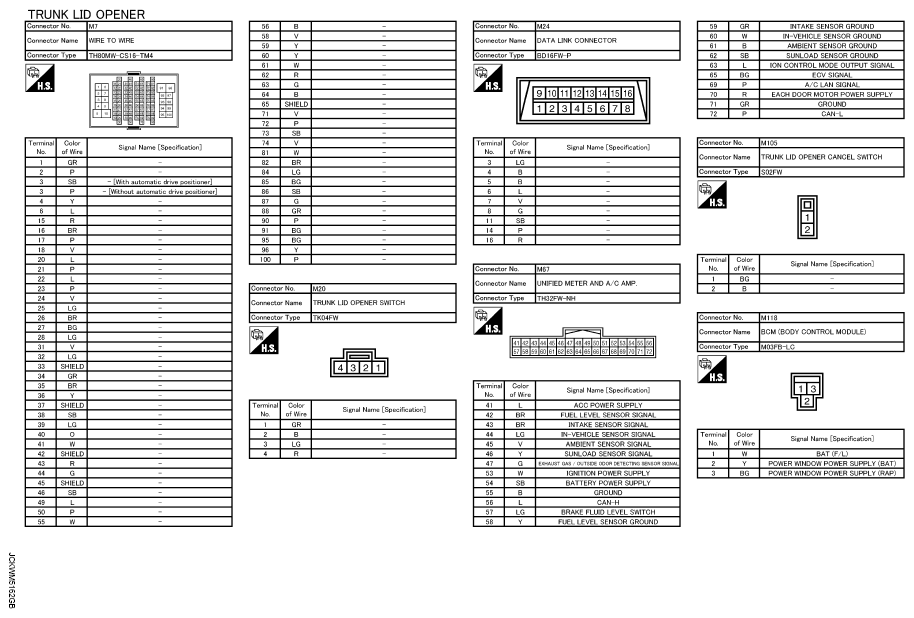

Fig 2: Identifying Trunk Lid Opener Connectors (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

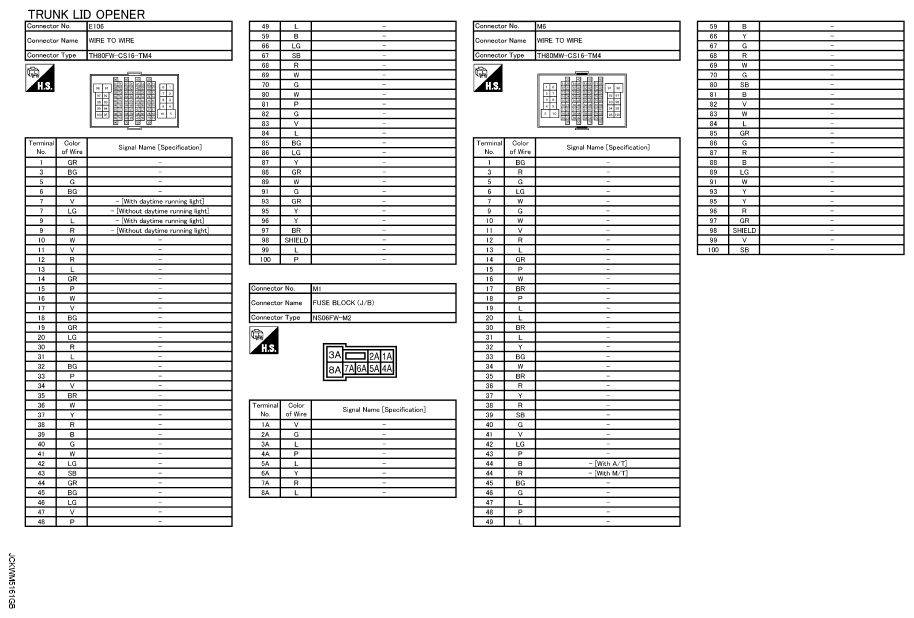

Fig 3: Identifying Trunk Lid Opener Connectors (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

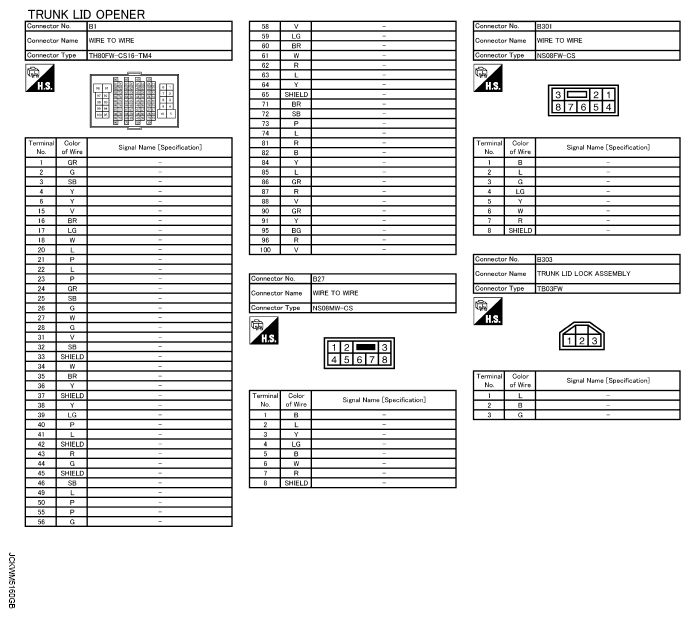

Fig 4: Identifying Trunk Lid Opener Connectors (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

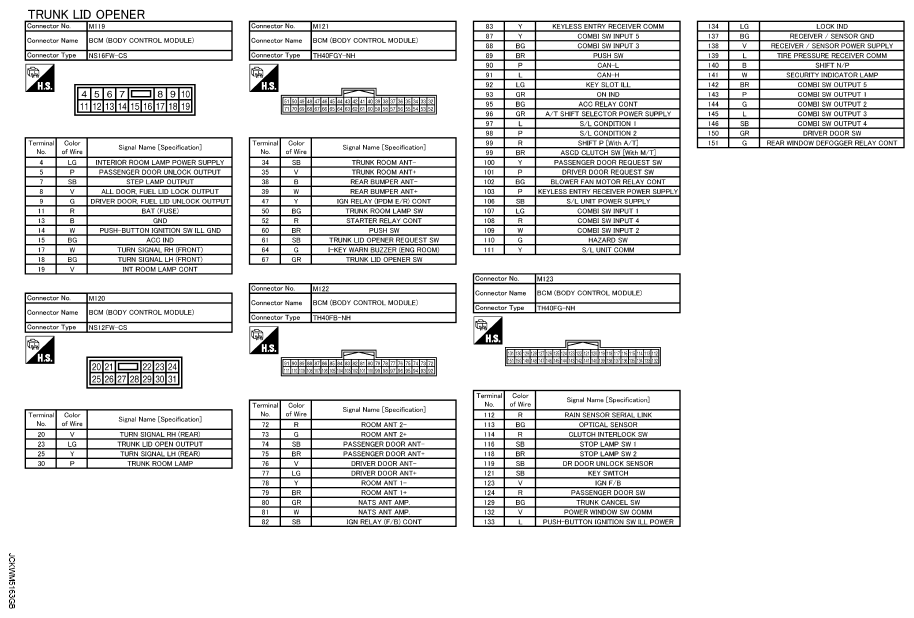

Fig 5: Identifying Trunk Lid Opener Connectors (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
