Wiring Diagram - POWER DOOR LOCK SYSTEM -

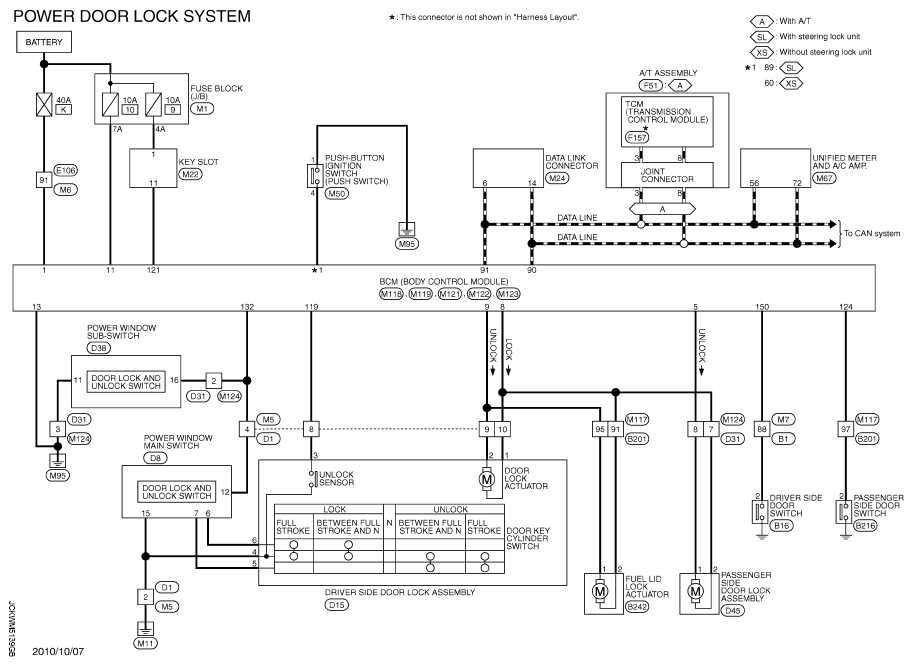

Fig 1: Power Door Lock System Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

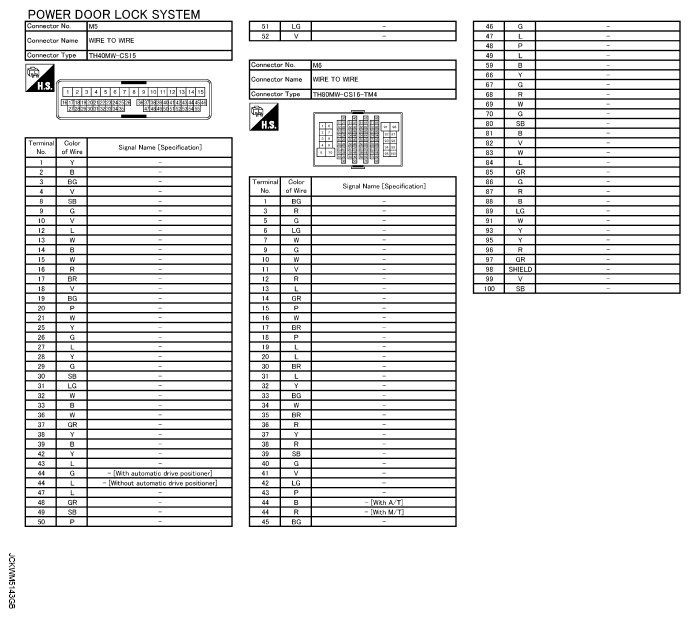

Fig 2: Identifying Power Door Lock System Connectors (1 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

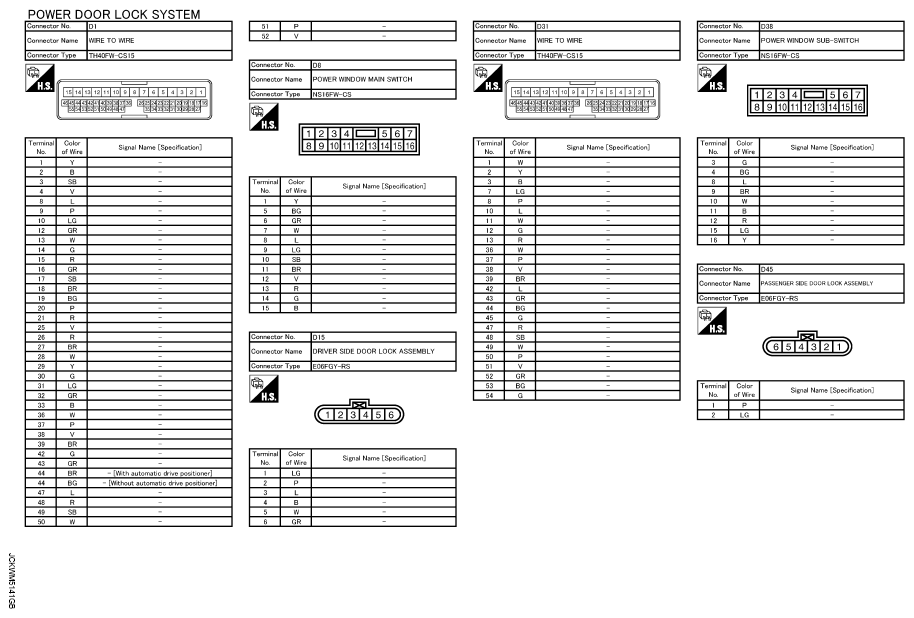

Fig 3: Identifying Power Door Lock System Connectors (2 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

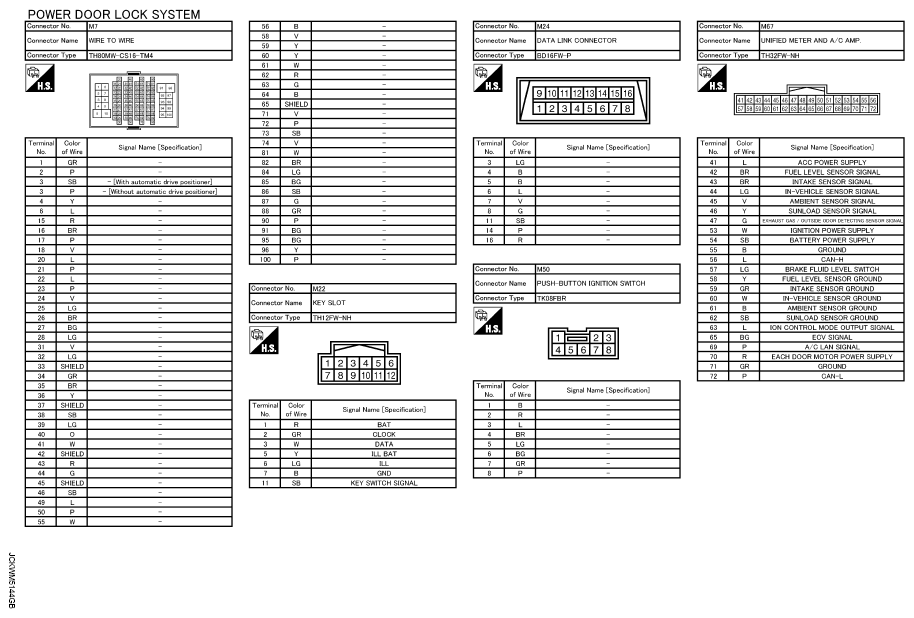

Fig 4: Identifying Power Door Lock System Connectors (3 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

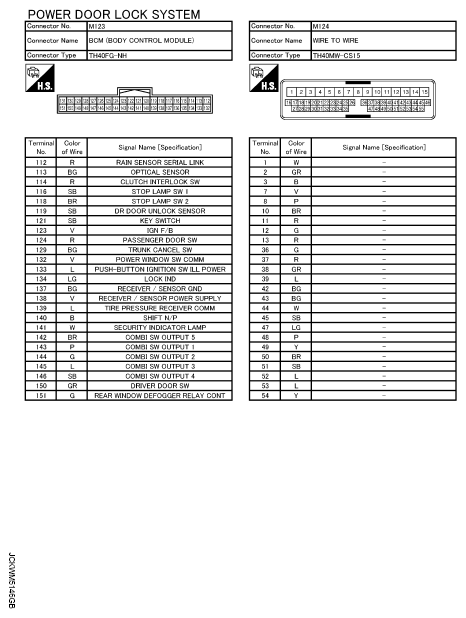

Fig 5: Identifying Power Door Lock System Connectors (4 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

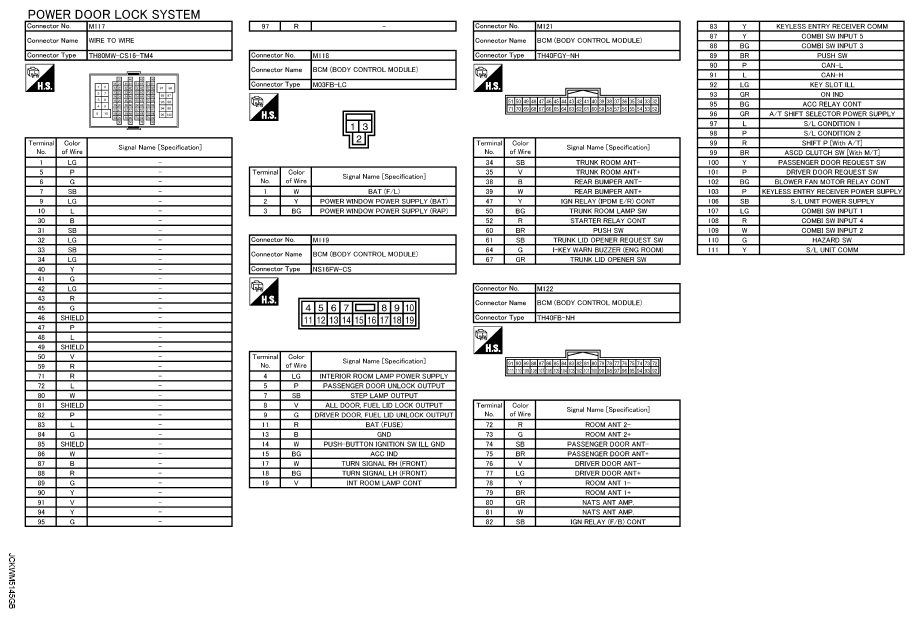

Fig 6: Identifying Power Door Lock System Connectors (5 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

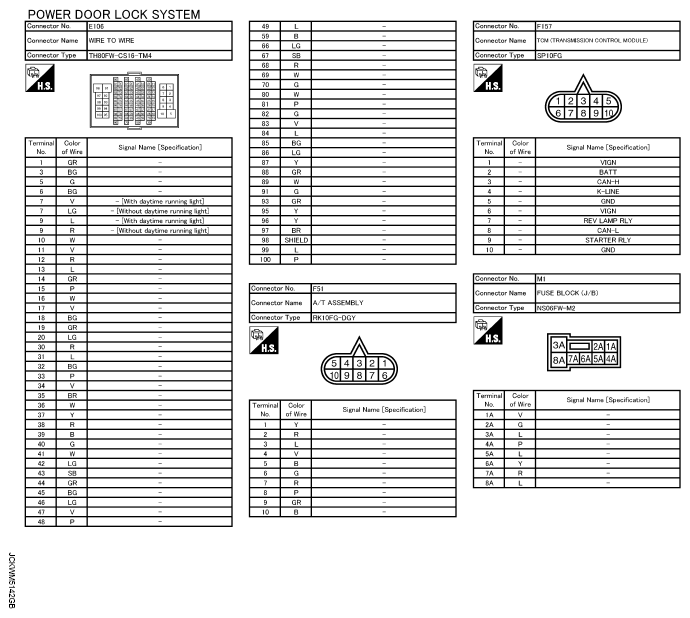

Fig 7: Identifying Power Door Lock System Connectors (6 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.

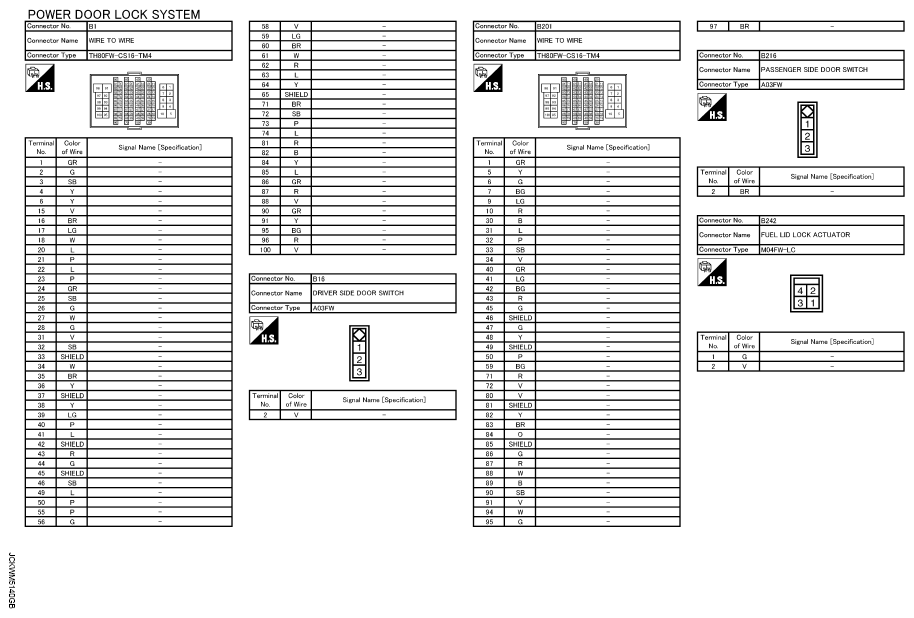

Fig 8: Identifying Power Door Lock System Connectors (7 Of 7)

Courtesy of NISSAN MOTOR CO., U.S.A.
