Wiring Diagram - INTELLIGENT KEY SYSTEM -

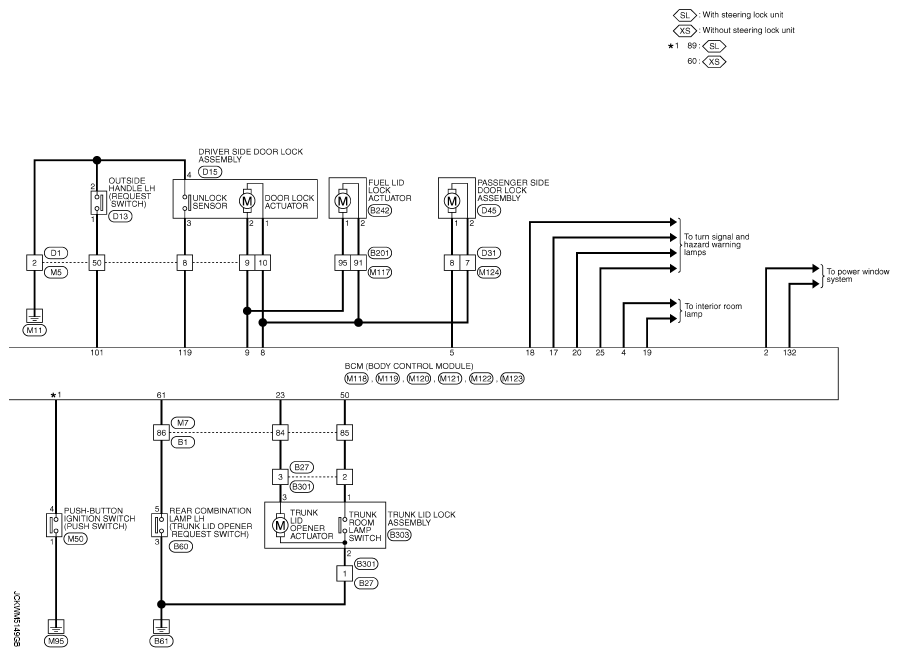

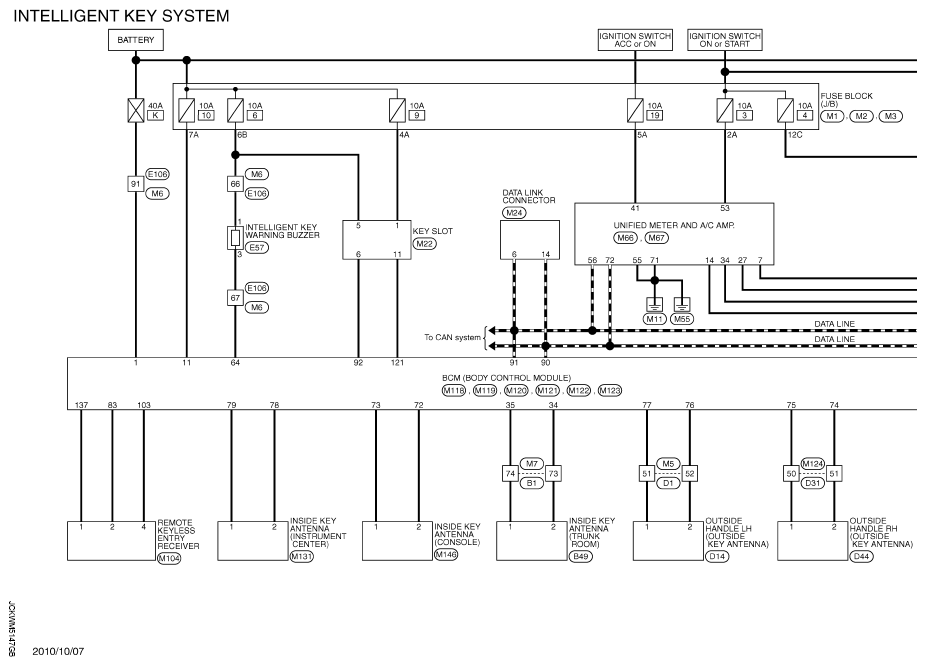

Fig 1: Intelligent Key System Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

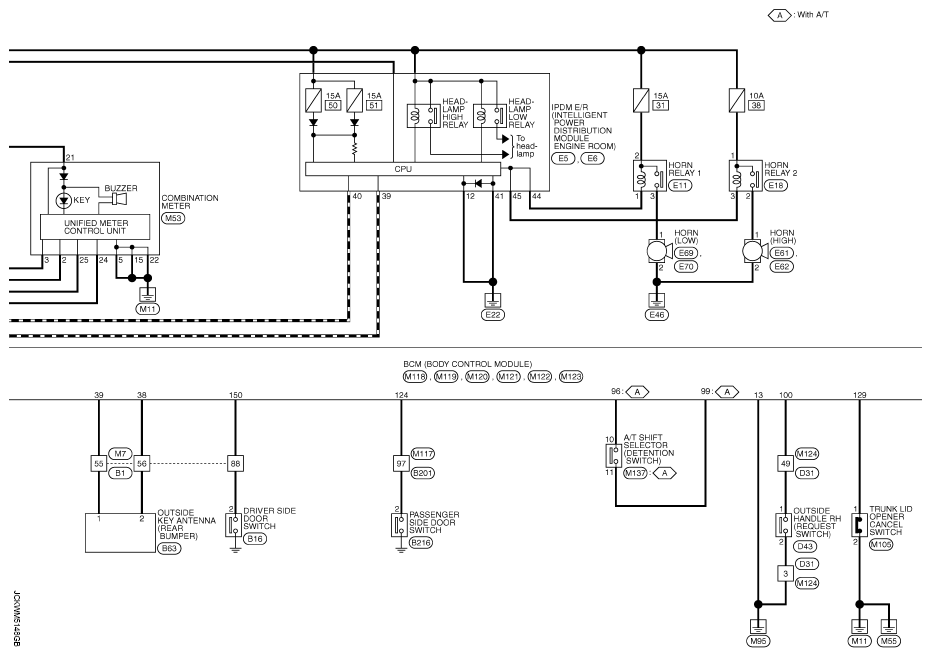

Fig 2: Intelligent Key System Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Intelligent Key System Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

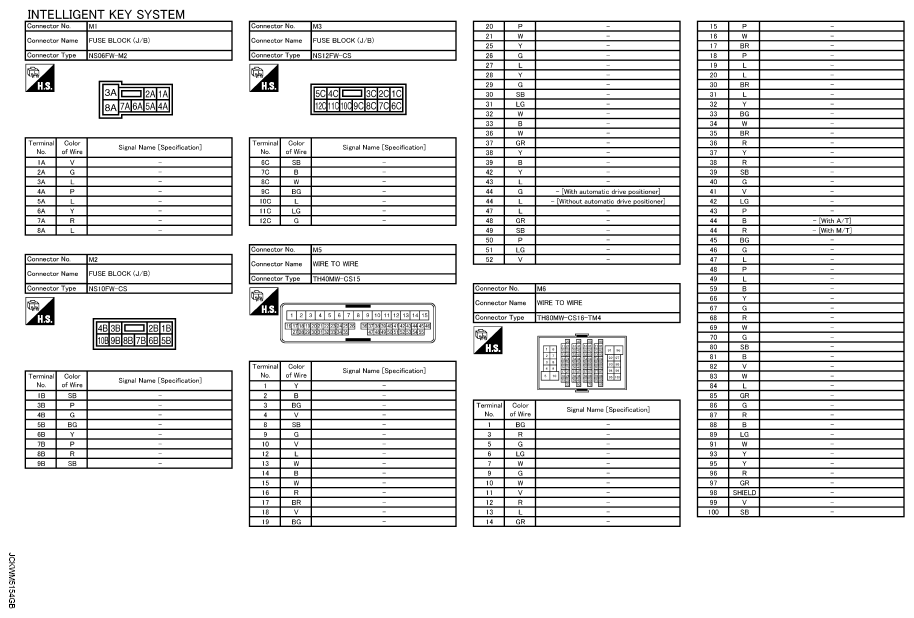

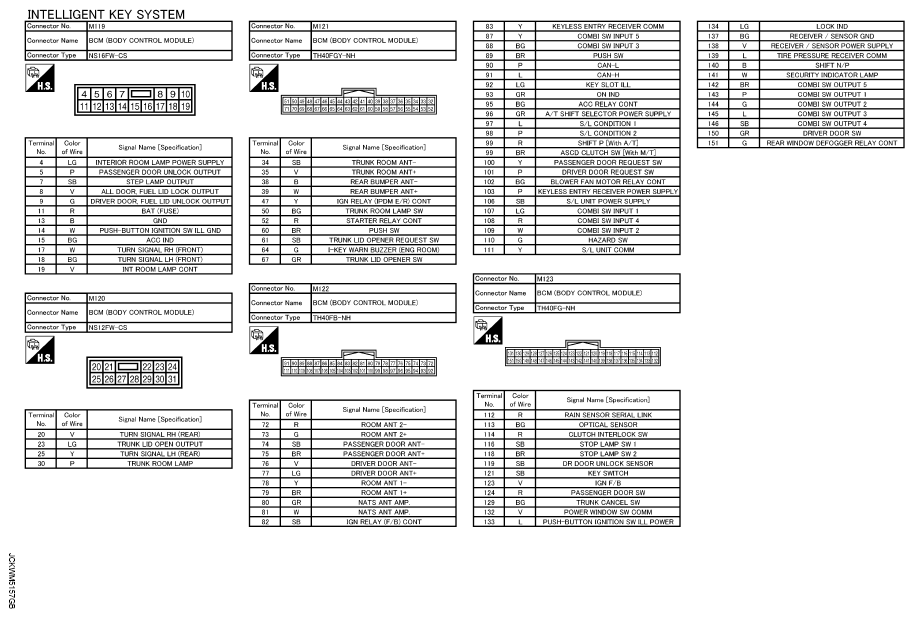

Fig 4: Identifying Intelligent Key System Connectors (1 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

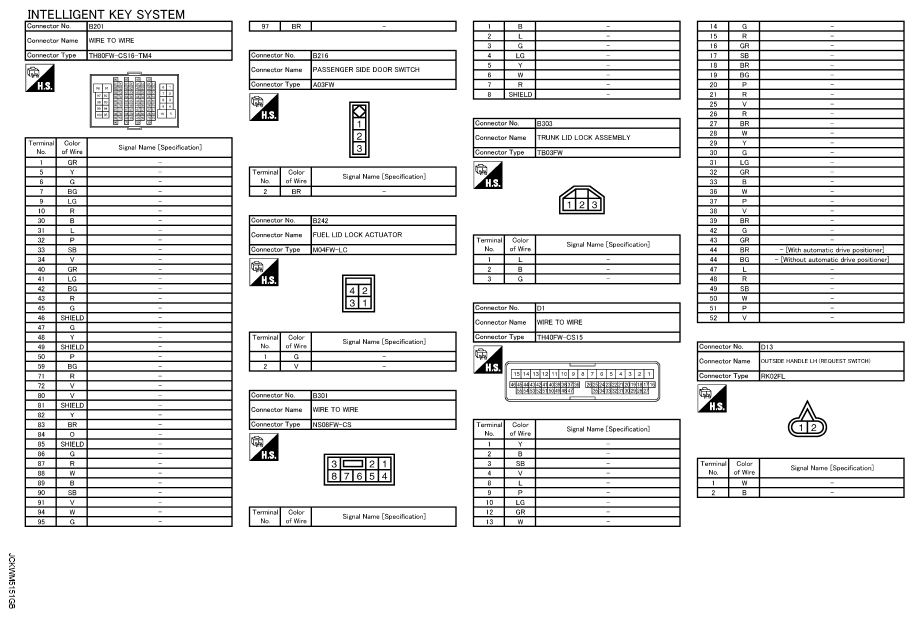

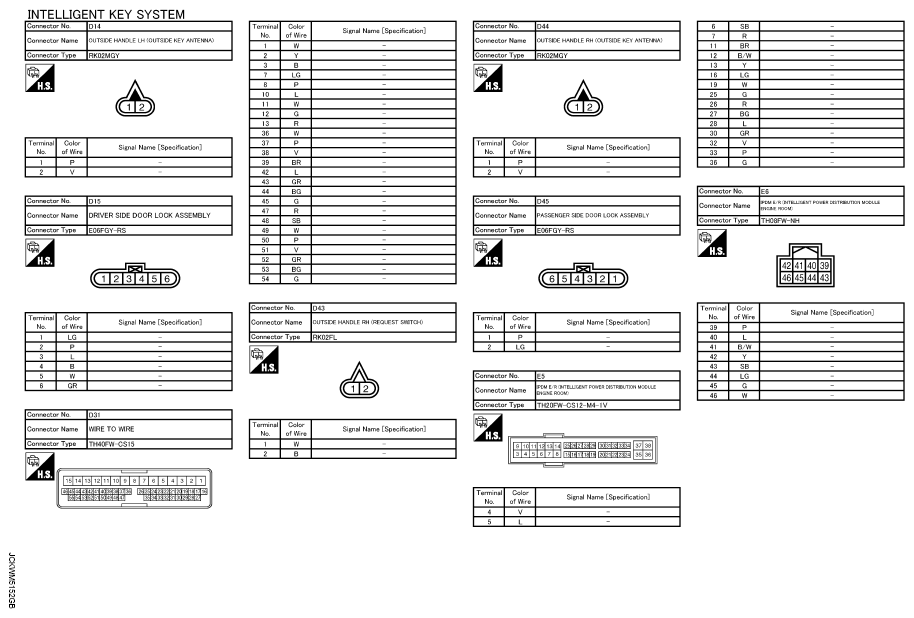

Fig 5: Identifying Intelligent Key System Connectors (2 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

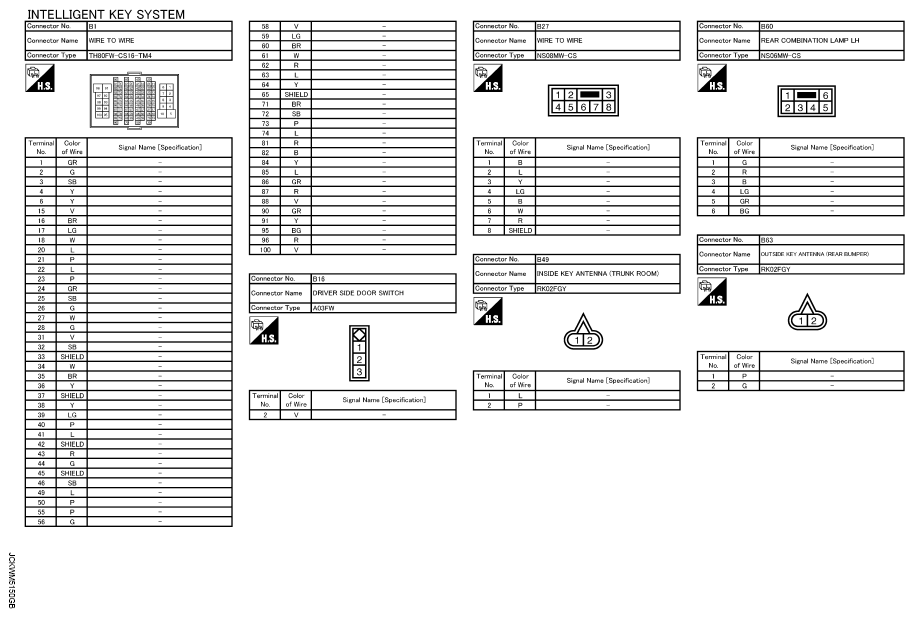

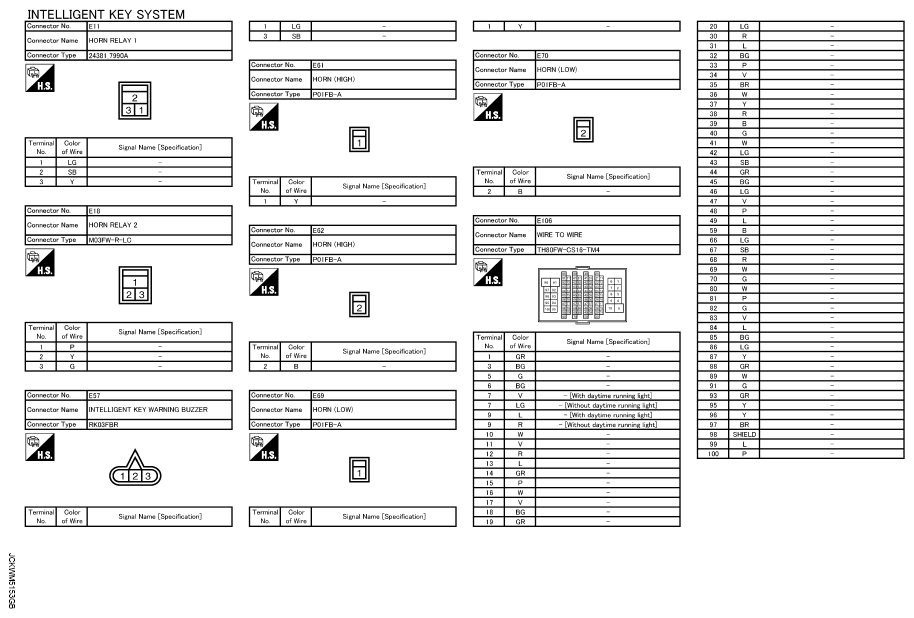

Fig 6: Identifying Intelligent Key System Connectors (3 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

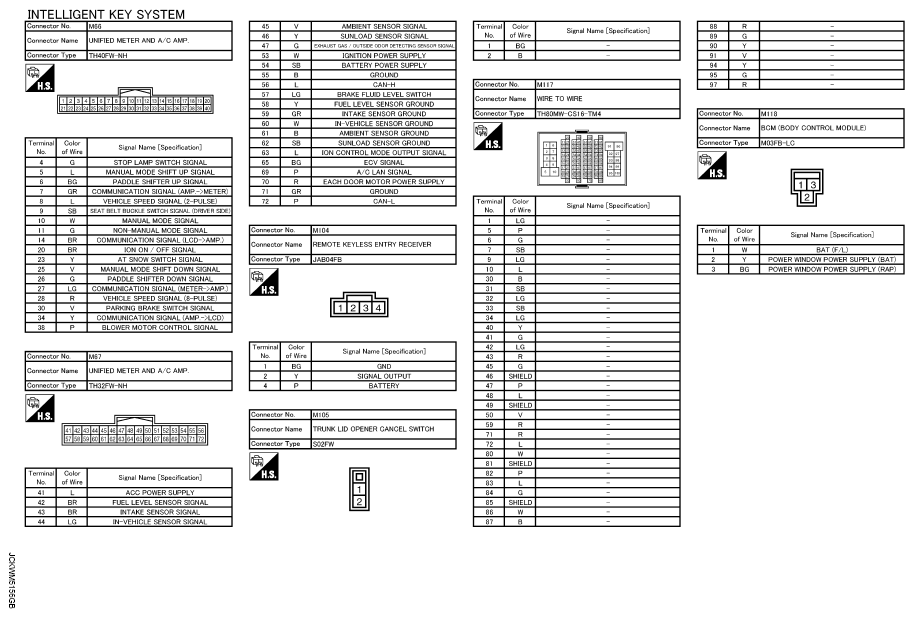

Fig 7: Identifying Intelligent Key System Connectors (4 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

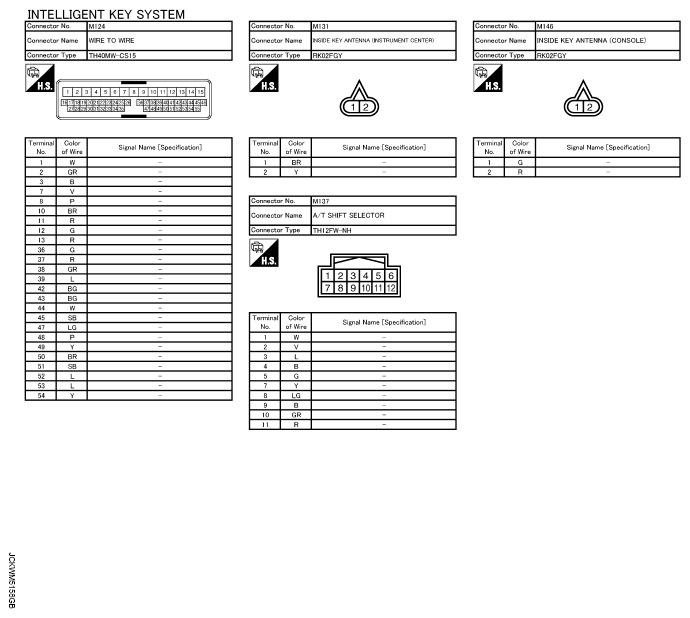

Fig 8: Identifying Intelligent Key System Connectors (5 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

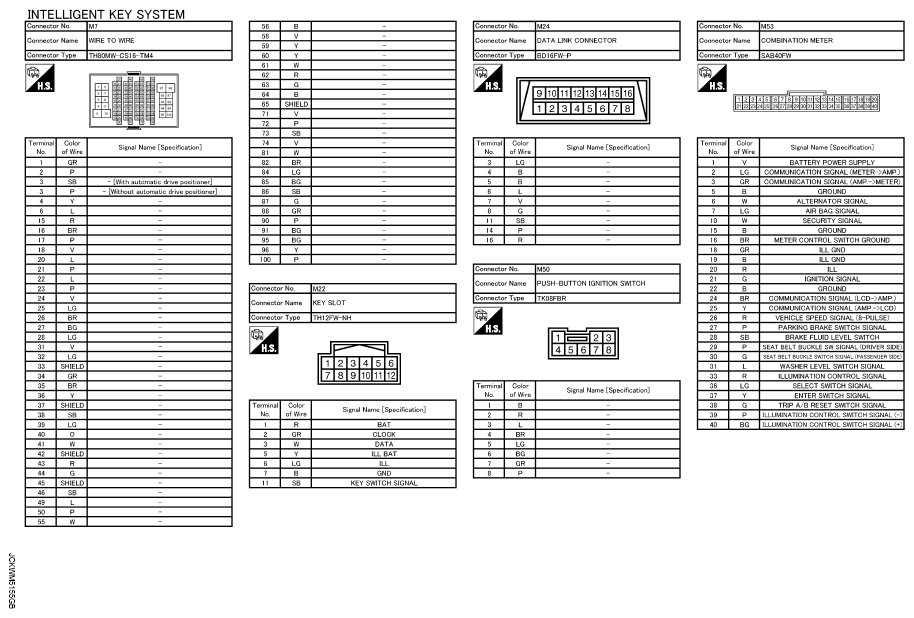

Fig 9: Identifying Intelligent Key System Connectors (6 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Intelligent Key System Connectors (7 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Intelligent Key System Connectors (8 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intelligent Key System Connectors (9 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.
