Wiring Diagram - ILLUMINATION -

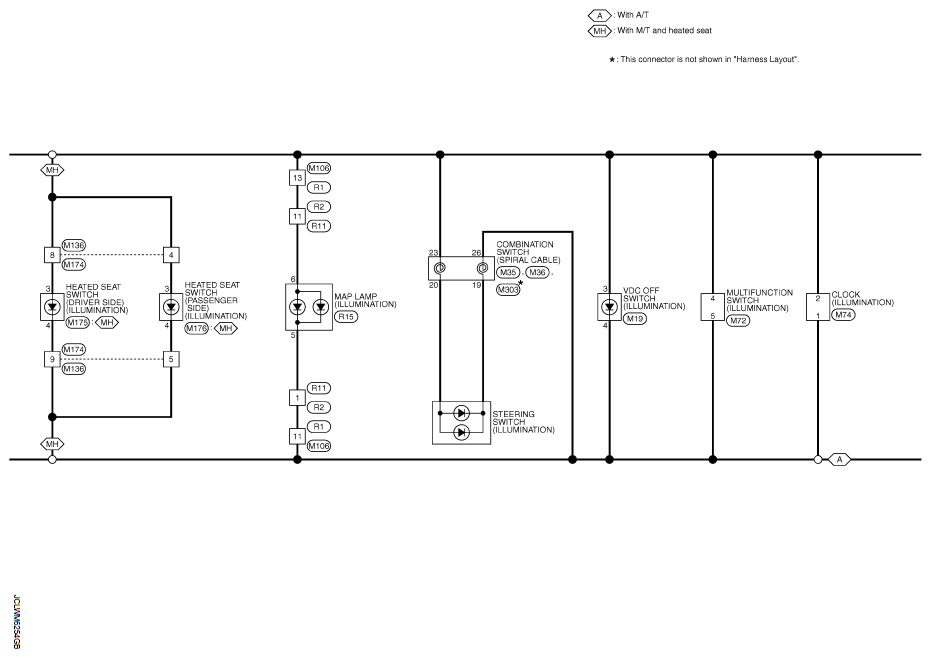

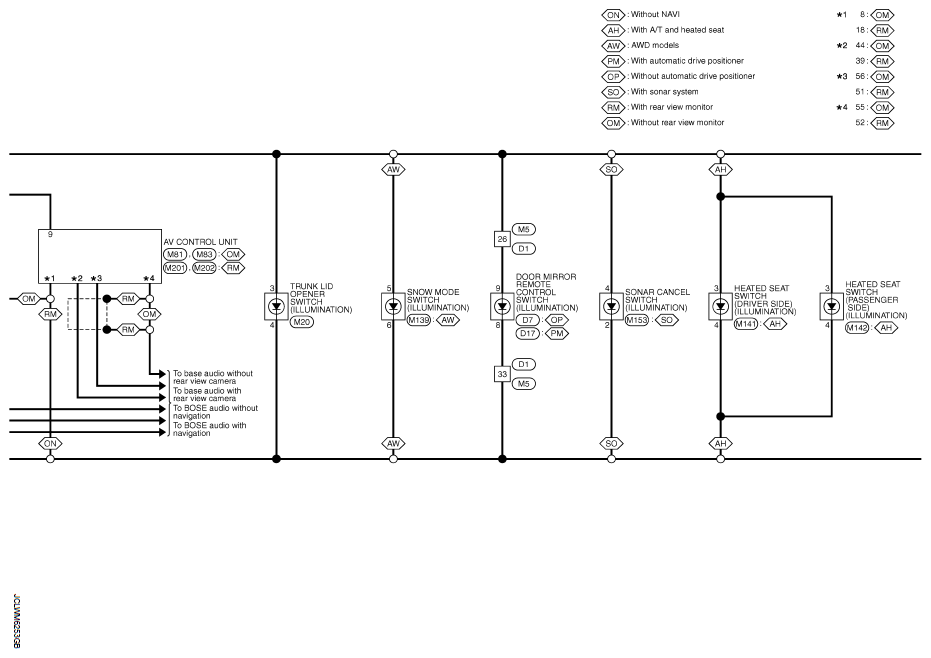

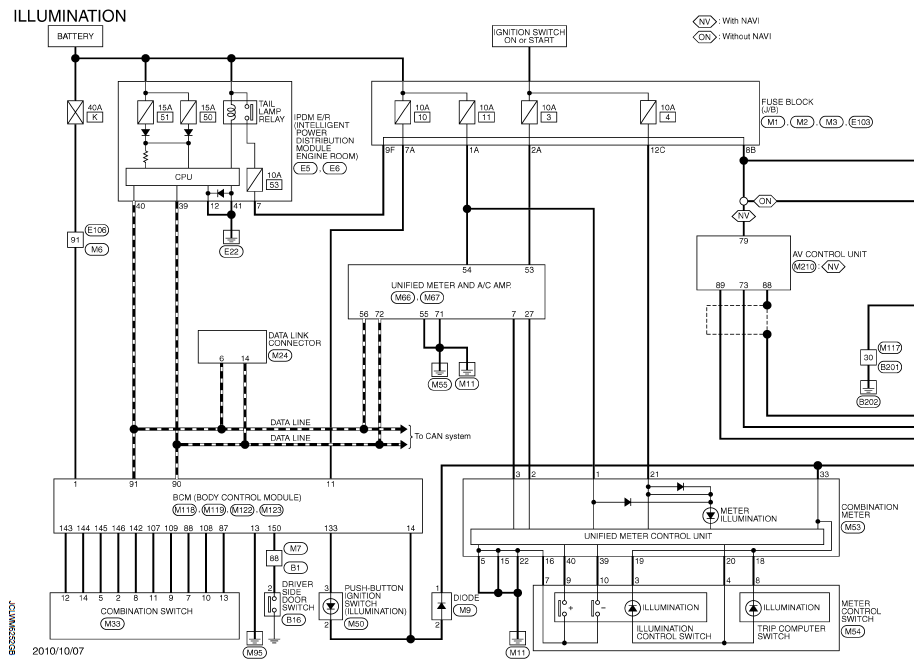

Fig 1: Illumination Wiring Diagram (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Illumination Wiring Diagram (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Illumination Wiring Diagram (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Illumination Wiring Diagram (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

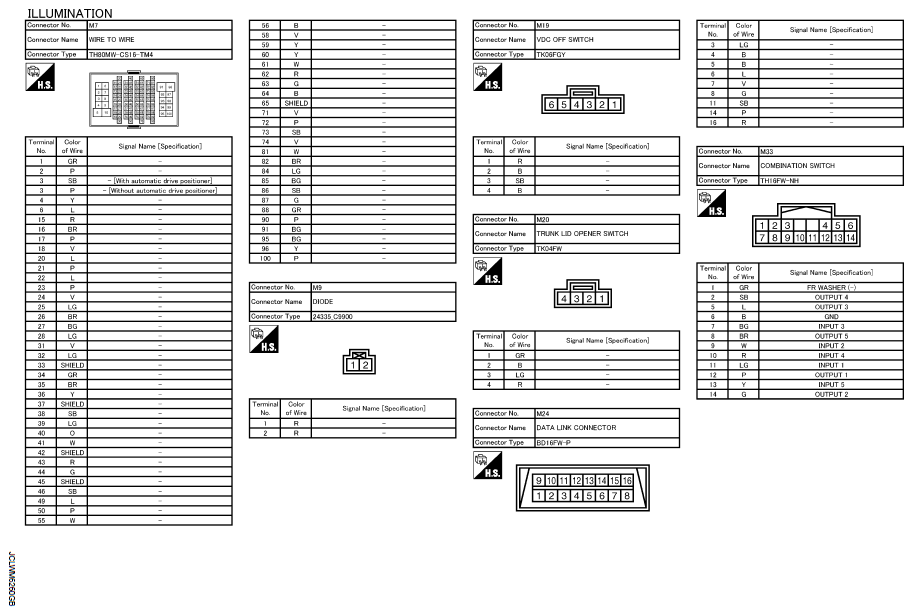

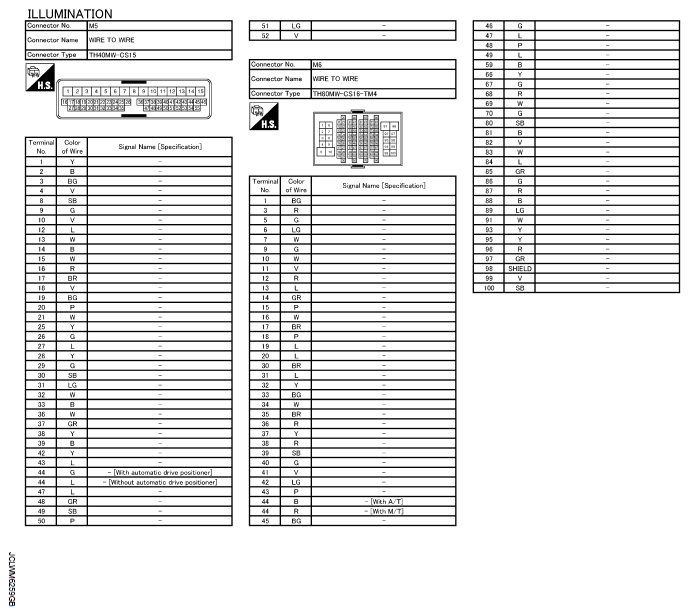

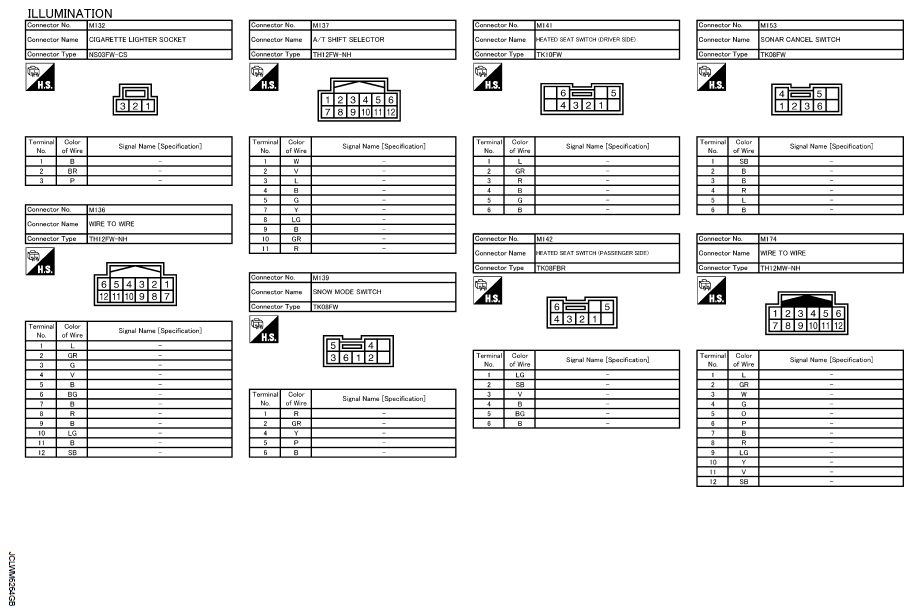

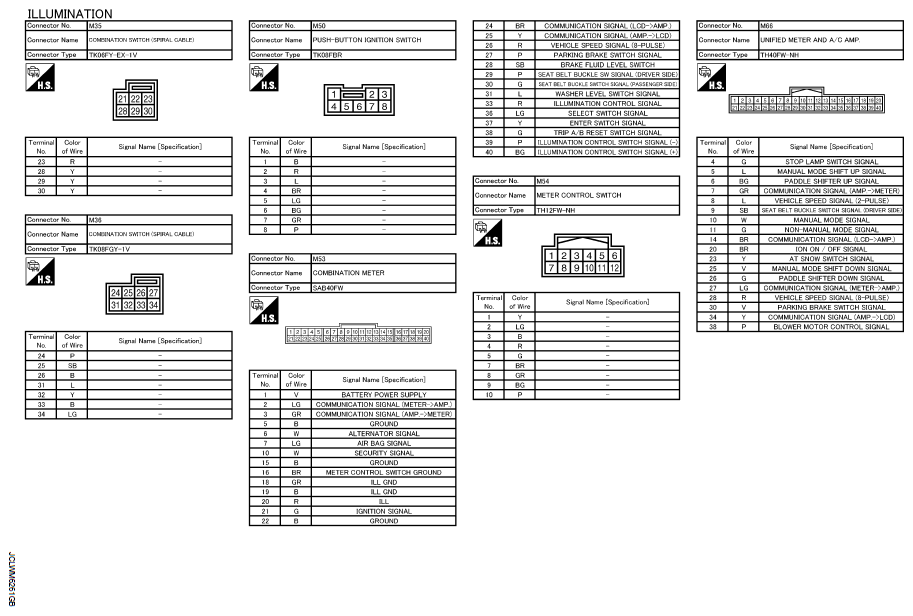

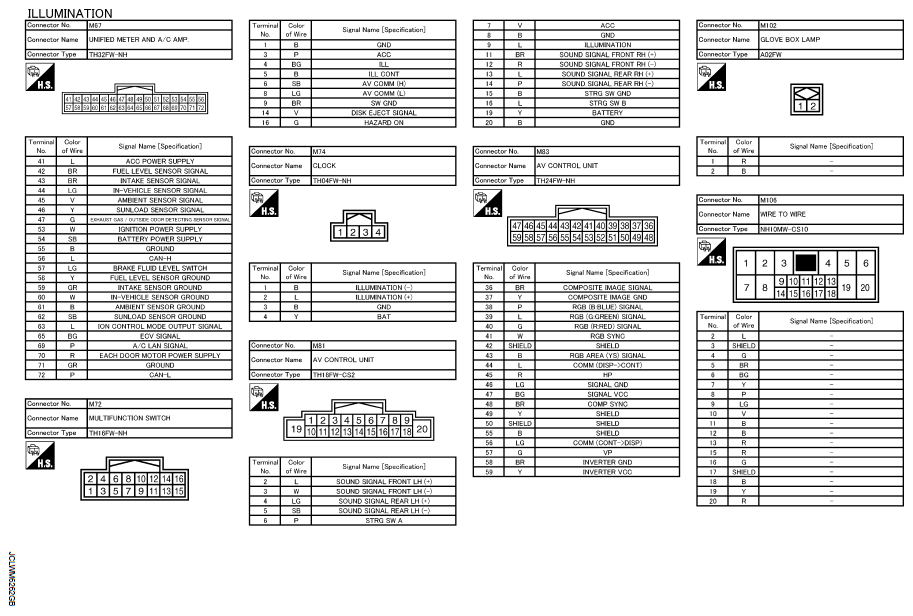

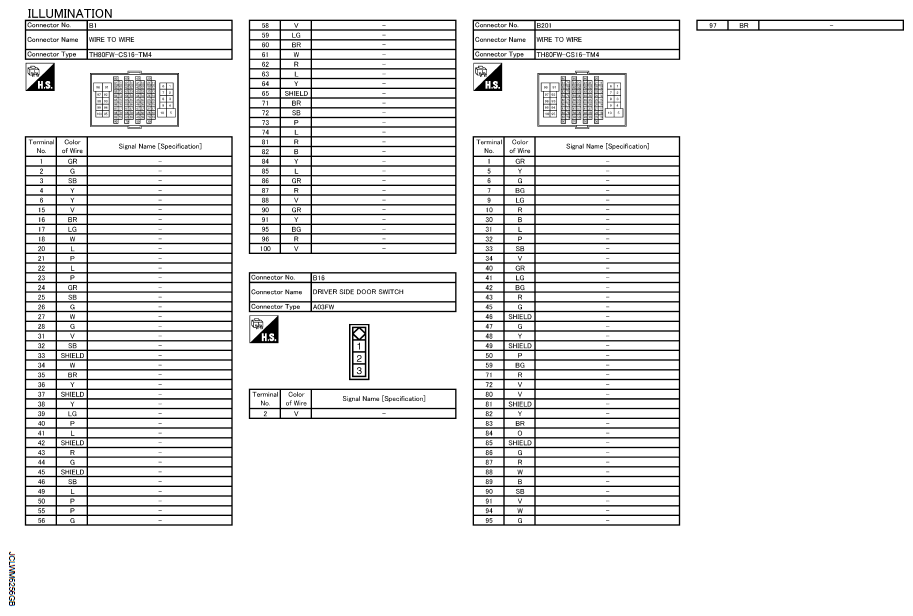

Fig 5: Identifying Illumination Connectors Terminal Identification (1 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

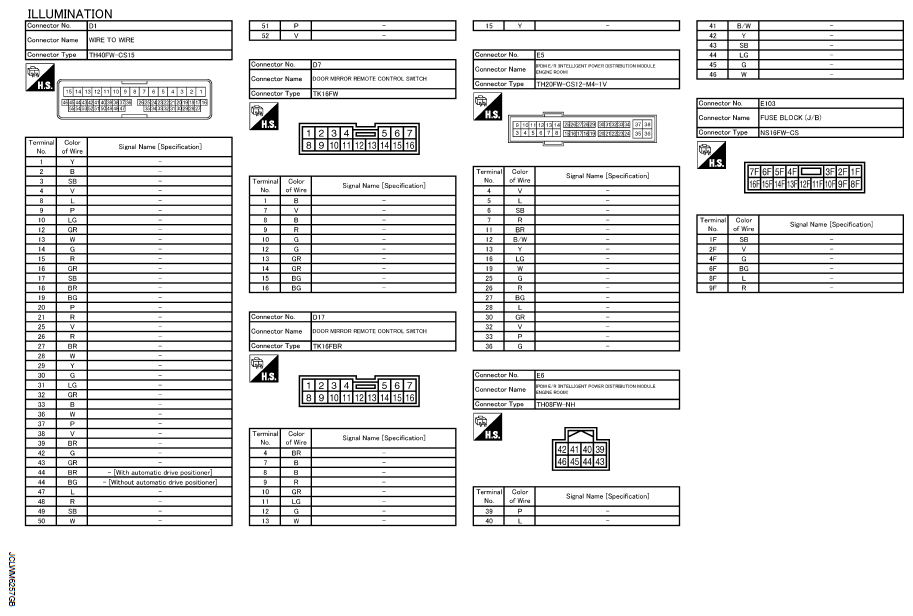

Fig 6: Identifying Illumination Connectors Terminal Identification (2 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

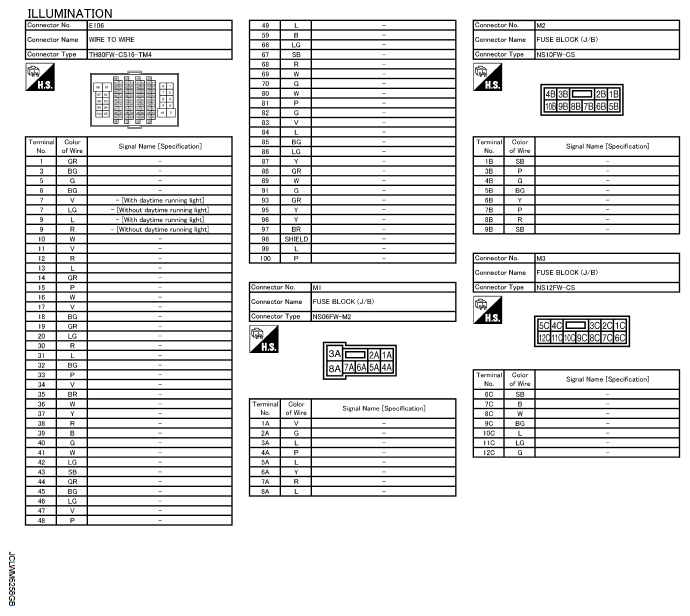

Fig 7: Identifying Illumination Connectors Terminal Identification (3 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Illumination Connectors Terminal Identification (4 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

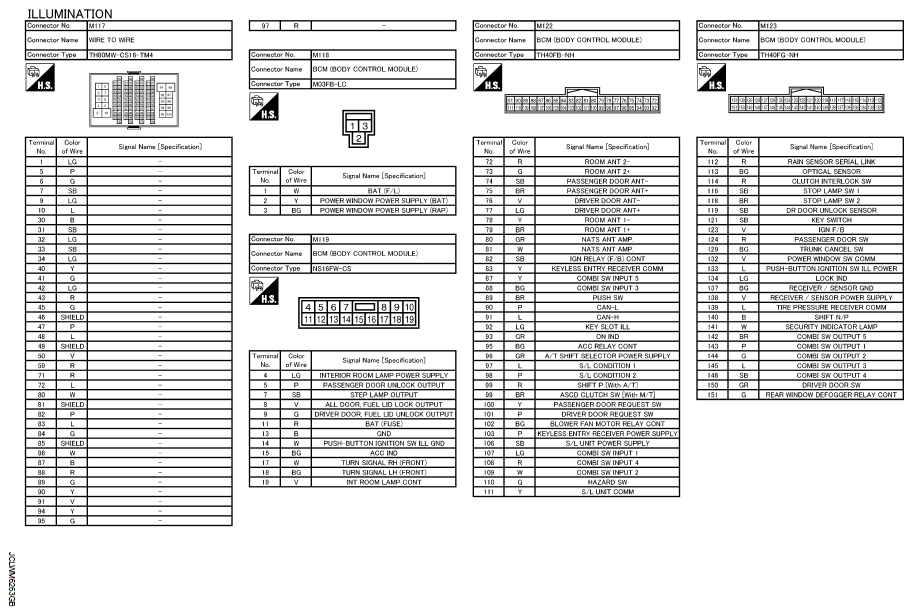

Fig 9: Identifying Illumination Connectors Terminal Identification (5 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Illumination Connectors Terminal Identification (6 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

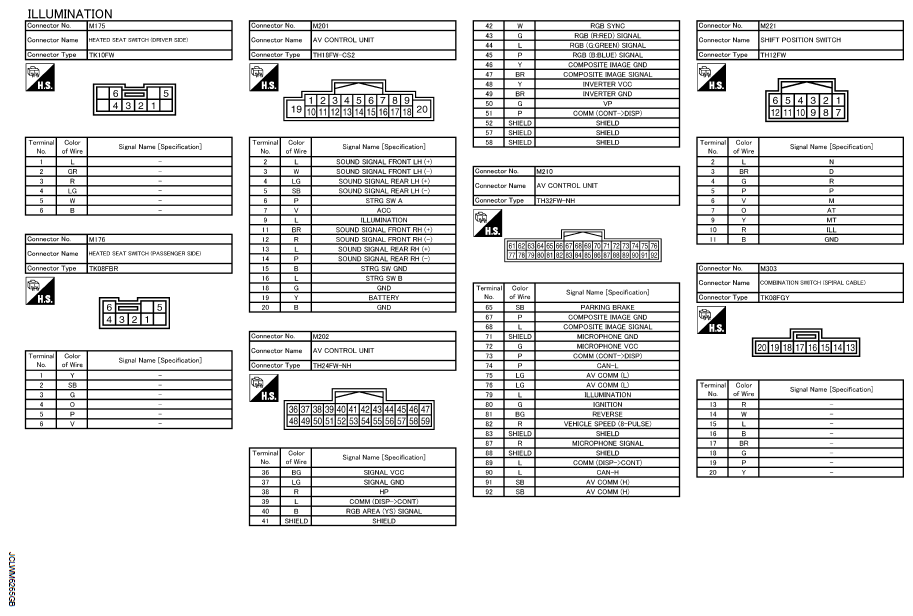

Fig 11: Identifying Illumination Connectors Terminal Identification (7 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Illumination Connectors Terminal Identification (8 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Illumination Connectors Terminal Identification (9 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Illumination Connectors Terminal Identification (10 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.

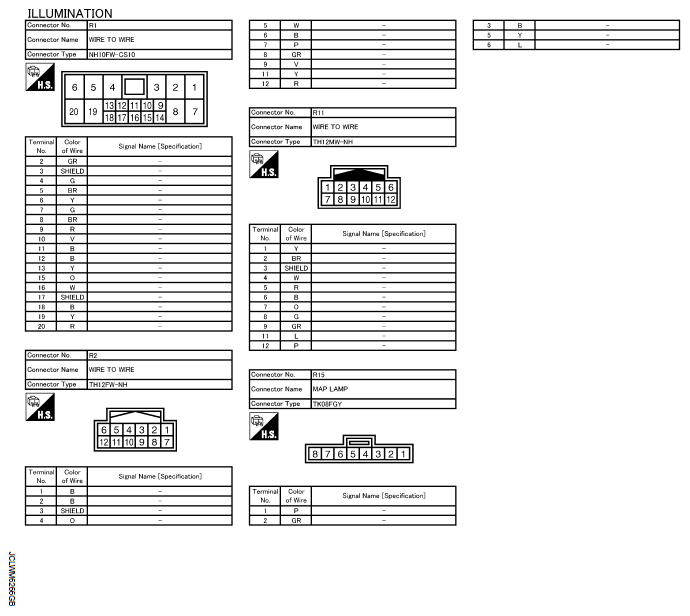

Fig 15: Identifying Illumination Connectors Terminal Identification (11 Of 11)

Courtesy of NISSAN MOTOR CO., U.S.A.
