SHIFT POSITION INDICATOR : Component Parts Location

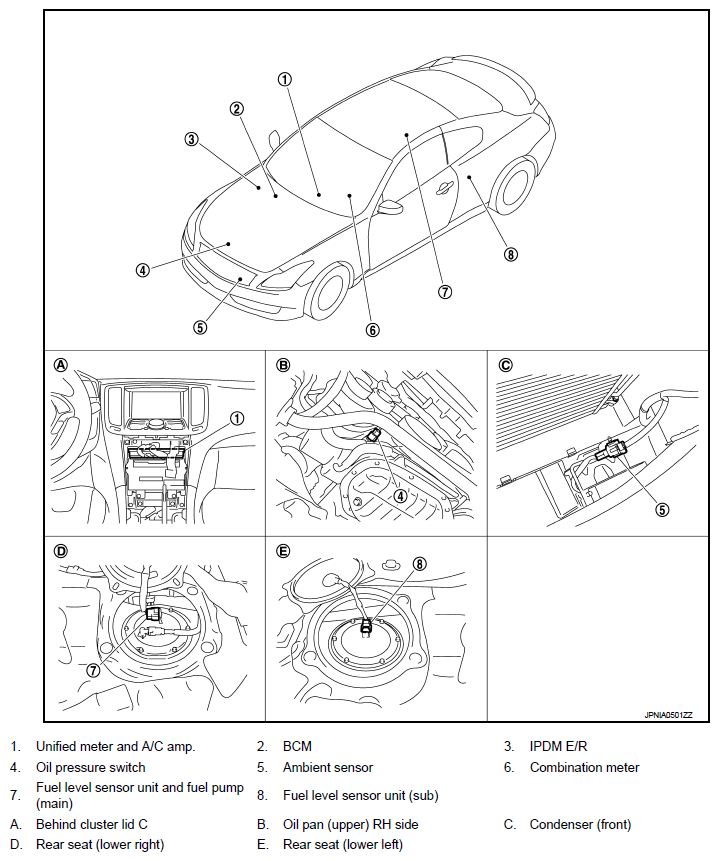

Fig 1: Identifying Shift Position Indicator Component Parts Location

G07174869

Courtesy of NISSAN MOTOR CO., U.S.A.
