Wiring Diagram - METER -

Fig 1: Meter - Wiring Diagram (1 Of 3)

G07174904

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Meter - Wiring Diagram (2 Of 3)

G07174905

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Meter - Wiring Diagram (3 Of 3)

G07174906

Courtesy of NISSAN MOTOR CO., U.S.A.

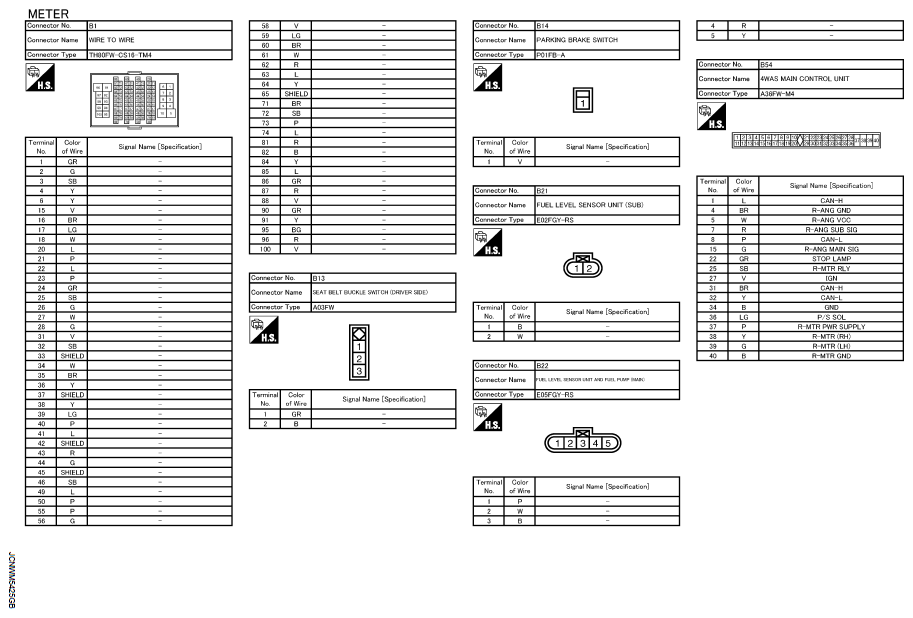

Fig 4: Identifying Meter Connectors (1 Of 8)

G07174907

Courtesy of NISSAN MOTOR CO., U.S.A.

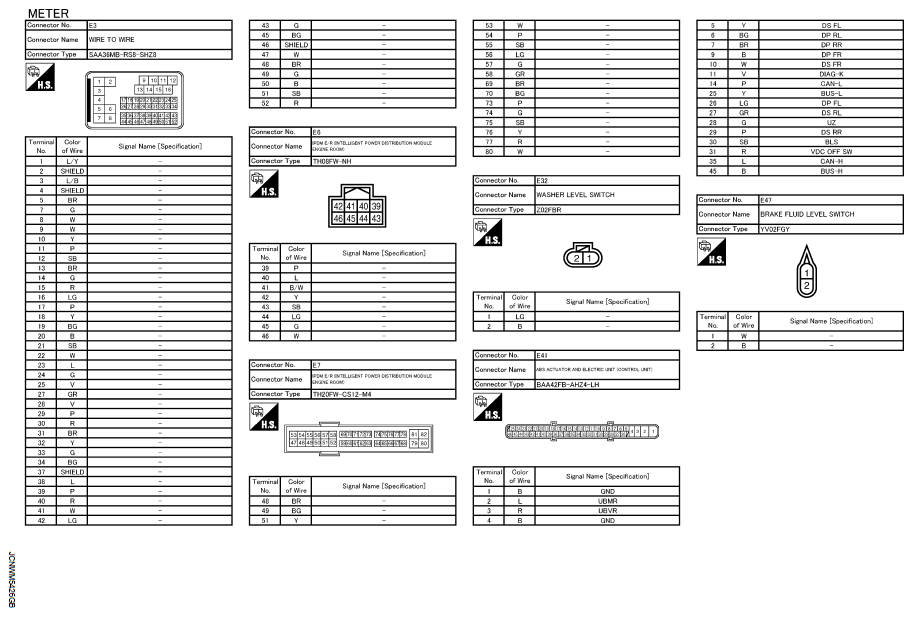

Fig 5: Identifying Meter Connectors (2 Of 8)

G07174908

Courtesy of NISSAN MOTOR CO., U.S.A.

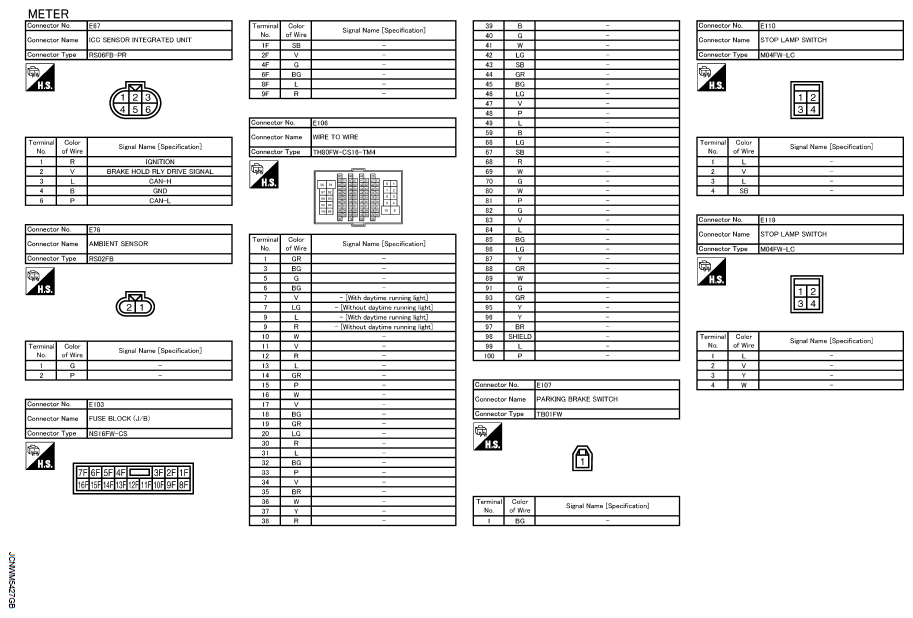

Fig 6: Identifying Meter Connectors (3 Of 8)

G07174909

Courtesy of NISSAN MOTOR CO., U.S.A.

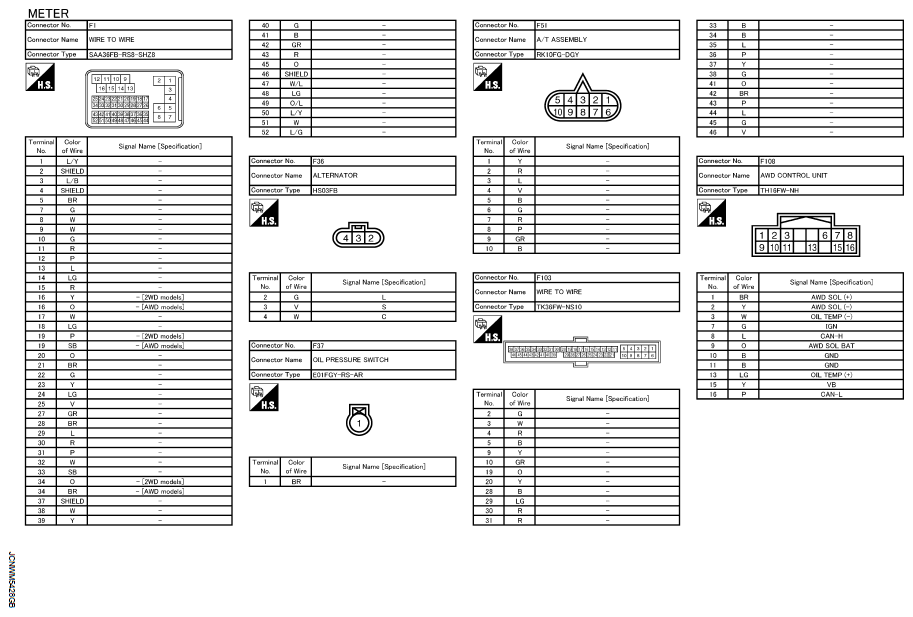

Fig 7: Identifying Meter Connectors (4 Of 8)

G07174910

Courtesy of NISSAN MOTOR CO., U.S.A.

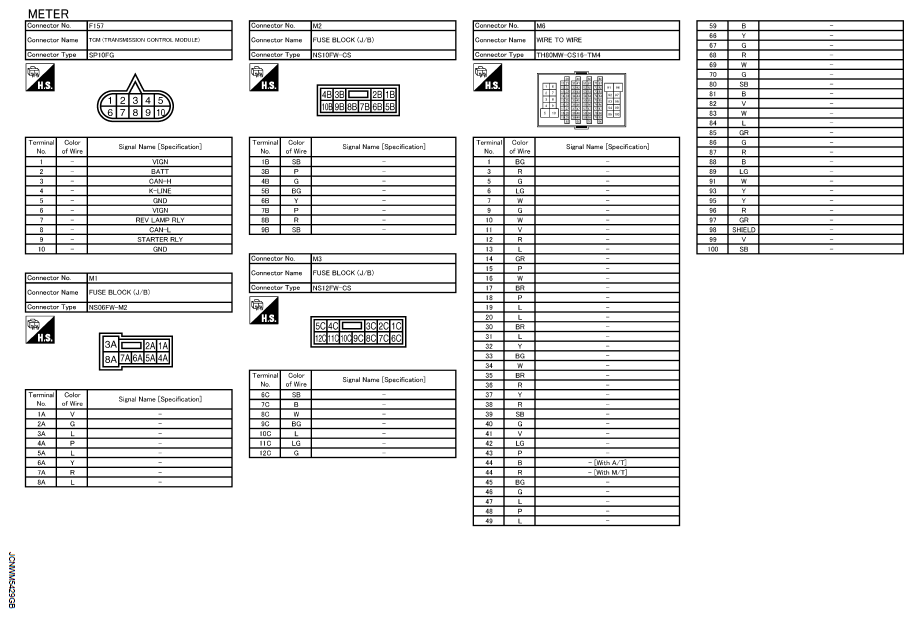

Fig 8: Identifying Meter Connectors (5 Of 8)

G07174911

Courtesy of NISSAN MOTOR CO., U.S.A.

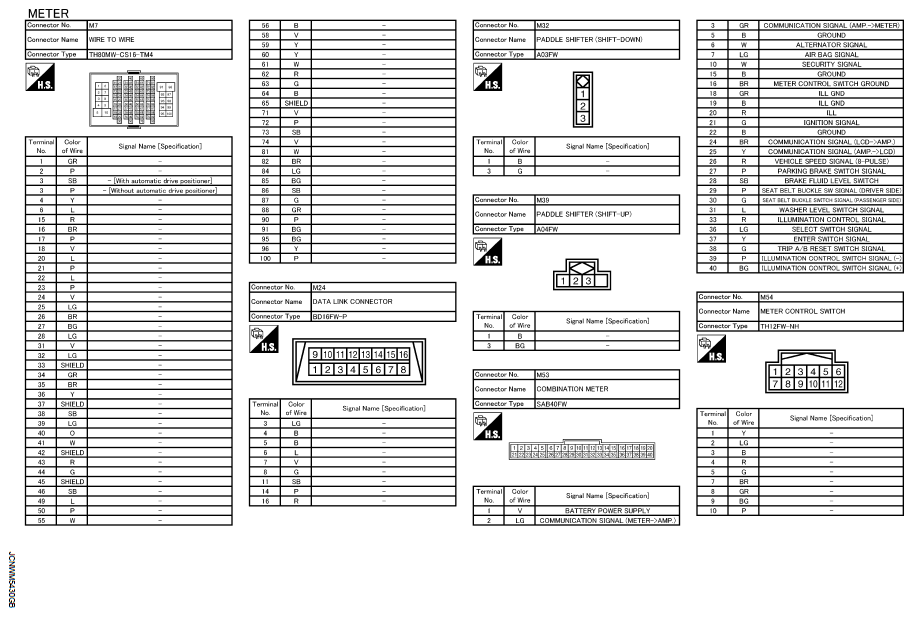

Fig 9: Identifying Meter Connectors (6 Of 8)

G07174912

Courtesy of NISSAN MOTOR CO., U.S.A.

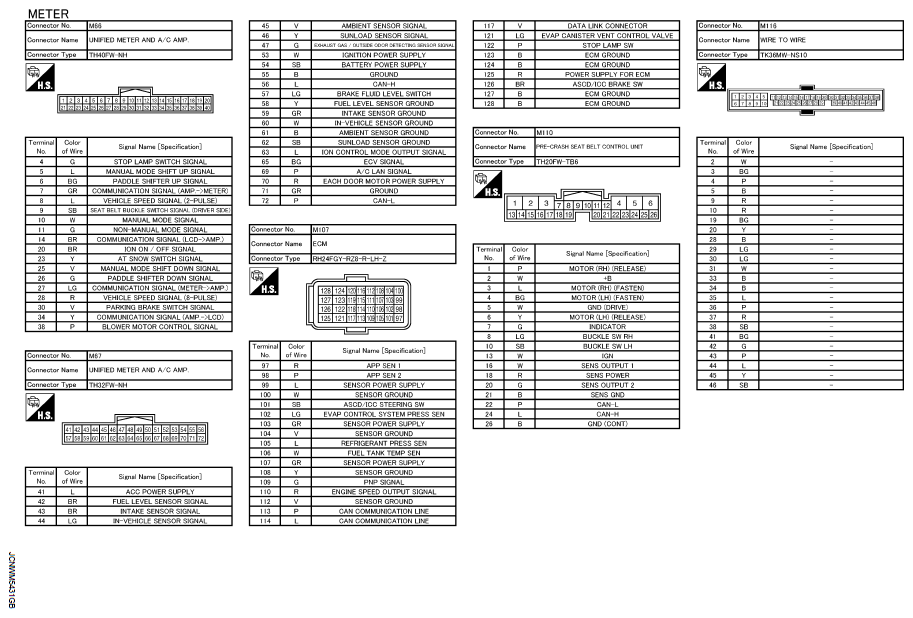

Fig 10: Identifying Meter Connectors (7 Of 8)

G07174913

Courtesy of NISSAN MOTOR CO., U.S.A.

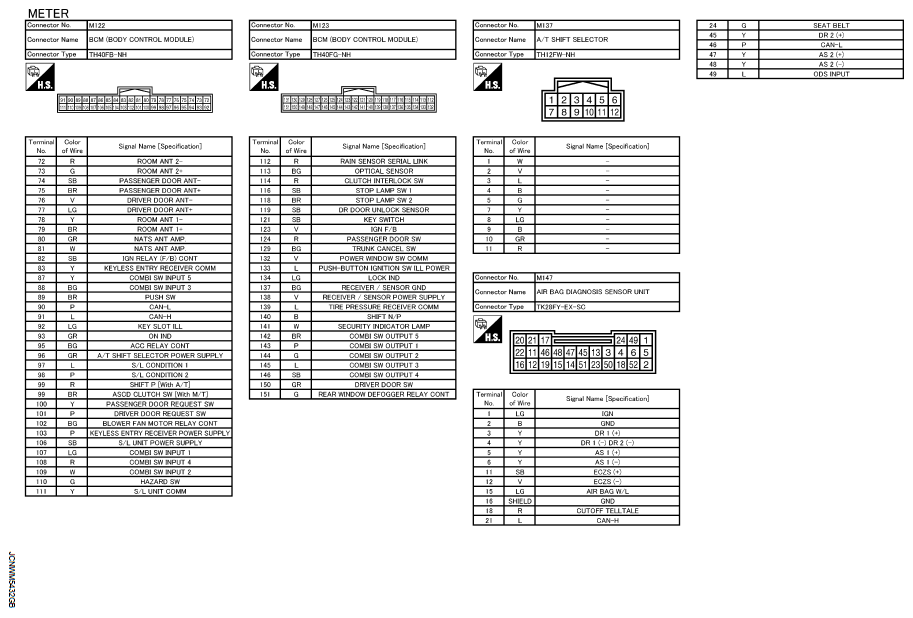

Fig 11: Identifying Meter Connectors (8 Of 8)

G07174914

Courtesy of NISSAN MOTOR CO., U.S.A.
