A/T MODELS : Exploded View

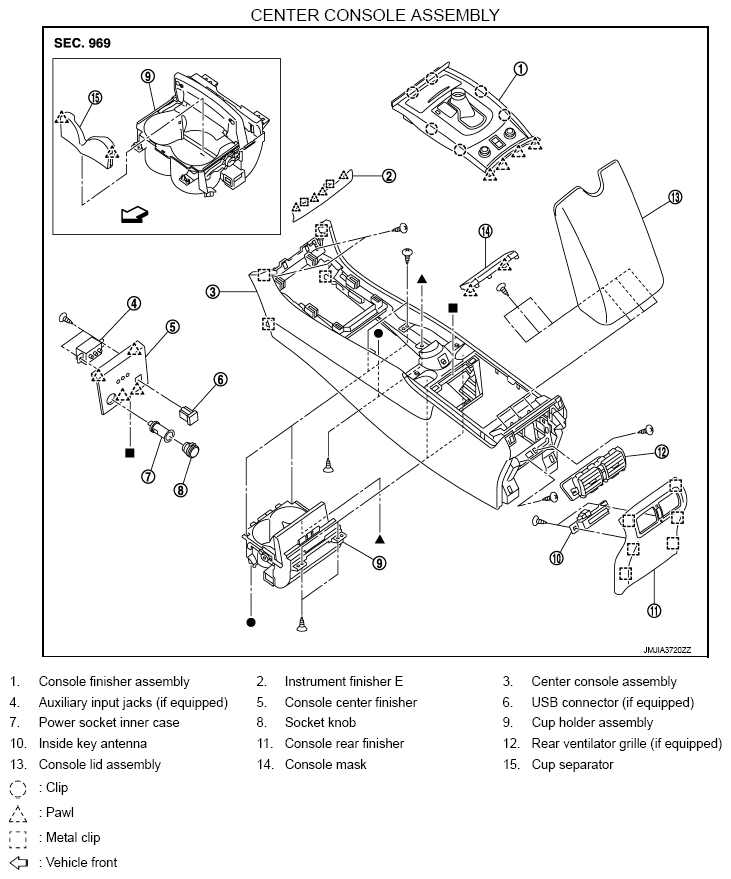

Fig 1: Exploded View Of Center Console Assembly Components (A/T Models)
G07174650Courtesy of NISSAN MOTOR CO., U.S.A.

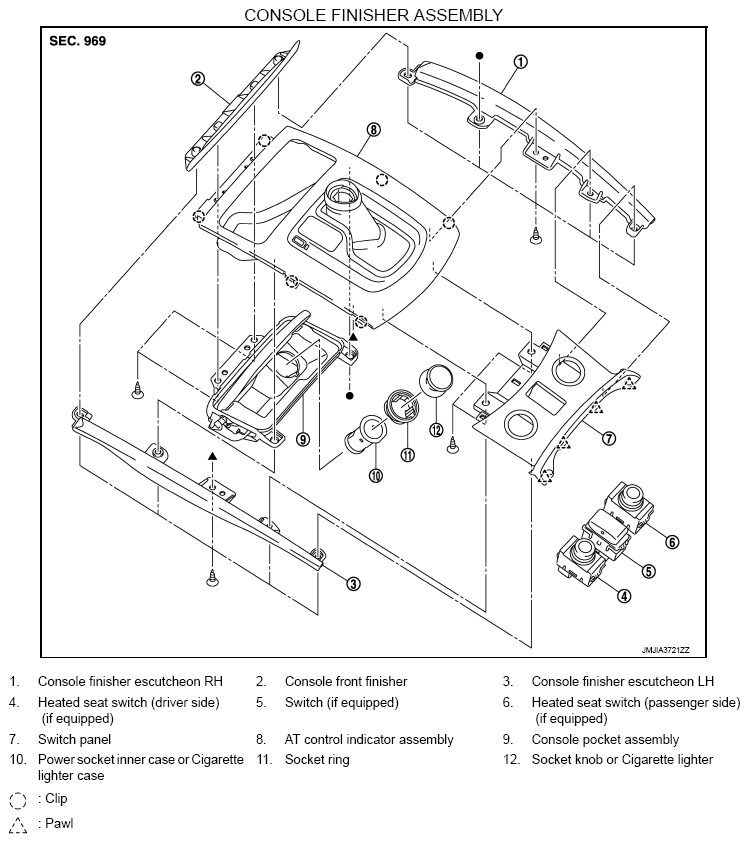

Fig 2: Exploded View Of Console Finisher Assembly Components (A/T Models)
G07174651Courtesy of NISSAN MOTOR CO., U.S.A.
