Exterior Lights
>>
Exterior Lighting System -- G37 Coupe
>>
Ecu Diagnosis Information
>>
BCM (Body Control Module)
>>
Wiring Diagram - BCM -
Wiring Diagram - BCM -

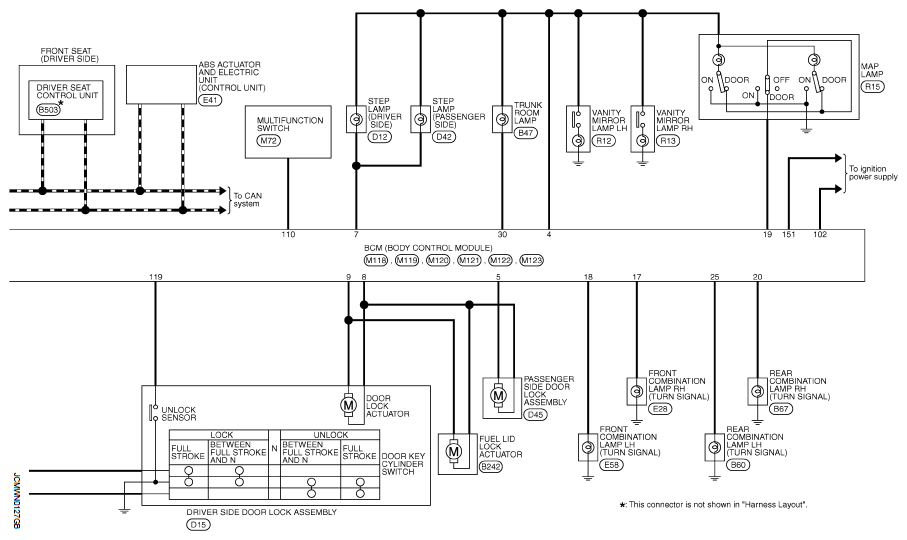

Fig 1: BCM Wiring Diagram (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

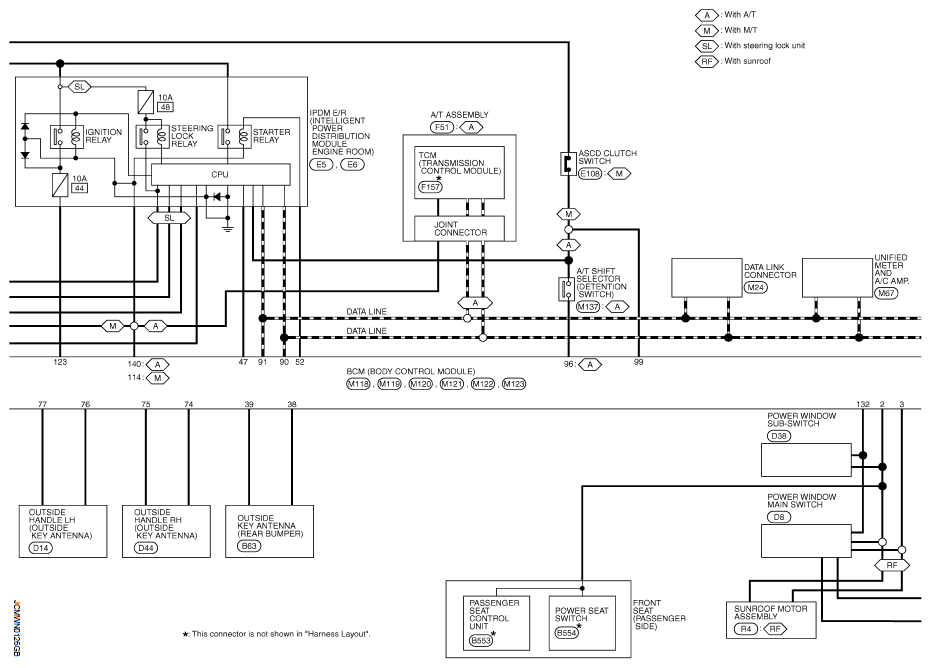

Fig 2: BCM Wiring Diagram (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

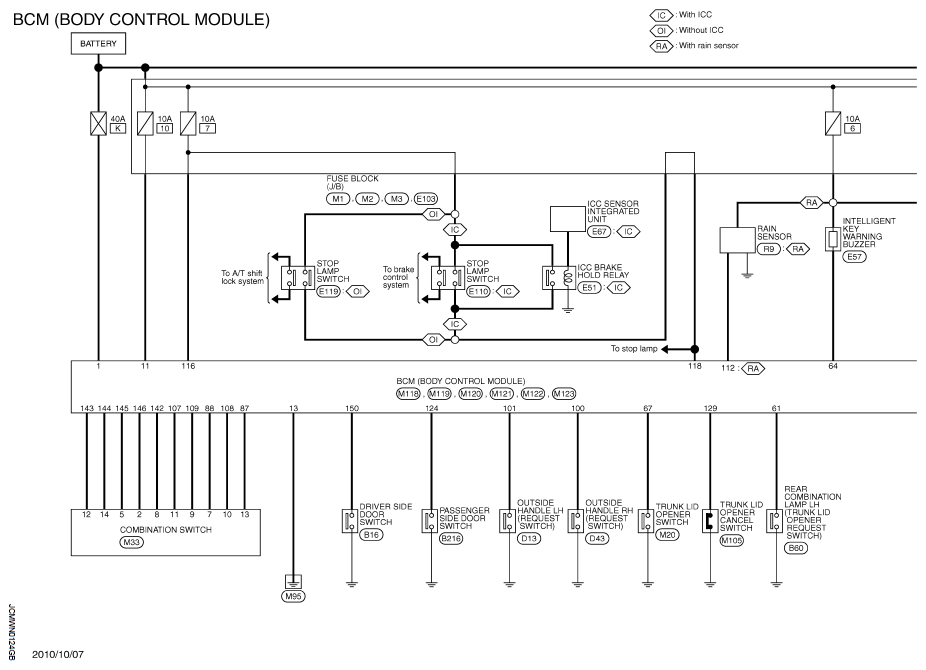

Fig 3: BCM Wiring Diagram (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

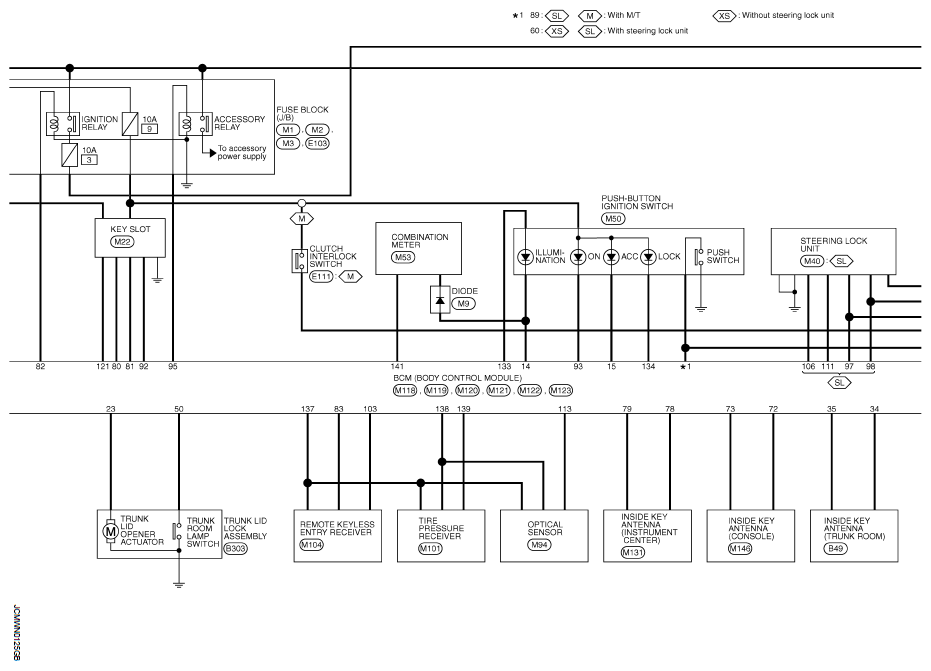

Fig 4: BCM Wiring Diagram (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

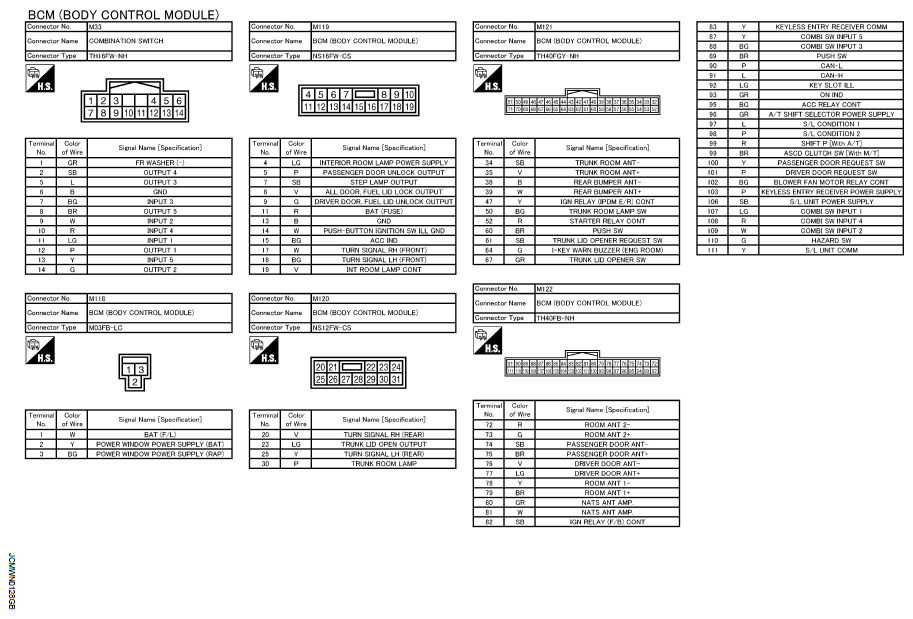

Fig 5: Identifying BCM Connectors (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

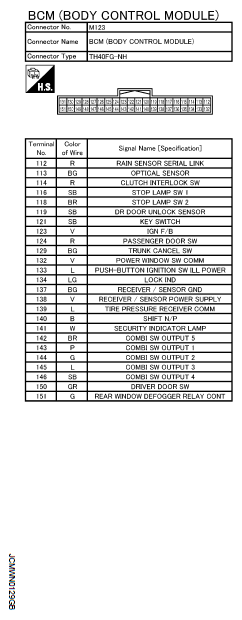

Fig 6: Identifying BCM Connectors (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
