Wiring Diagram - STOP LAMP -

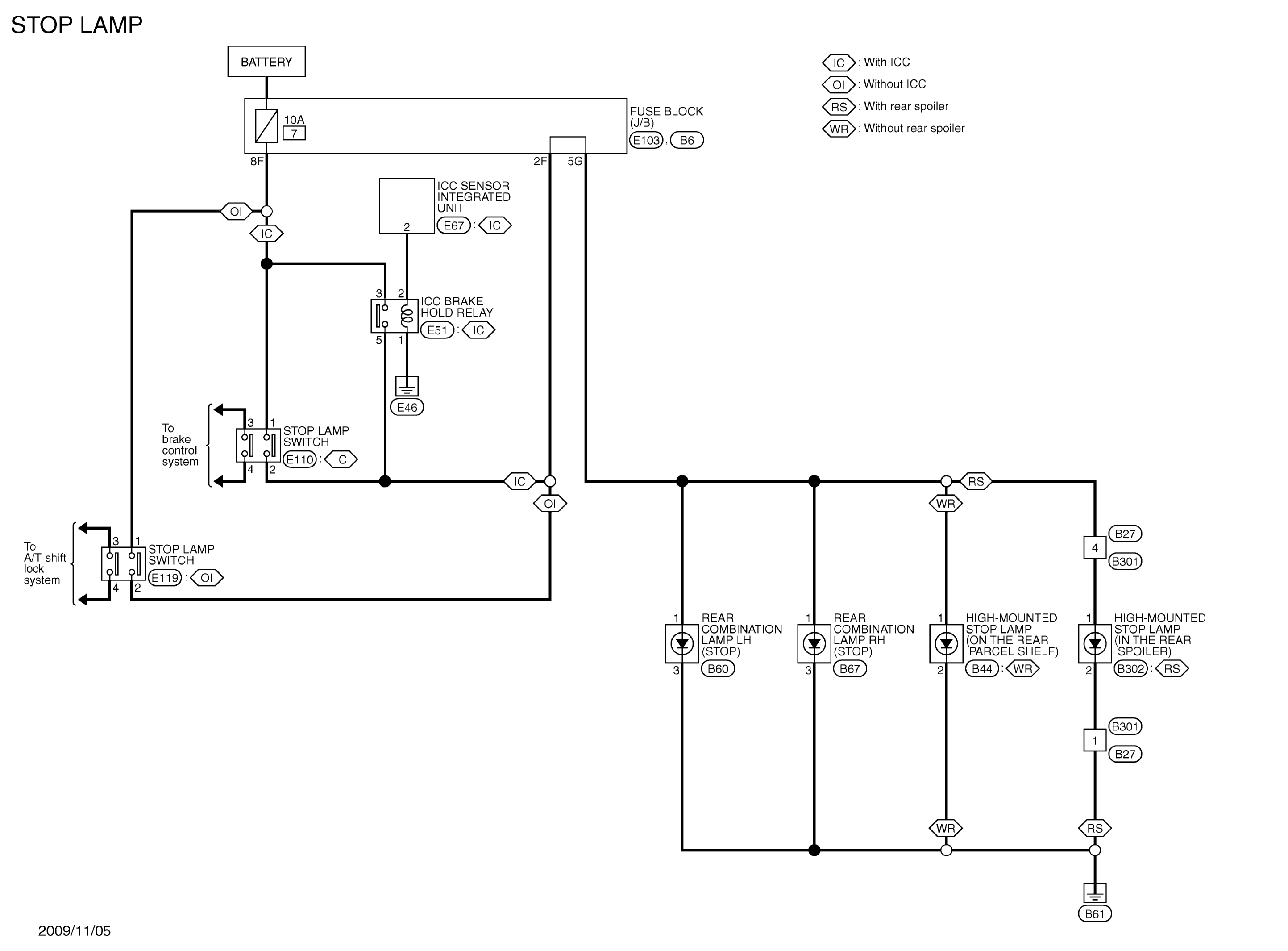

Fig 1: Stop Lamp Wiring Diagram
G06619166Courtesy of NISSAN MOTOR CO., U.S.A.

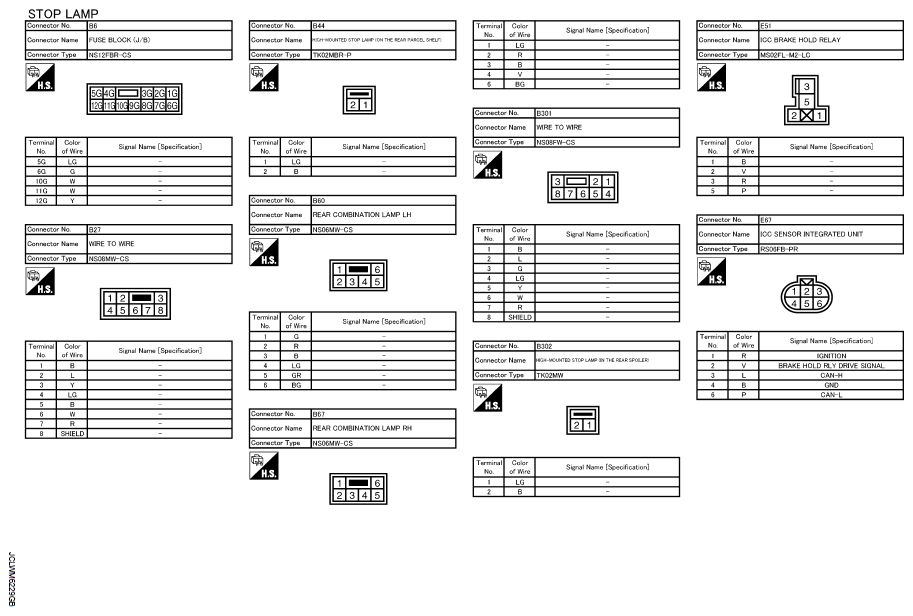

Fig 2: Identifying Stop Lamp Connectors (1 Of 2)
G07174739Courtesy of NISSAN MOTOR CO., U.S.A.

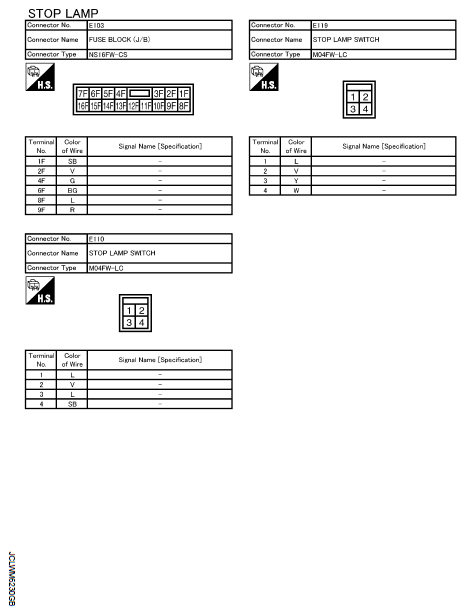

Fig 3: Identifying Stop Lamp Connectors (2 Of 2)
G07174740Courtesy of NISSAN MOTOR CO., U.S.A.
