Exterior Lighting System -- G37 Coupe
>>
DTC/Circuit Diagnosis
>>
Headlamp System
>>
Wiring Diagram - HEADLAMP -
Wiring Diagram - HEADLAMP -

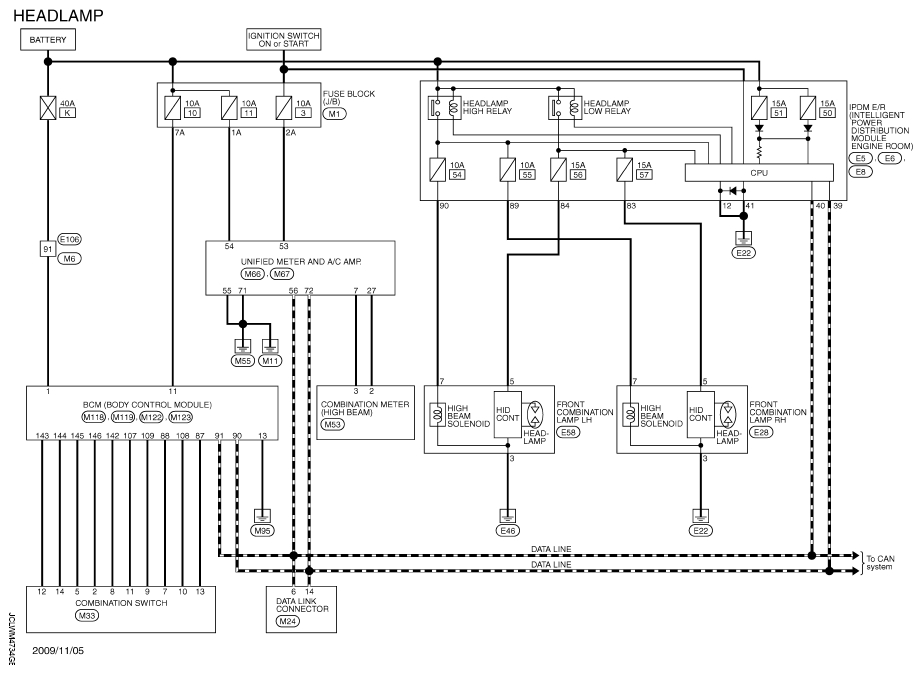

Fig 1: Headlamp System Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

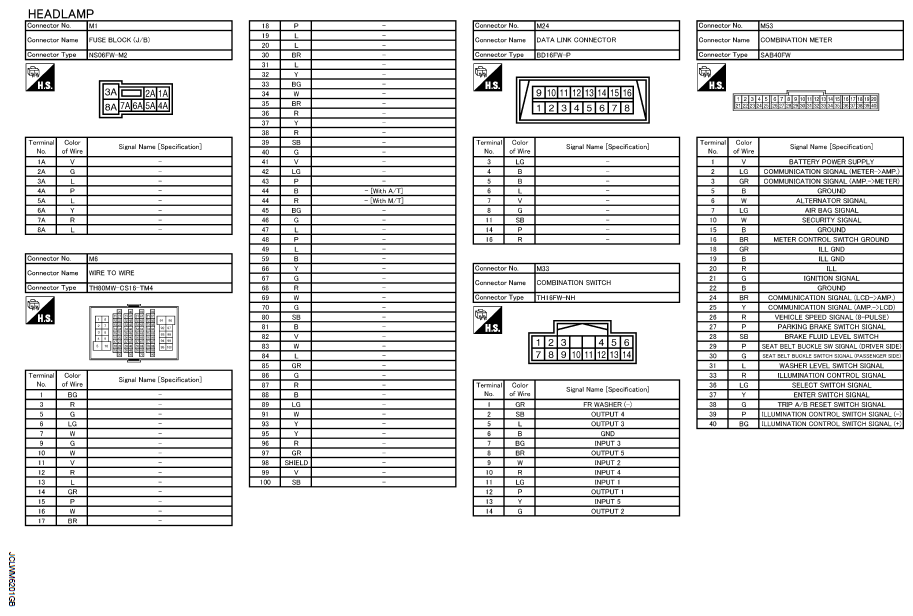

Fig 2: Identifying Headlamp System Connectors (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

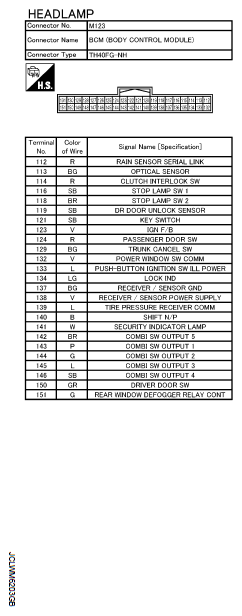

Fig 3: Identifying Headlamp System Connectors (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

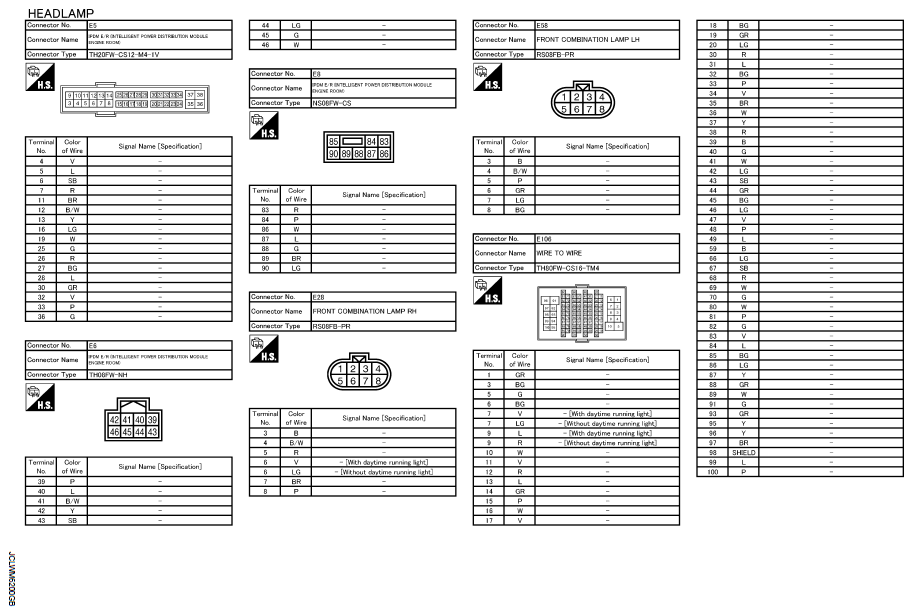

Fig 4: Identifying Headlamp System Connectors (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

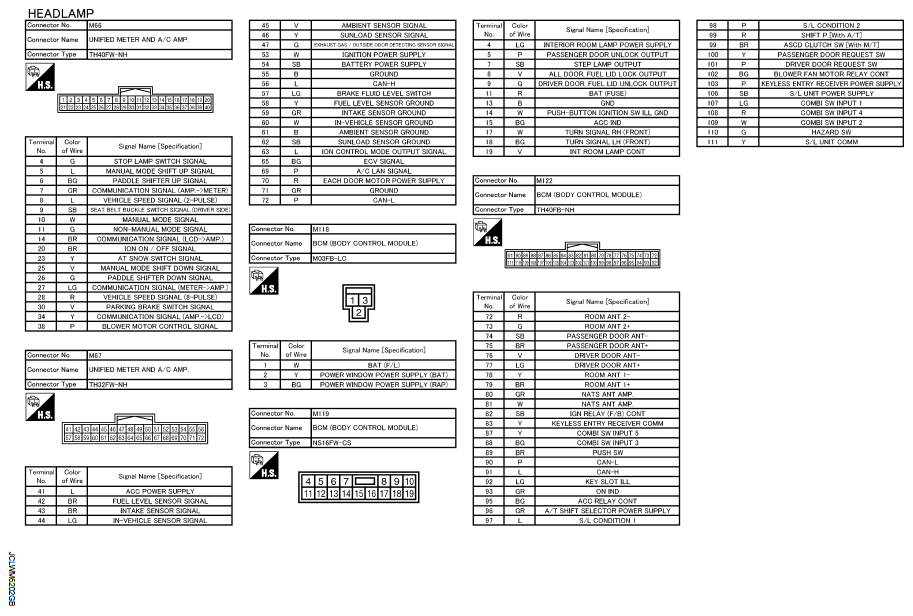

Fig 5: Identifying Headlamp System Connectors (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
