Wiring Diagram - FRONT FOG LAMP -
Wiring Diagram - FRONT FOG LAMP -

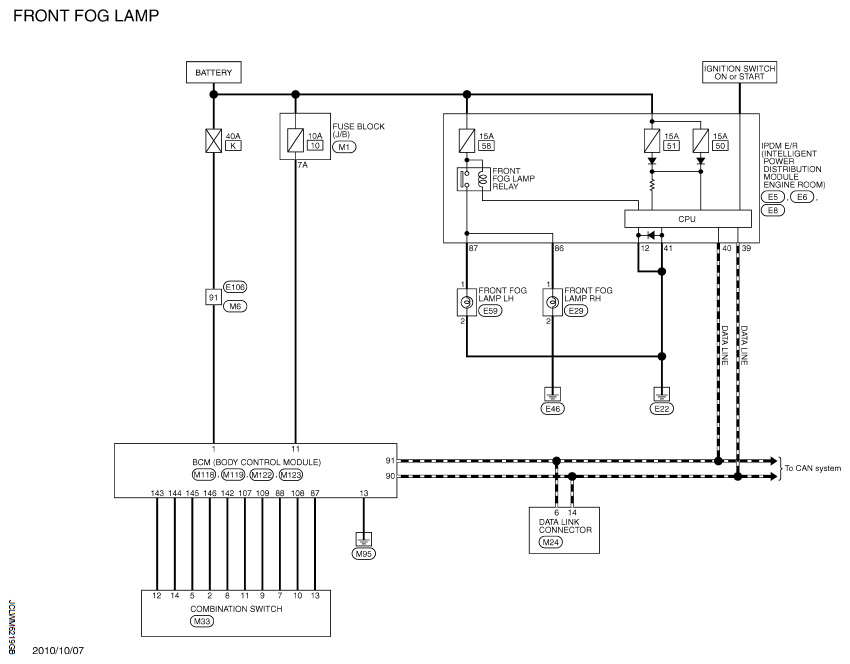

Fig 1: Front Fog Lamp Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

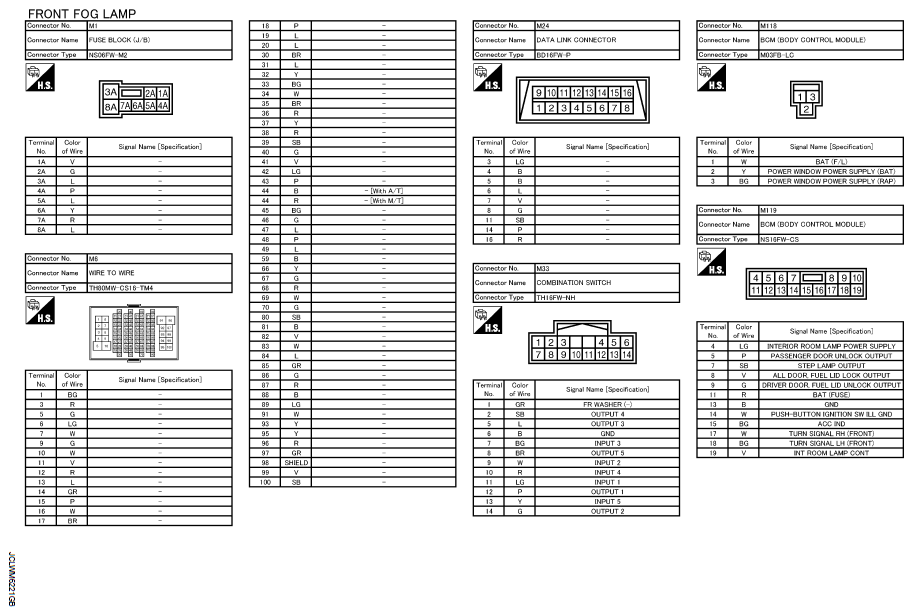

Fig 2: Identifying Front Fog Lamp Connectors (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

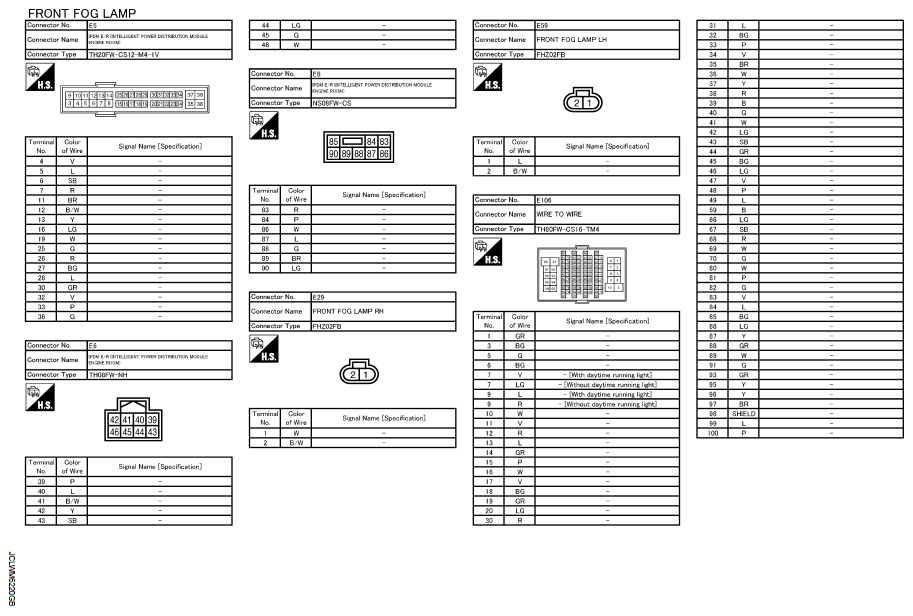

Fig 3: Identifying Front Fog Lamp Connectors (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

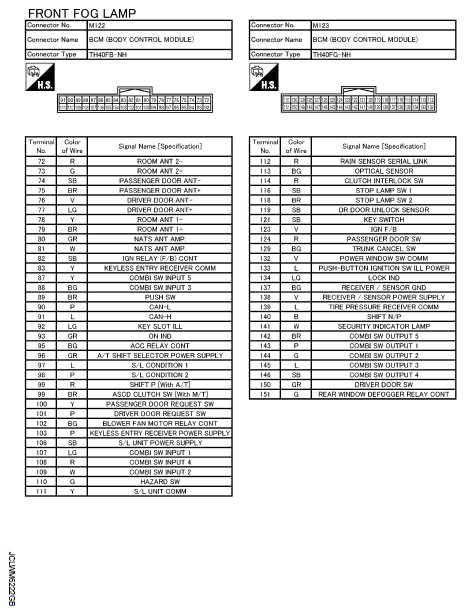

Fig 4: Identifying Front Fog Lamp Connectors (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
