Exterior Lighting System -- G37 Coupe
>>
DTC/Circuit Diagnosis
>>
Back-Up Lamp
>>
Wiring Diagram - BACK-UP LAMP -
Wiring Diagram - BACK-UP LAMP -

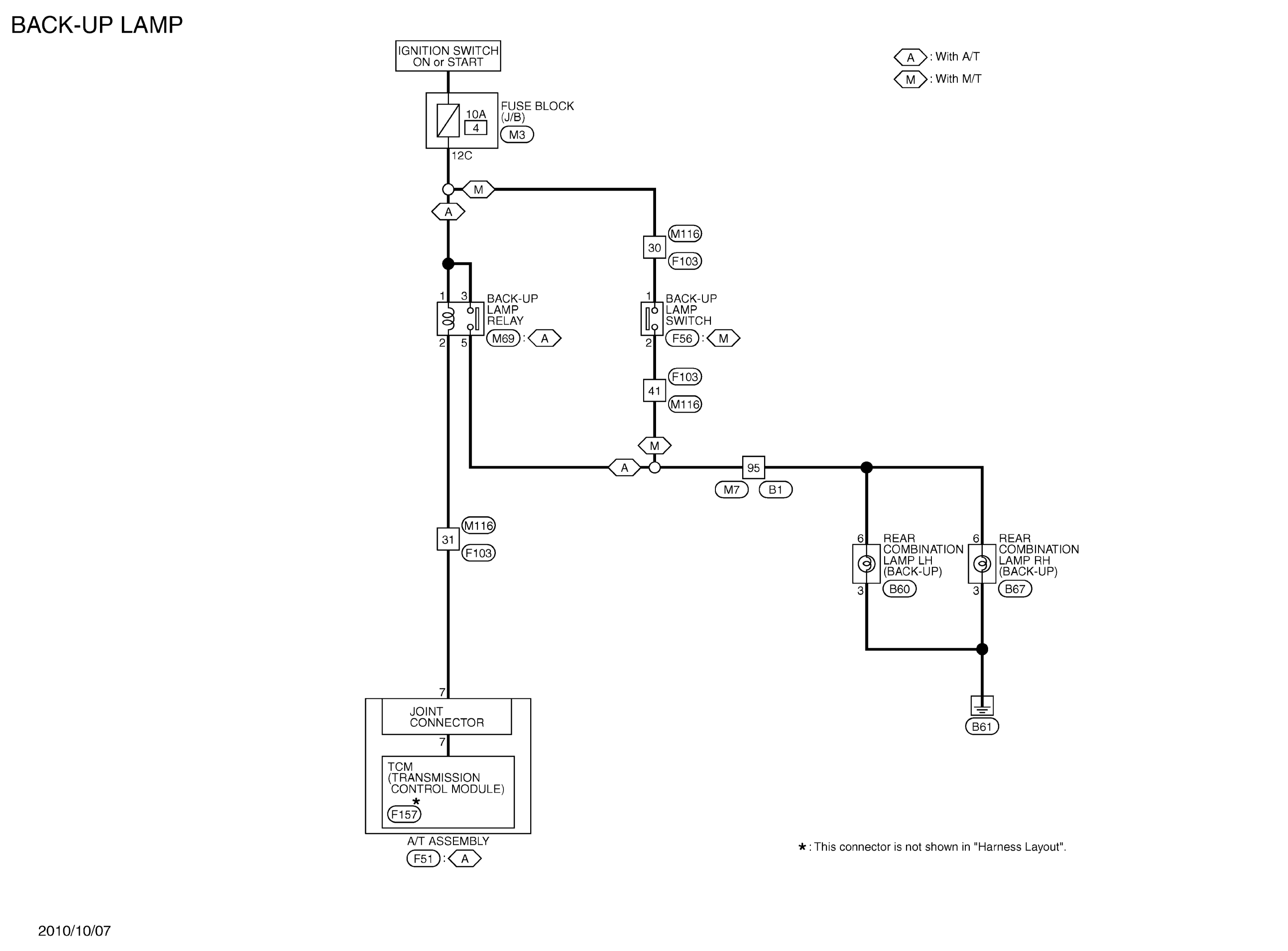

Fig 1: Back-Up Lamp Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

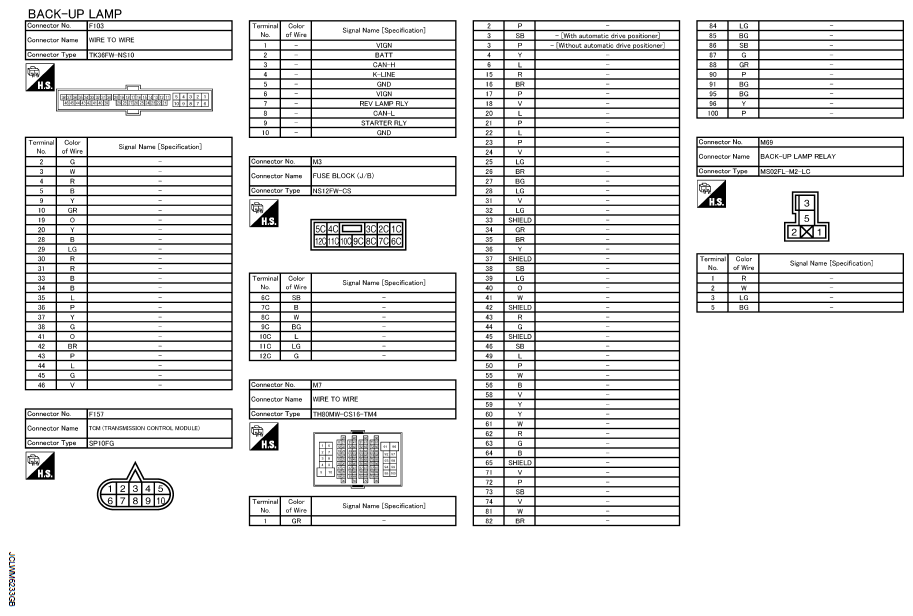

Fig 2: Identifying Back-Up Lamp Connectors (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

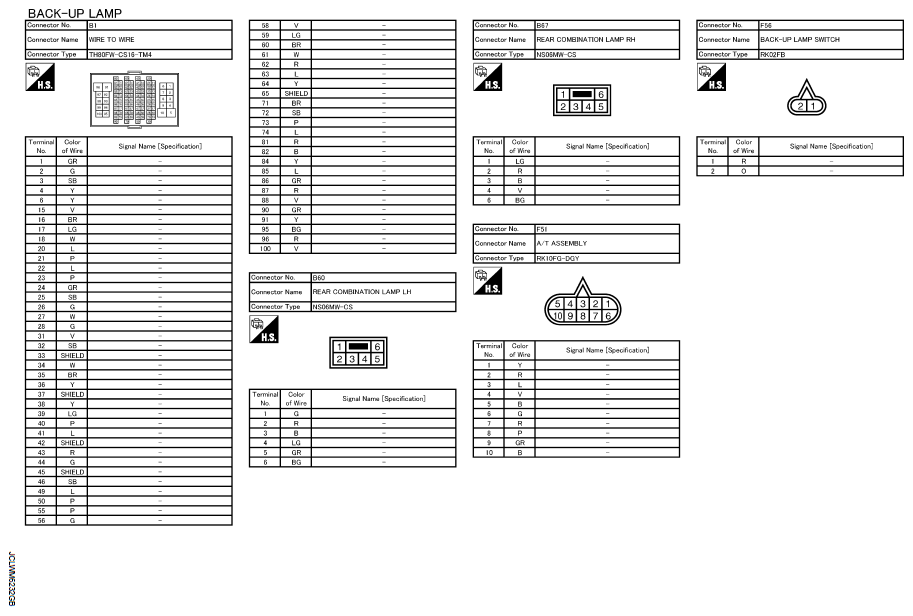

Fig 3: Identifying Back-Up Lamp Connectors (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Identifying Back-Up Lamp Connectors (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
