Wiring Diagram - AUTO LIGHT SYSTEM -

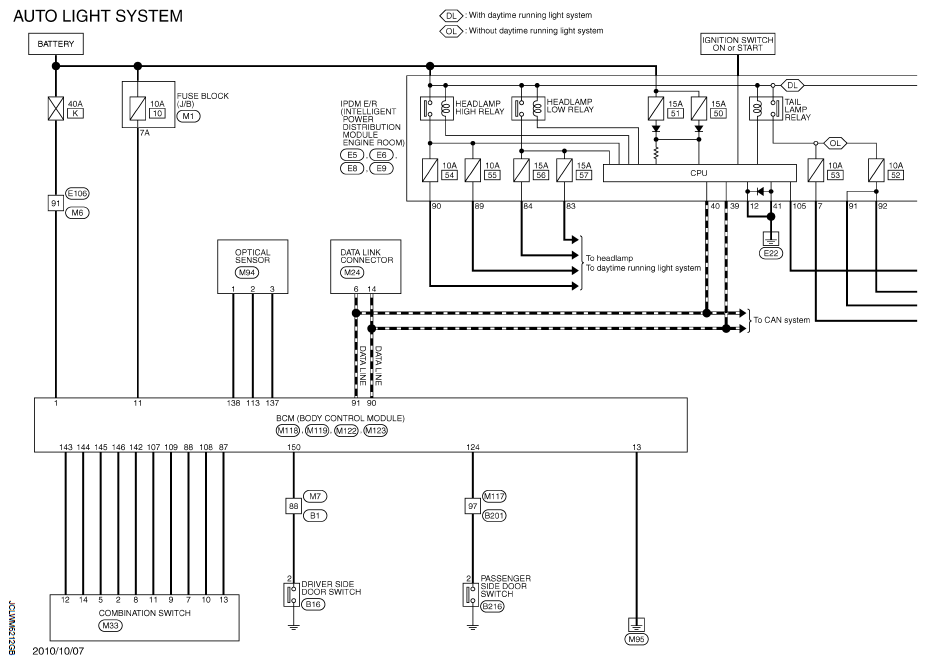

Fig 1: Auto Light System Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Auto Light System Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

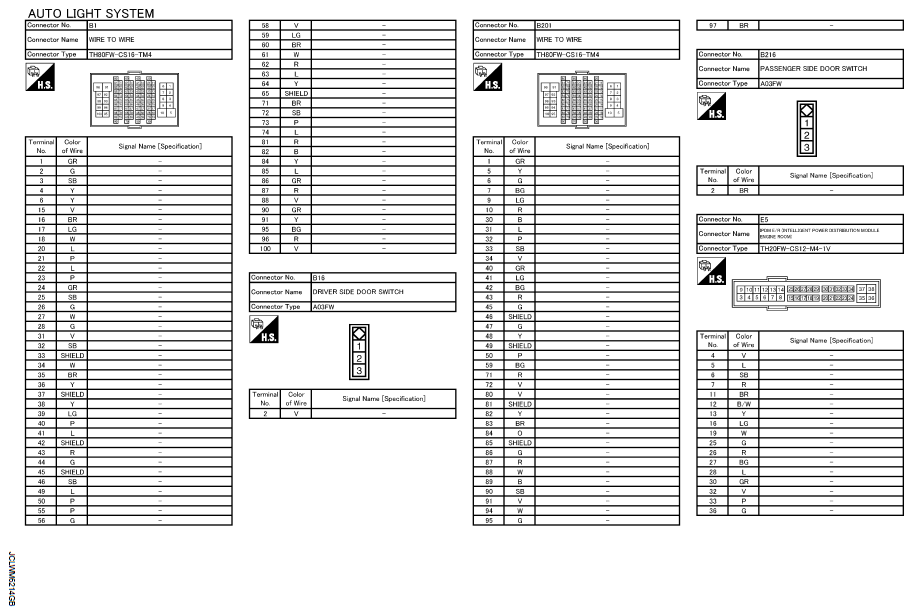

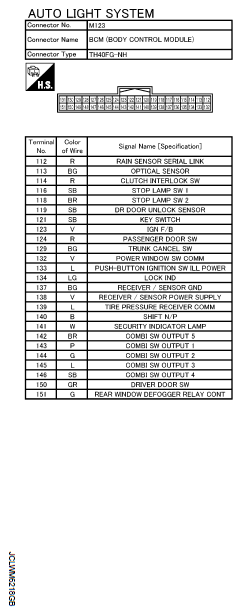

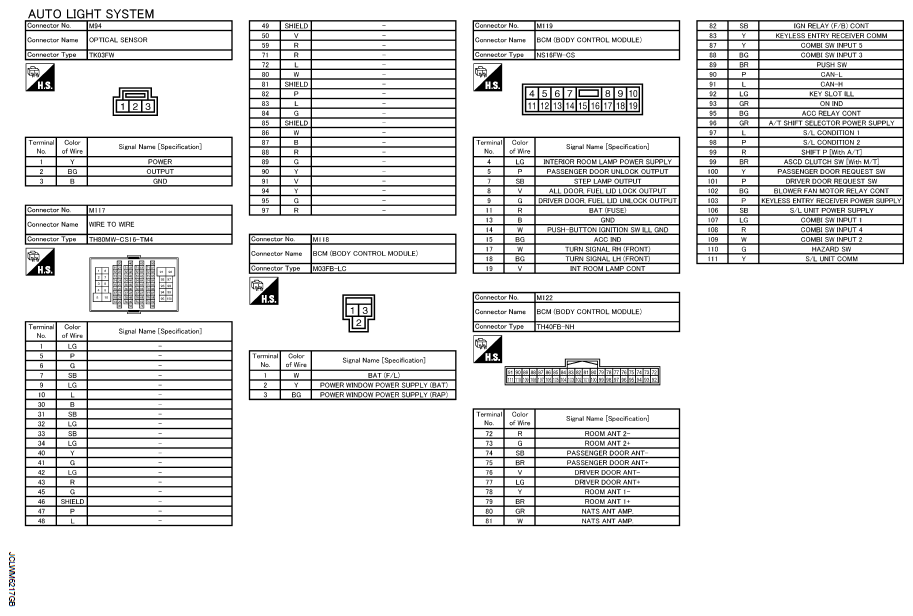

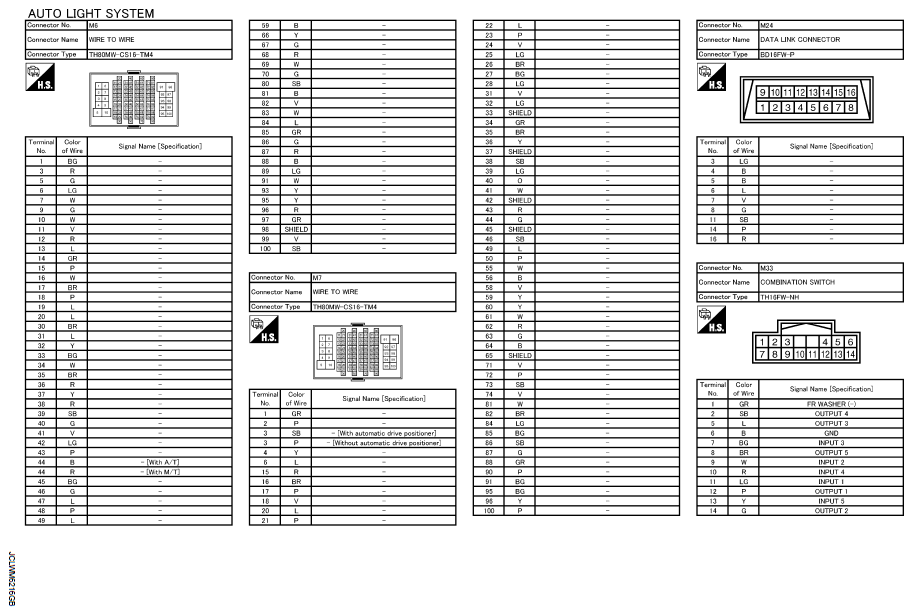

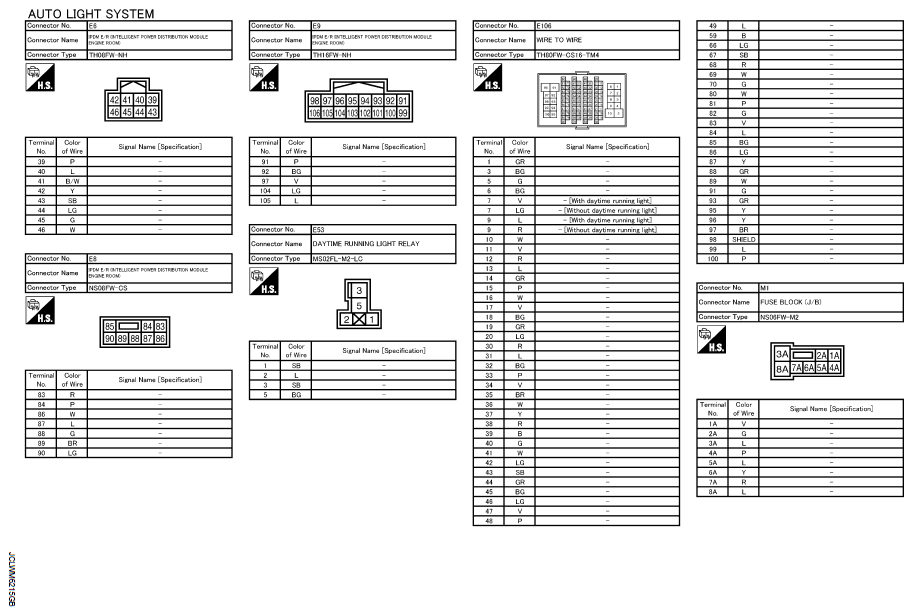

Fig 3: Identifying Auto Light System Connectors (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Auto Light System Connectors (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Auto Light System Connectors (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Auto Light System Connectors (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Auto Light System Connectors (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
