Symptom Table

  1. Perform "Data Monitor" of CONSULT-III to check for any malfunctioning item.
  2. Check the malfunction combinations.

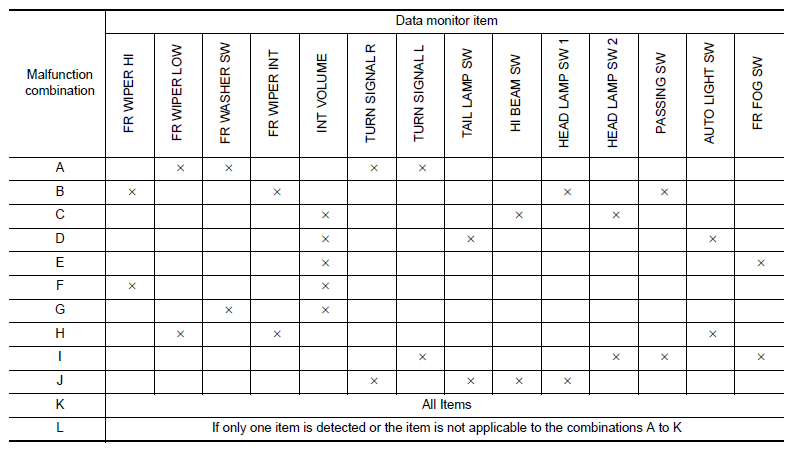

    Fig 1: Combination Switch System Symptom Chart
    G07173662Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Identify the malfunctioning part from the agreed combination and repair or replace the part.
    MALFUNCTION COMBINATION REFERENCE CHART

    Malfunction combination Malfunctioning part Repair or replace
    A Combination switch INPUT 1 circuit Inspect the combination switch input circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
    B Combination switch INPUT 2 circuit
    C Combination switch INPUT 3 circuit
    D Combination switch INPUT 4 circuit
    E Combination switch INPUT 5 circuit
    F Combination switch OUTPUT 1 circuit Inspect the combination switch output circuit applicable to the malfunctioning part. Refer to "DIAGNOSIS PROCEDURE ".
    G Combination switch OUTPUT 2 circuit
    H Combination switch OUTPUT 3 circuit
    I Combination switch OUTPUT 4 circuit
    J Combination switch OUTPUT 5 circuit
    K BCM Replace BCM. Refer to "EXPLODED VIEW "
    L Combination switch Replace the combination switch.
