ACCESSORY POWER SUPPLY FUSE No. 20

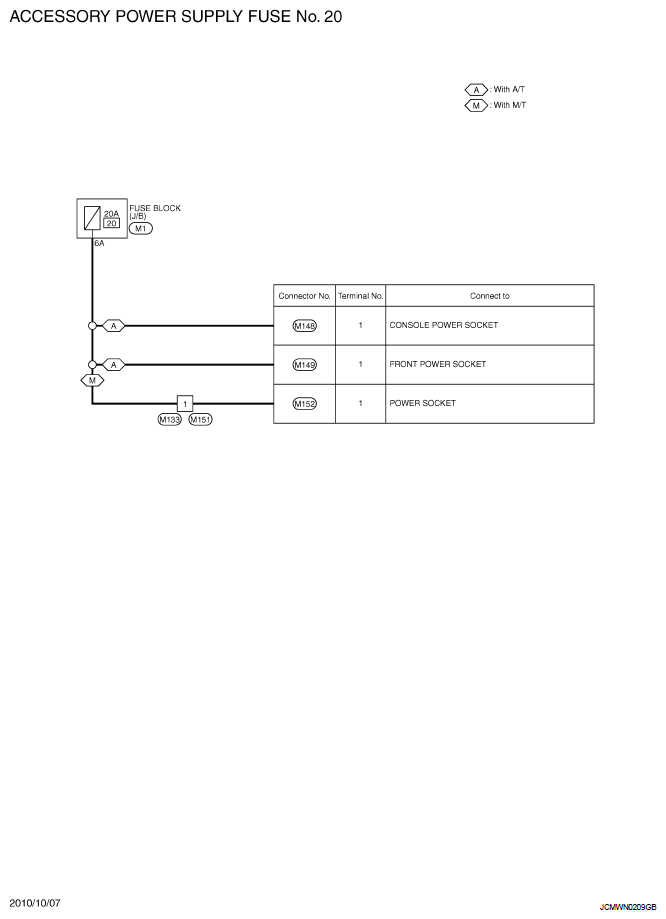

Fig 1: Accessory Power Supply Fuse No. 20 - Wiring Diagram
G07172372Courtesy of NISSAN MOTOR CO., U.S.A.

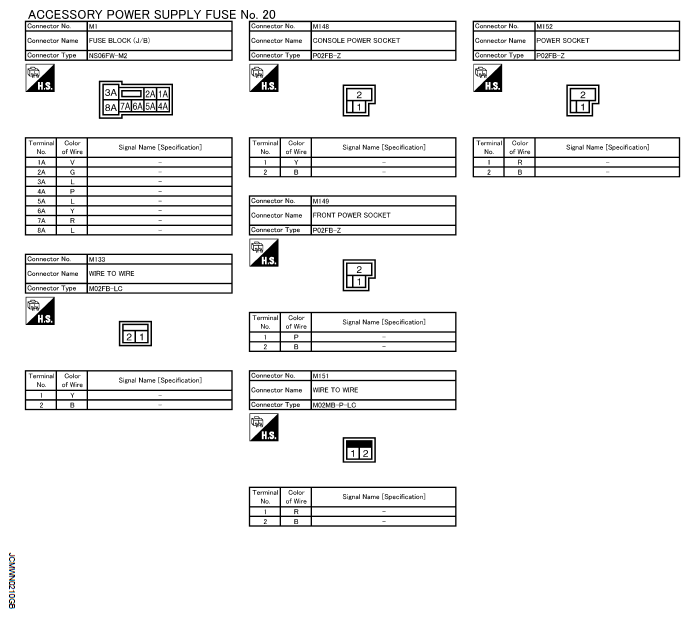

Fig 2: Identifying Accessory Power Supply Fuse No. 20 Connectors Terminal Identification
G07172373Courtesy of NISSAN MOTOR CO., U.S.A.
