Fuse, Connector and Terminal Arrangement

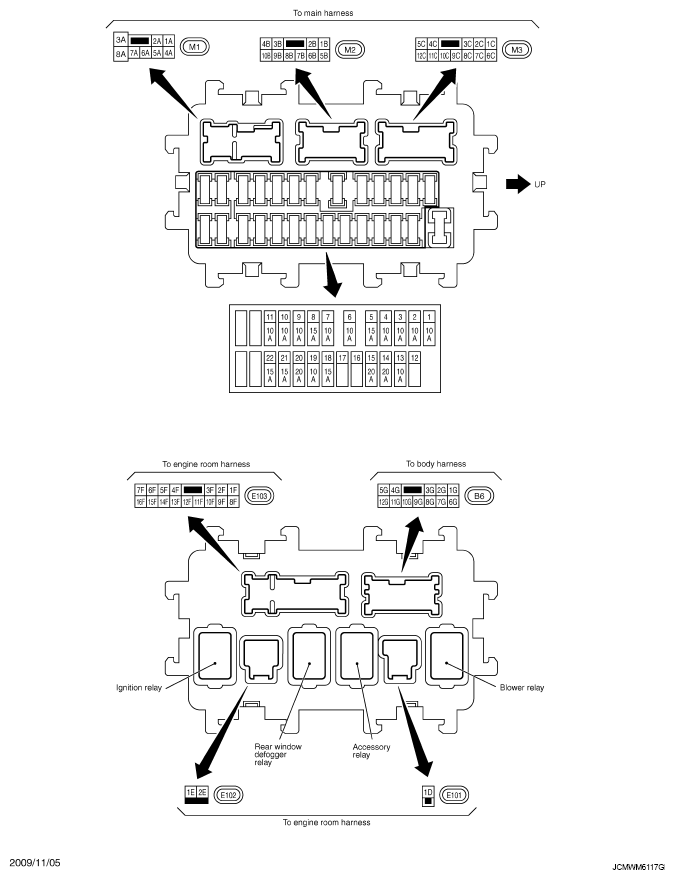

Fig 1: Identifying Fuse, Connector And Terminal Arrangement

G06626994

Courtesy of NISSAN MOTOR CO., U.S.A.
