Aiming Adjustment Screw

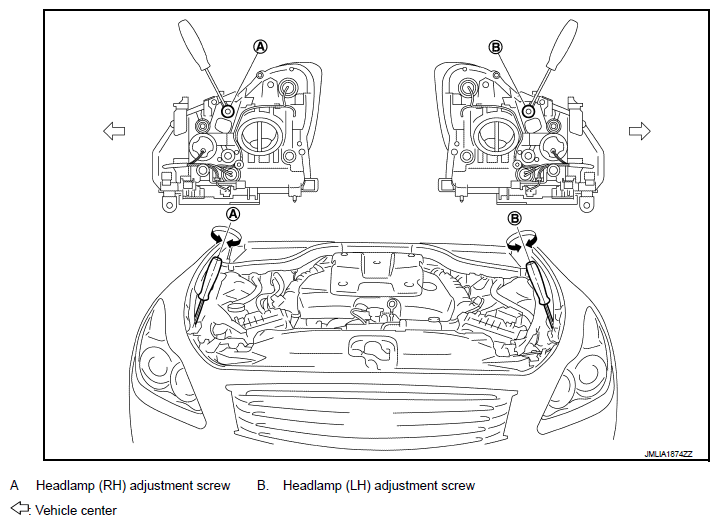

Fig 1: Identifying Left Hand And Right Hand Adjusting Screw
G07174835Courtesy of NISSAN MOTOR CO., U.S.A.
ADJUSTMENT SCREW REFERENCE CHART

Adjustment screw Screw driver rotation Facing direction
A Headlamp (RH) Clockwise UP
Counterclockwise DOWN
B Headlamp (LH) Clockwise UP
Counterclockwise DOWN
