Wiring Diagram - METER -

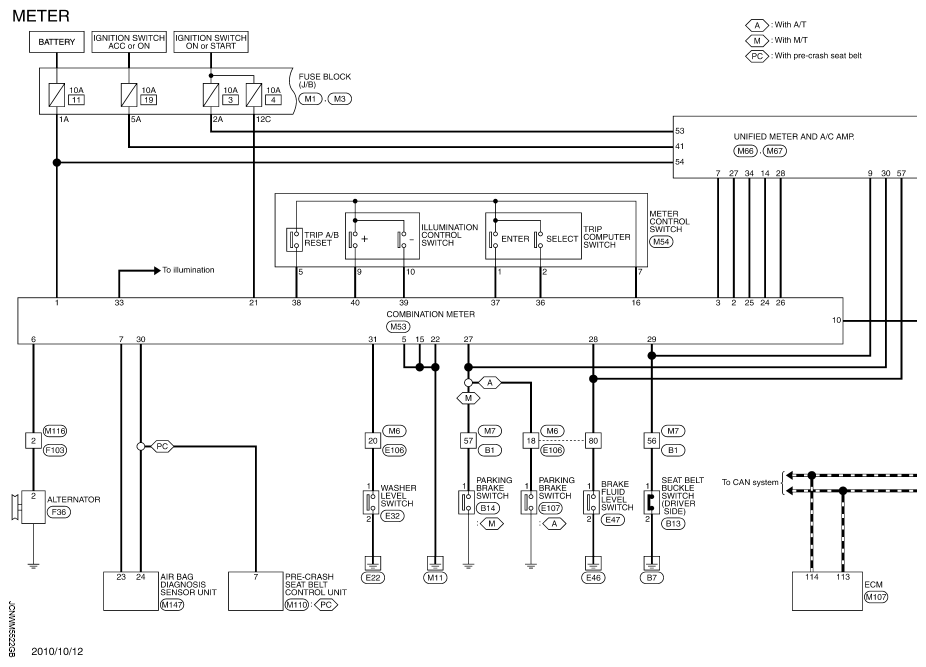

Fig 1: Meter - Wiring Diagram (1 Of 3)

G07159255

Courtesy of NISSAN MOTOR CO., U.S.A.

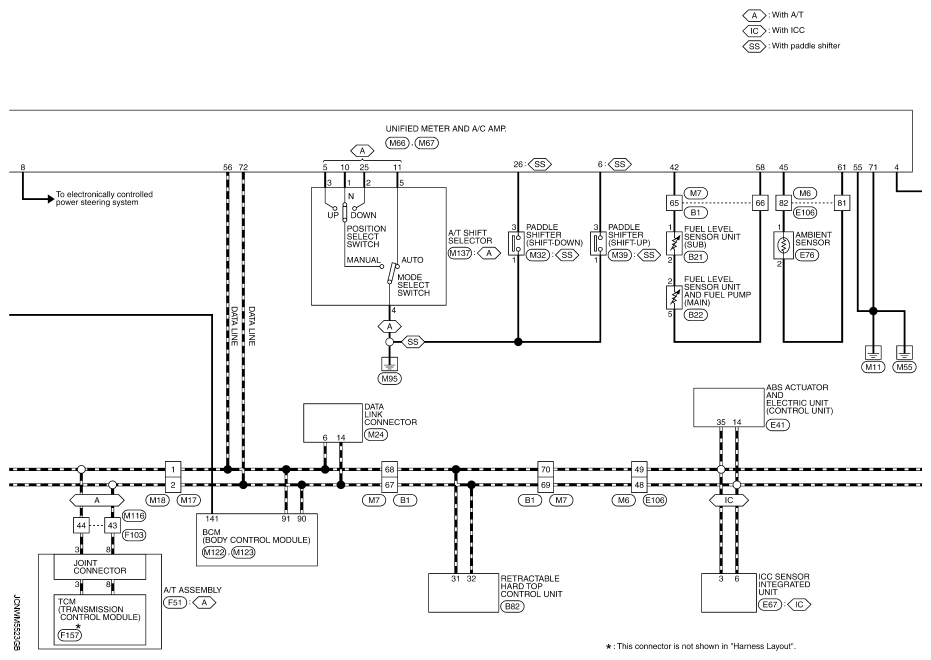

Fig 2: Meter - Wiring Diagram (2 Of 3)

G07159256

Courtesy of NISSAN MOTOR CO., U.S.A.

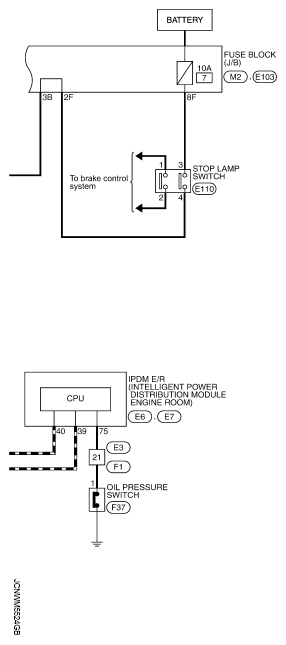

Fig 3: Meter - Wiring Diagram (3 Of 3)

G07159257

Courtesy of NISSAN MOTOR CO., U.S.A.

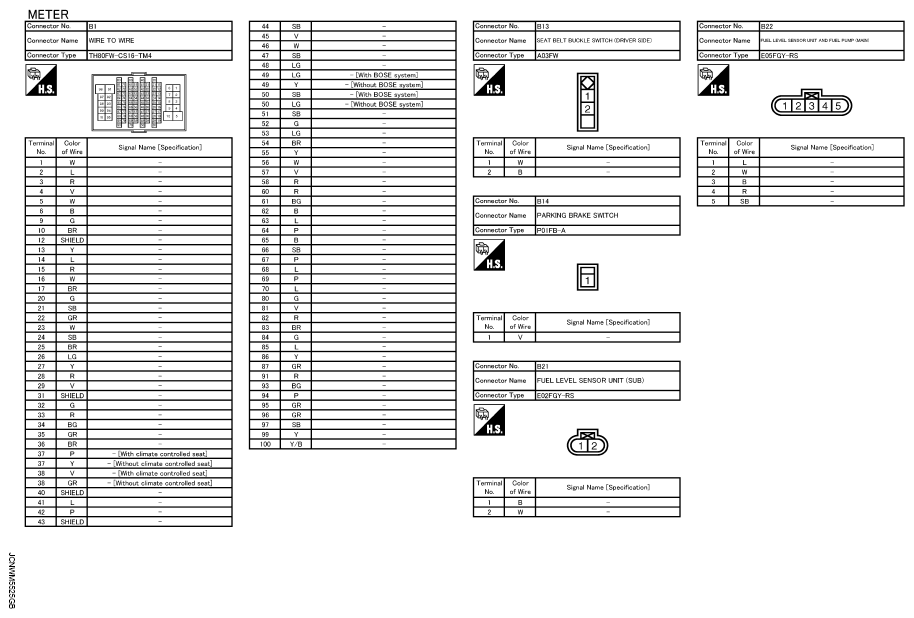

Fig 4: Meter Connector End Views (1 Of 9)

G07159258

Courtesy of NISSAN MOTOR CO., U.S.A.

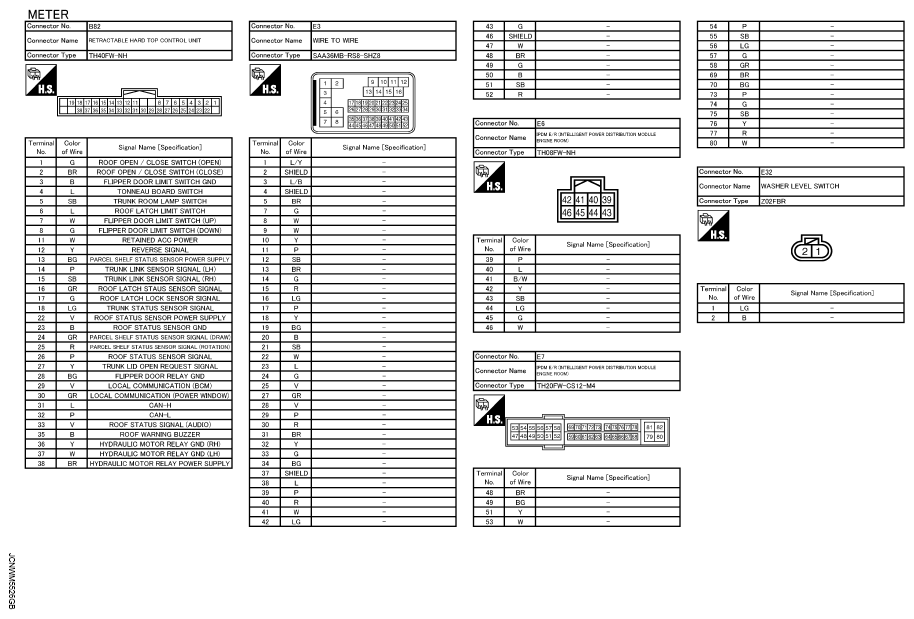

Fig 5: Meter Connector End Views (2 Of 9)

G07159259

Courtesy of NISSAN MOTOR CO., U.S.A.

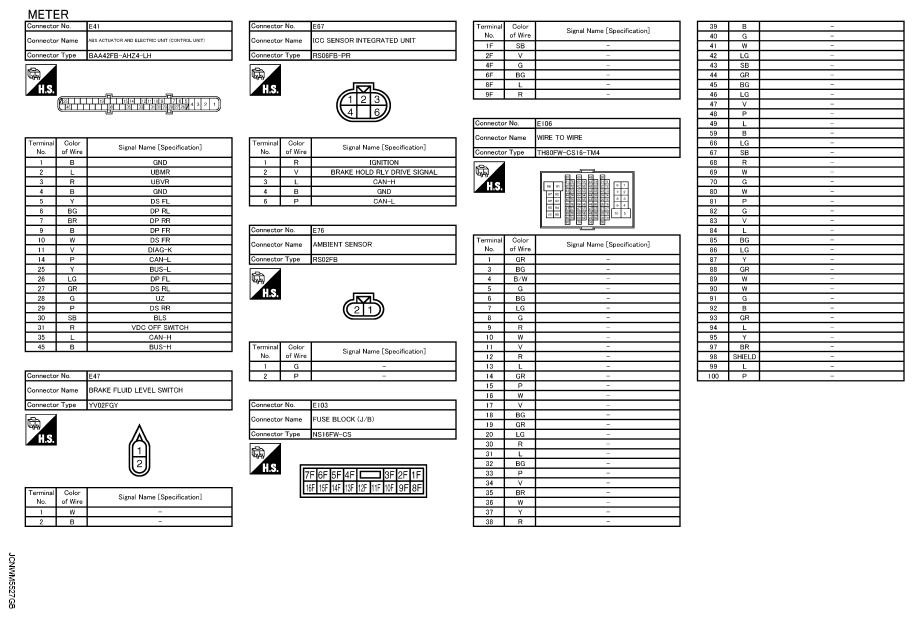

Fig 6: Meter Connector End Views (3 Of 9)

G07159260

Courtesy of NISSAN MOTOR CO., U.S.A.

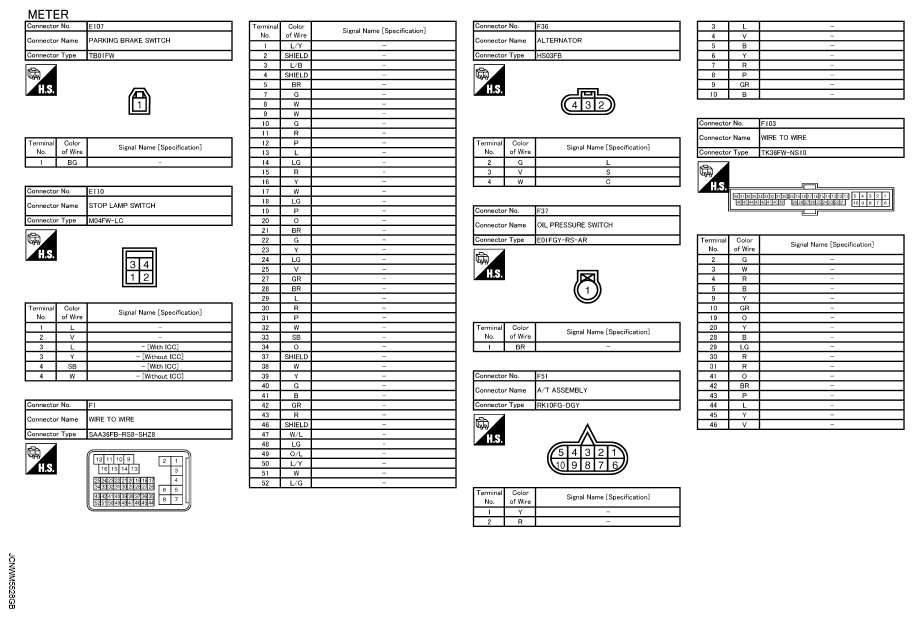

Fig 7: Meter Connector End Views (4 Of 9)

G07159261

Courtesy of NISSAN MOTOR CO., U.S.A.

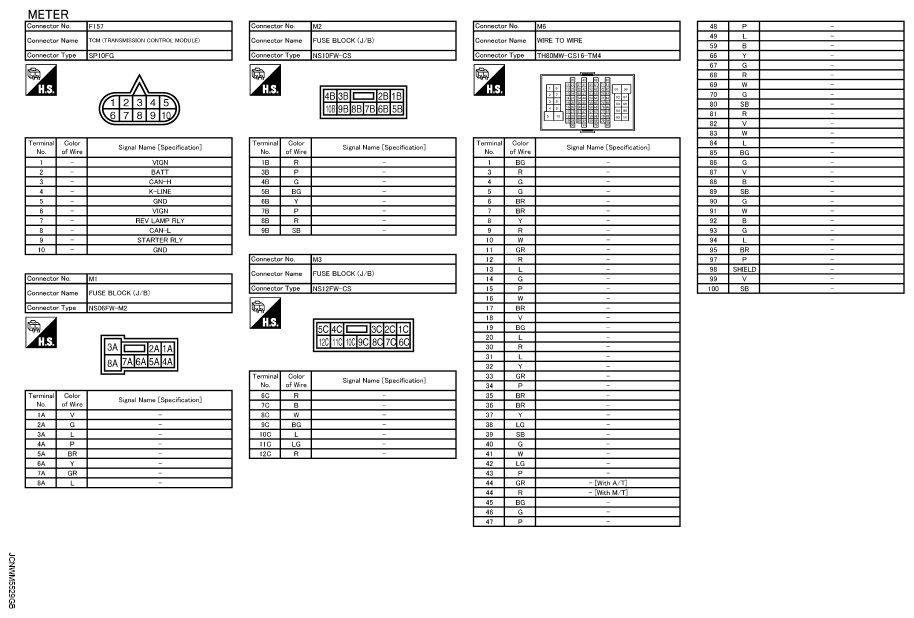

Fig 8: Meter Connector End Views (5 Of 9)

G07159262

Courtesy of NISSAN MOTOR CO., U.S.A.

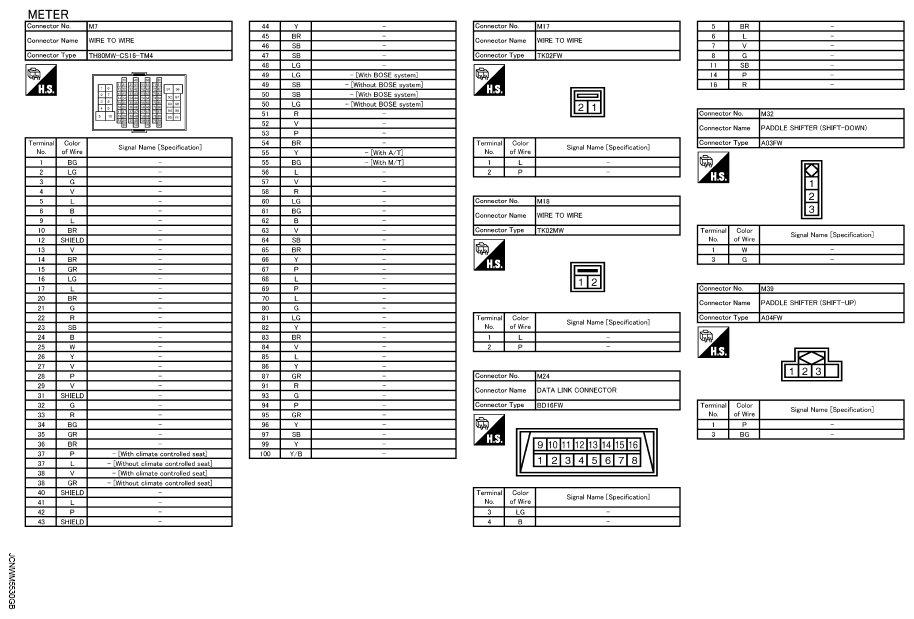

Fig 9: Meter Connector End Views (6 Of 9)

G07159263

Courtesy of NISSAN MOTOR CO., U.S.A.

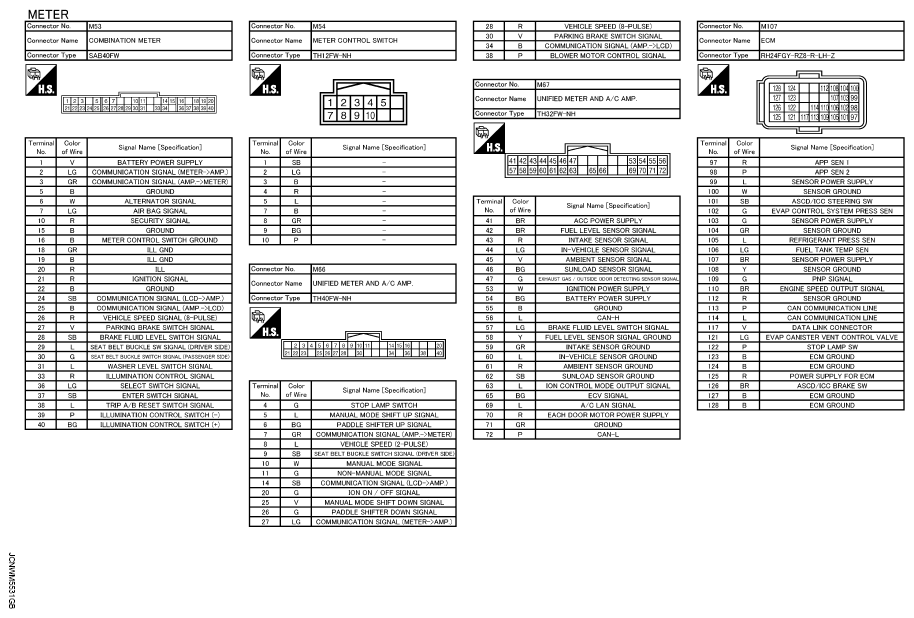

Fig 10: Meter Connector End Views (7 Of 9)

G07159264

Courtesy of NISSAN MOTOR CO., U.S.A.

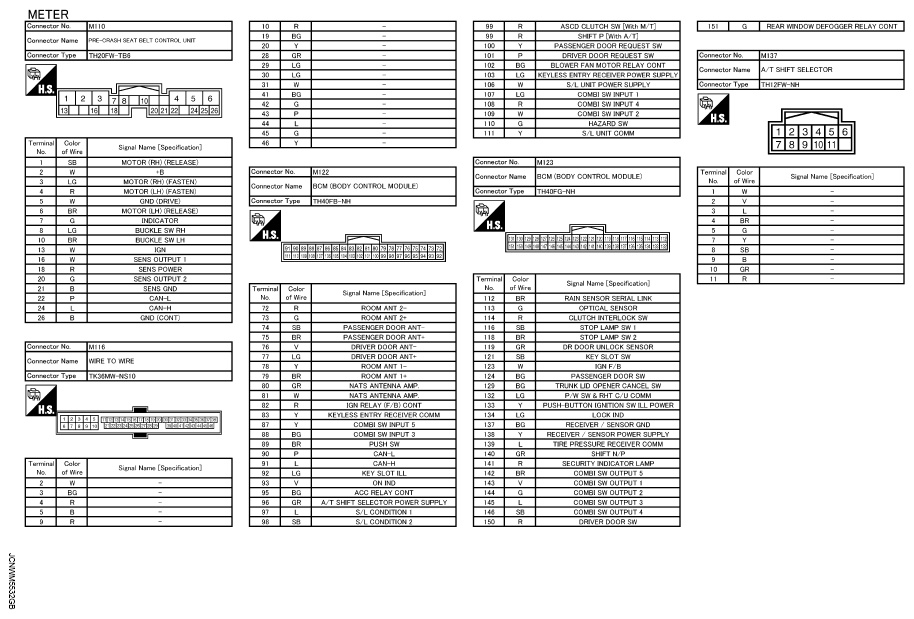

Fig 11: Meter Connector End Views (8 Of 9)

G07159265

Courtesy of NISSAN MOTOR CO., U.S.A.

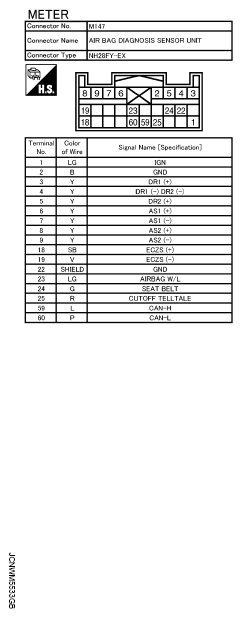

Fig 12: Meter Connector End Views (9 Of 9)

G07159266

Courtesy of NISSAN MOTOR CO., U.S.A.
