Infiniti
>>
2011
>>
G37 Base, 2D Convertible
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Meter, Warning Lamp & Indicator -- G37 Convertible
>>
Ecu Diagnosis Information
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Wiring Diagram - IPDM E/R -
Wiring Diagram - IPDM E/R -

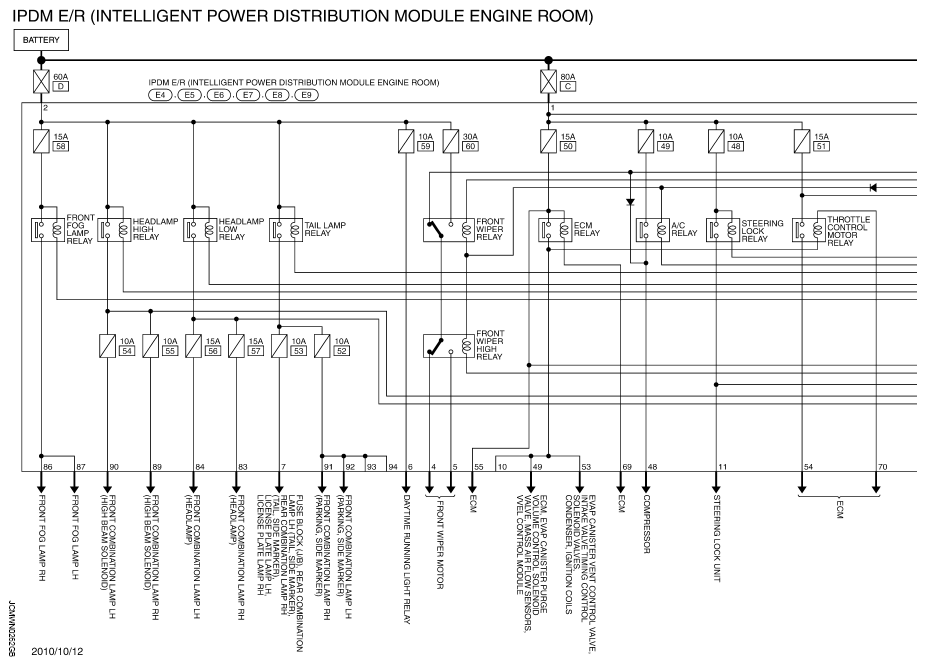

Fig 1: IPDM E/R - Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

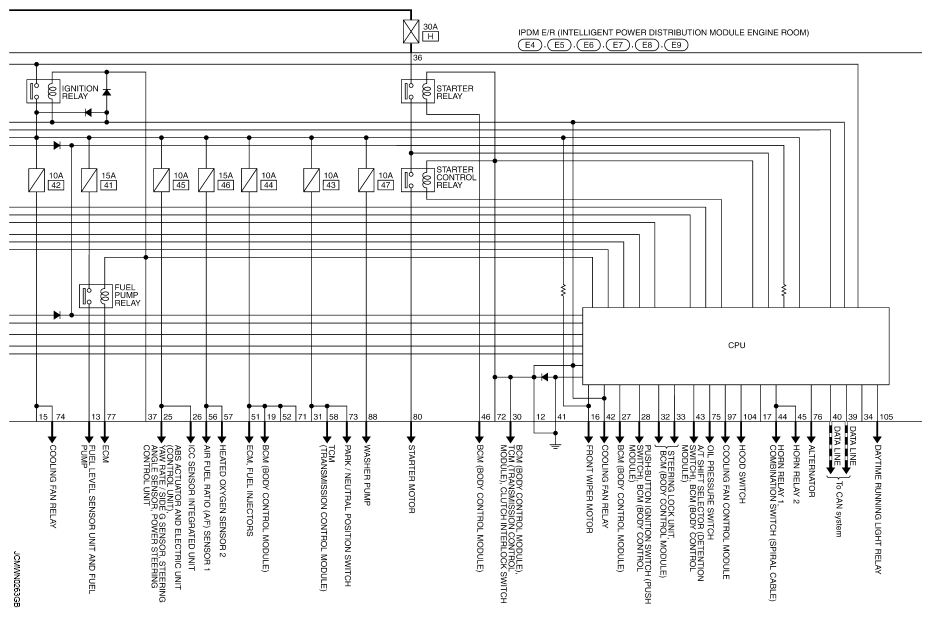

Fig 2: IPDM E/R - Wiring Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: IPDM E/R - Wiring Diagram (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

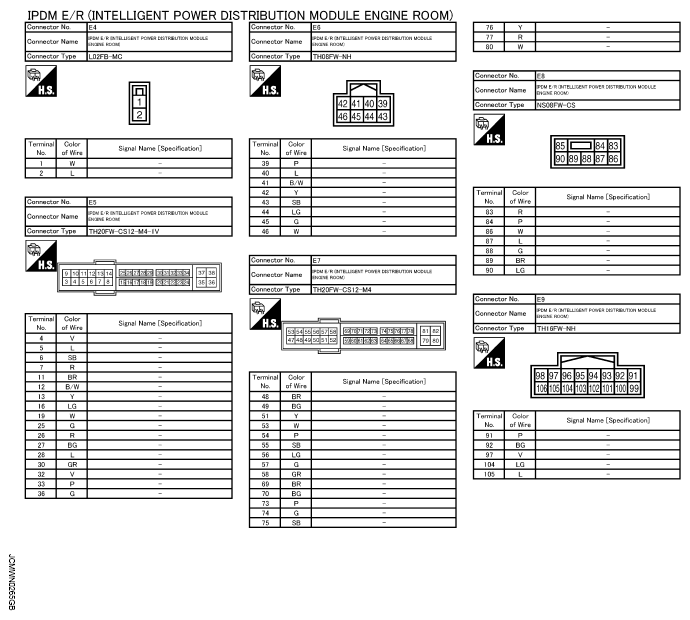

Fig 4: Identifying IPDM E/R Connector End Views
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
