Rear Propeller Shaft (3S80A) -- G25/G37 Sedan
>>
Removal And Installation
>>
Rear Propeller Shaft
>>
Exploded View
Exploded View

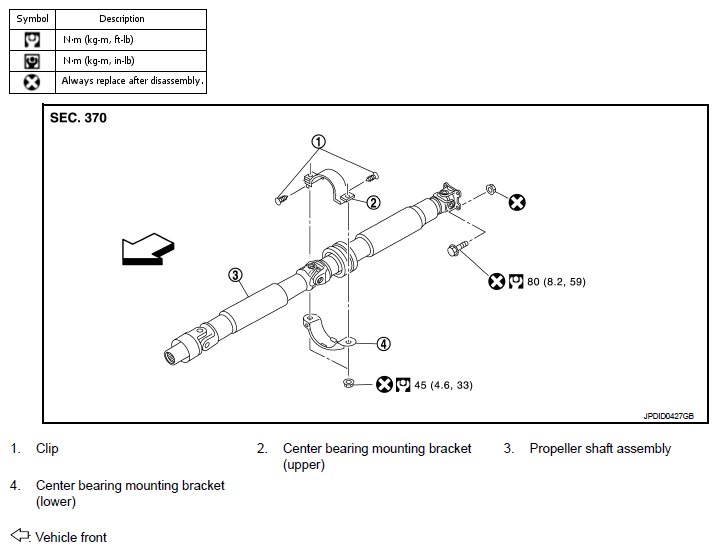

Fig 1: Exploded View Of Rear Propeller Shaft With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
<=: Vehicle front
Refer to "
COMPONENTS
" for symbols in the figure.
