Meter, Warning Lamp & Indicator -- G25/G37 Sedan
>>
Ecu Diagnosis Information
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Wiring Diagram - IPDM E/R -
Wiring Diagram - IPDM E/R -

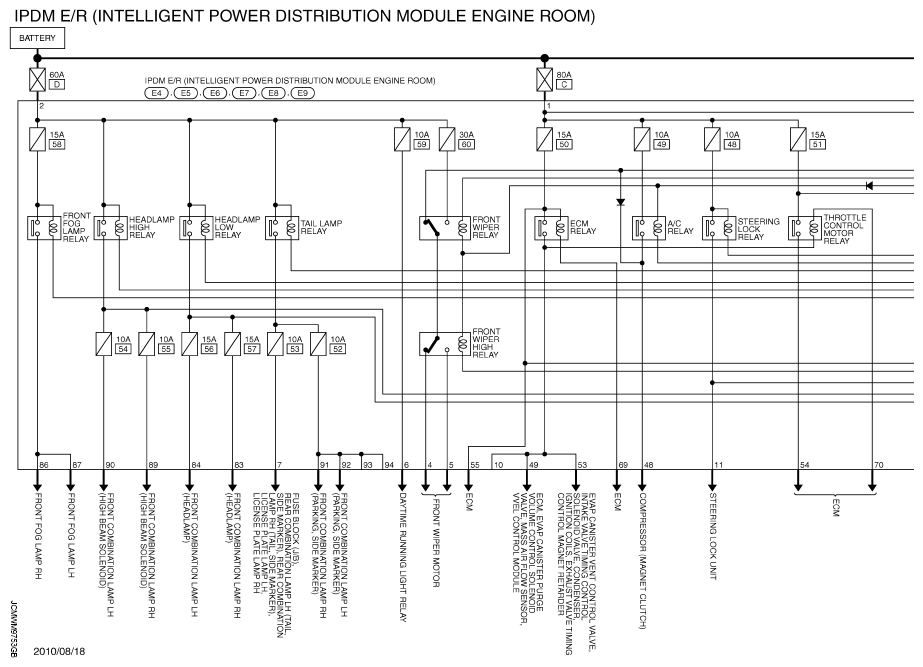

Fig 1: IPDM E/R - Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

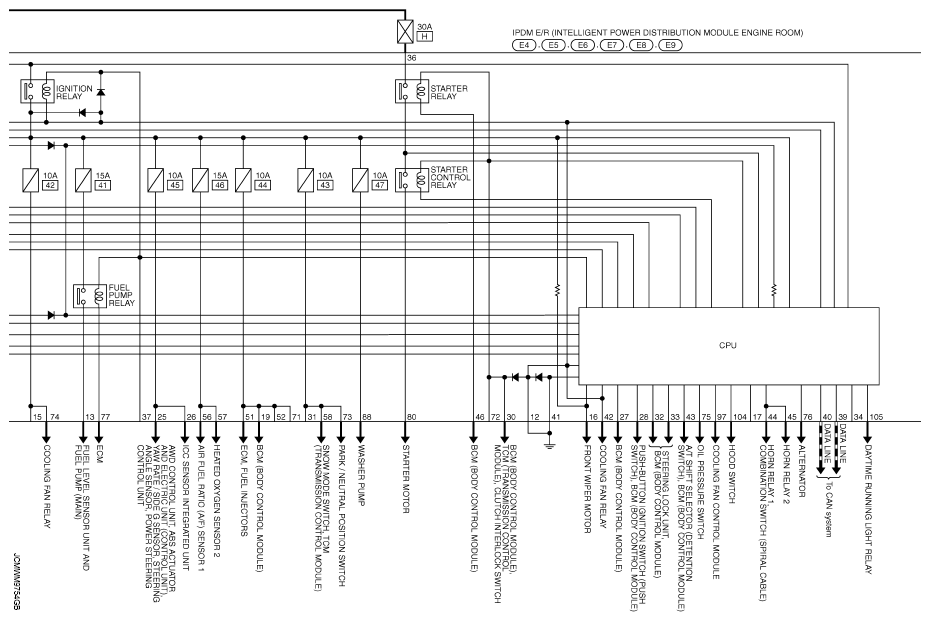

Fig 2: IPDM E/R - Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: IPDM E/R - Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

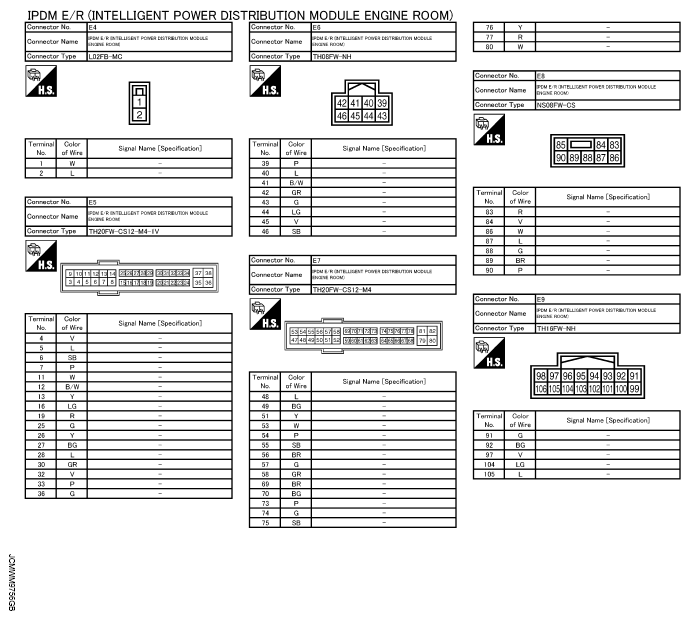

Fig 4: Identifying IPDM E/R Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
