Wiring Diagram - METER -

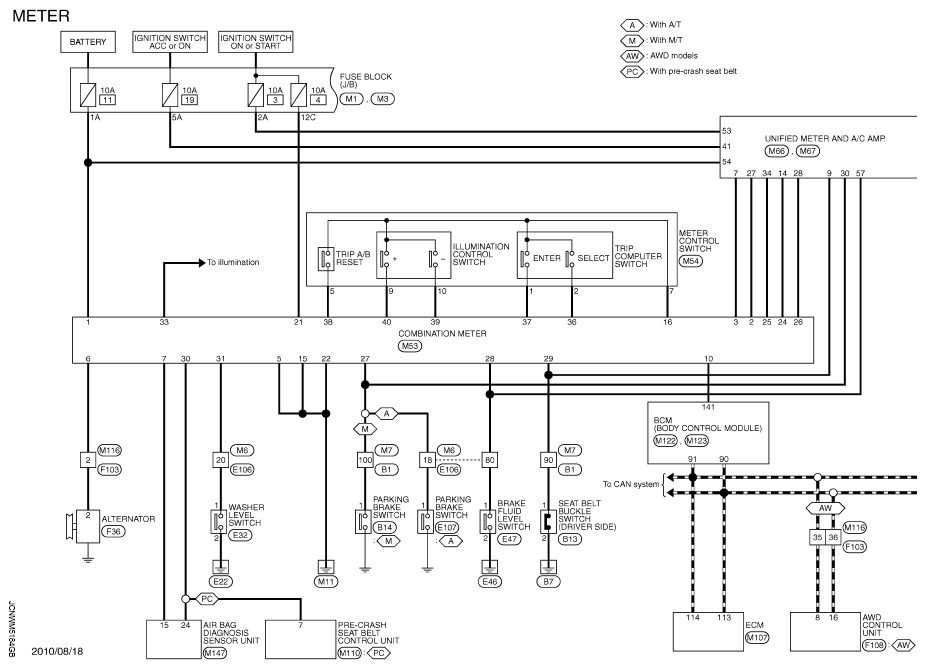

Fig 1: Meter - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

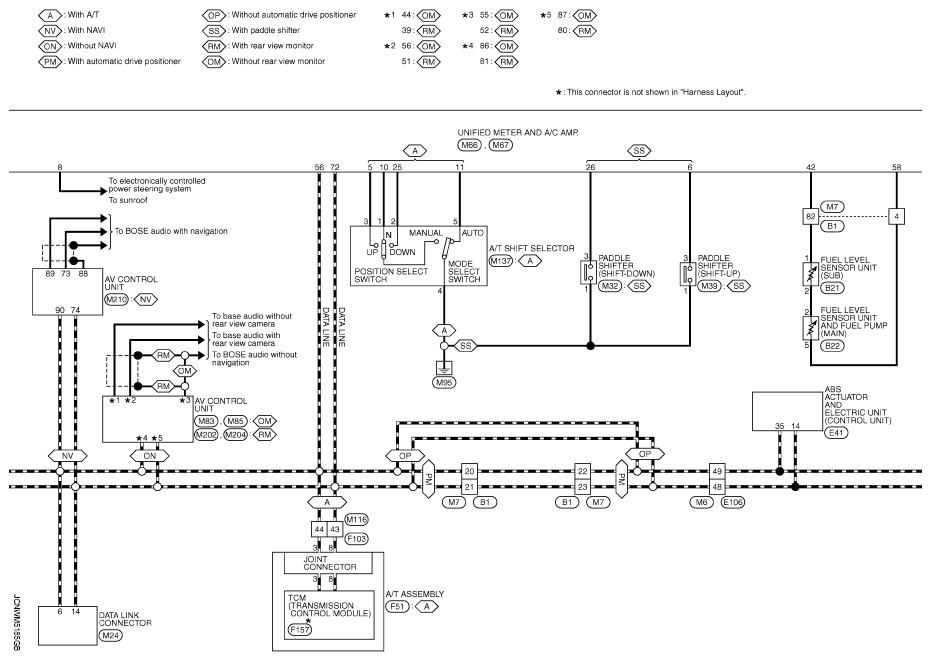

Fig 2: Meter - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

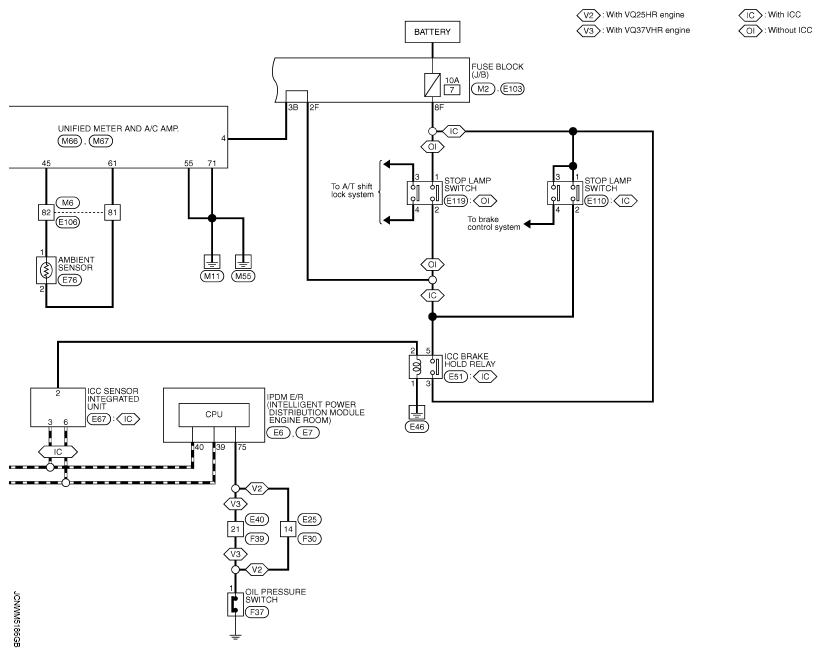

Fig 3: Meter - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

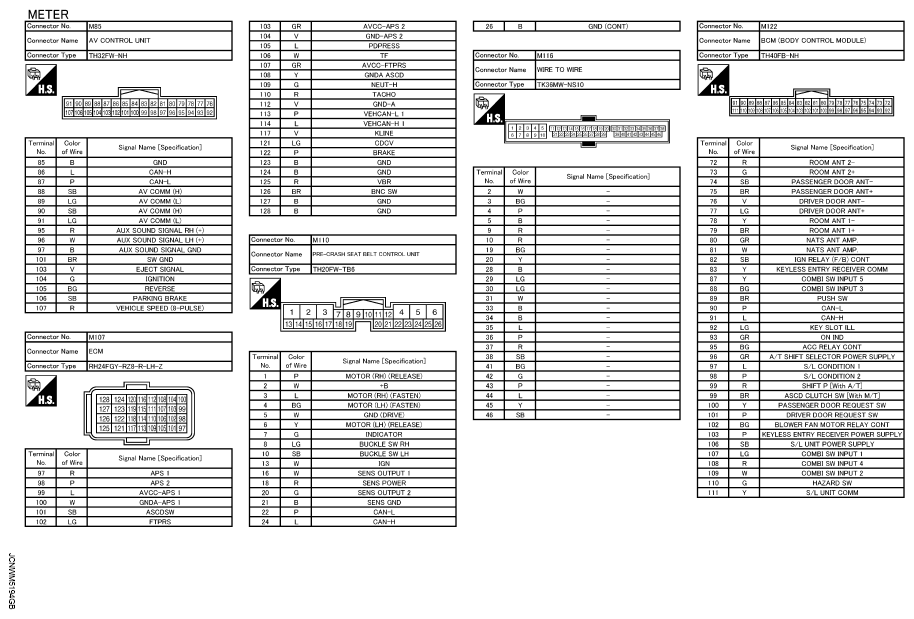

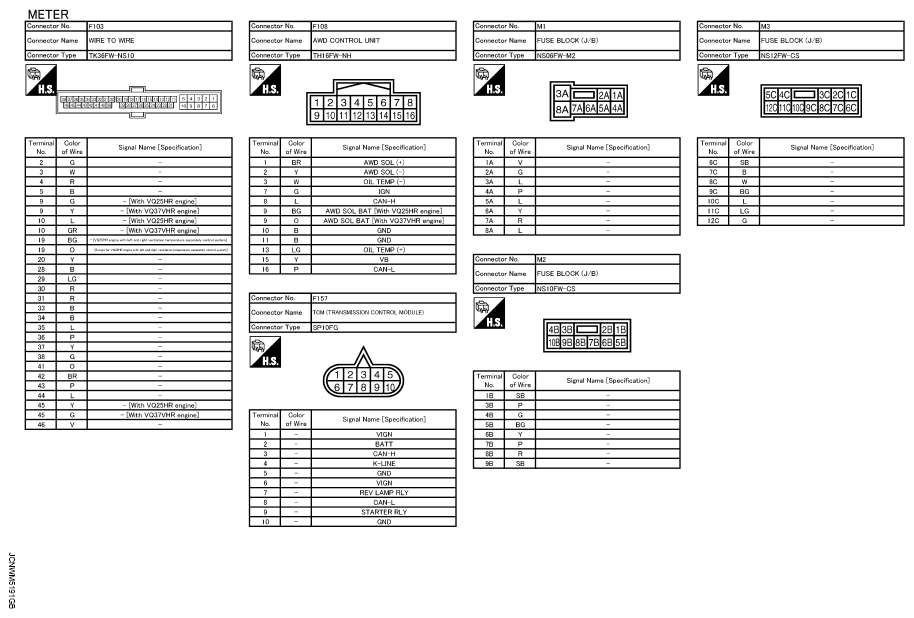

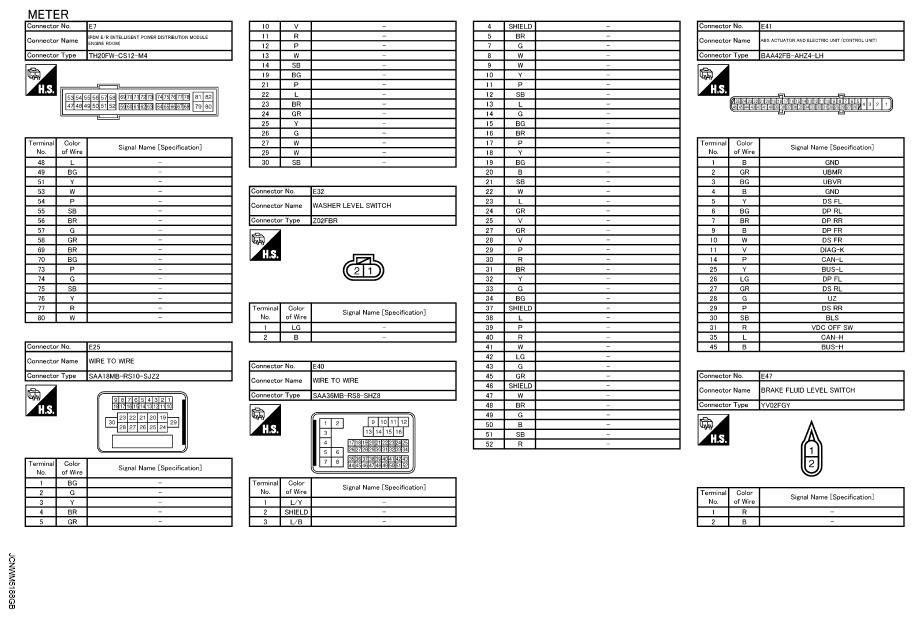

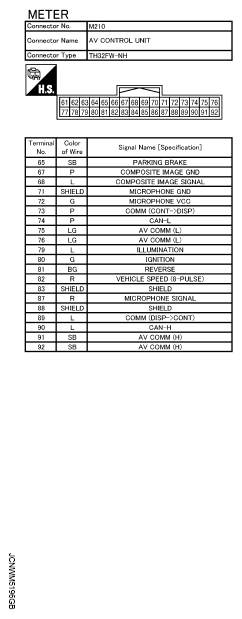

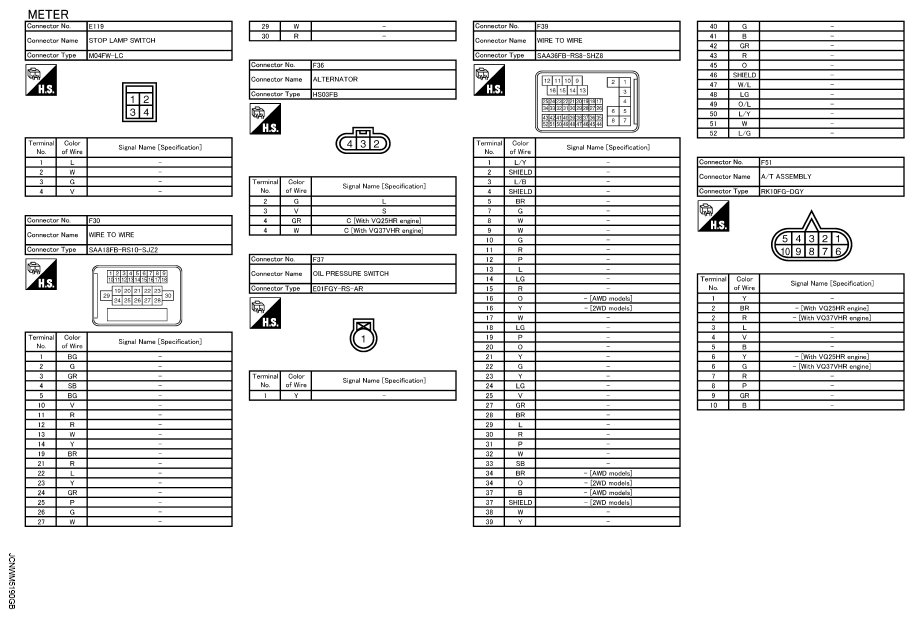

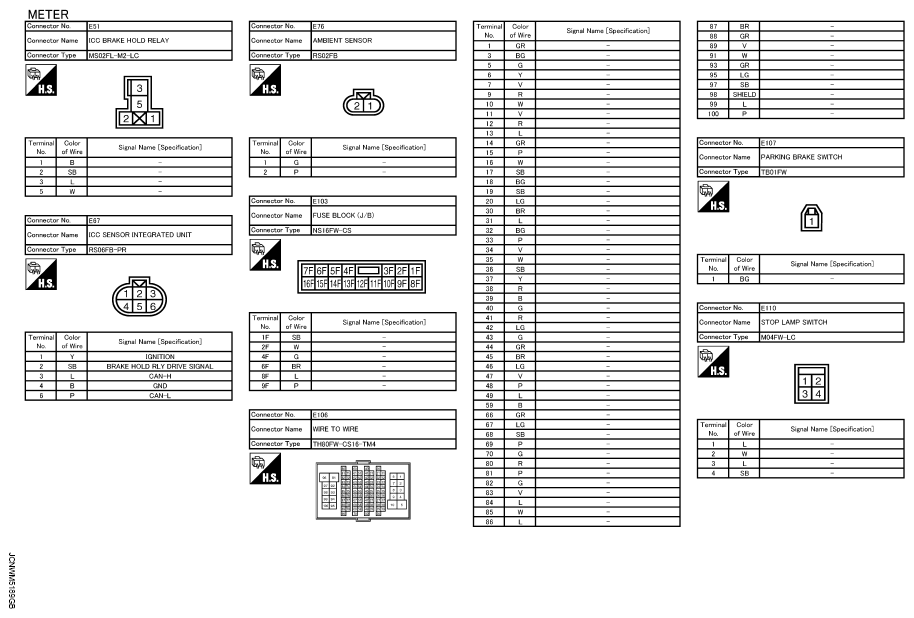

Fig 4: Identifying Meter Connector Terminals (1 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

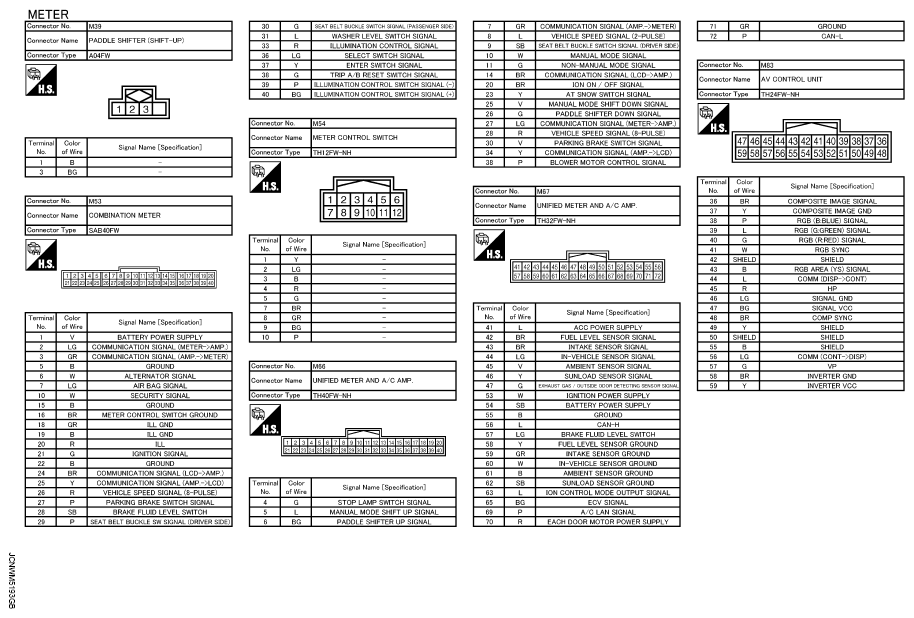

Fig 5: Identifying Meter Connector Terminals (2 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

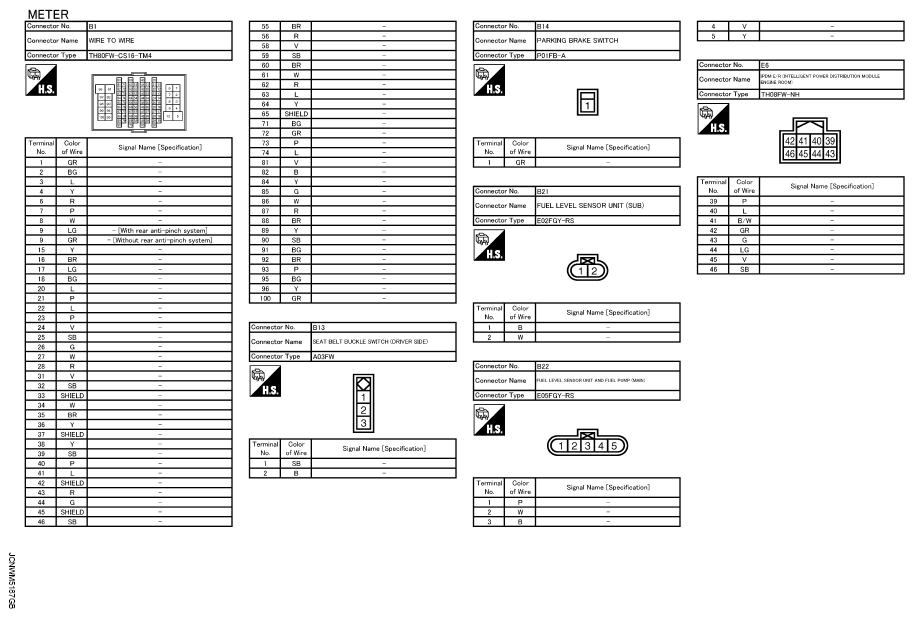

Fig 6: Identifying Meter Connector Terminals (3 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

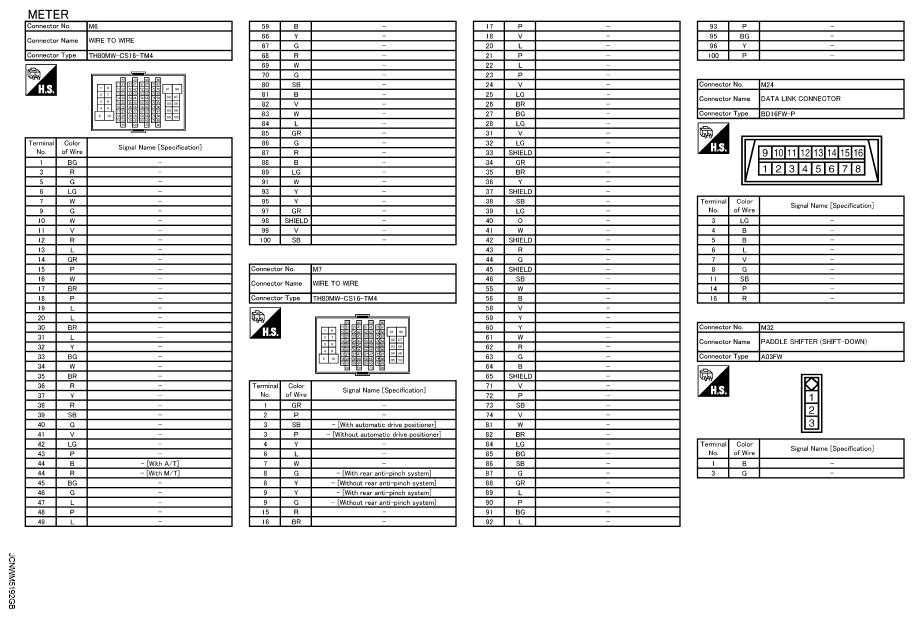

Fig 7: Identifying Meter Connector Terminals (4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

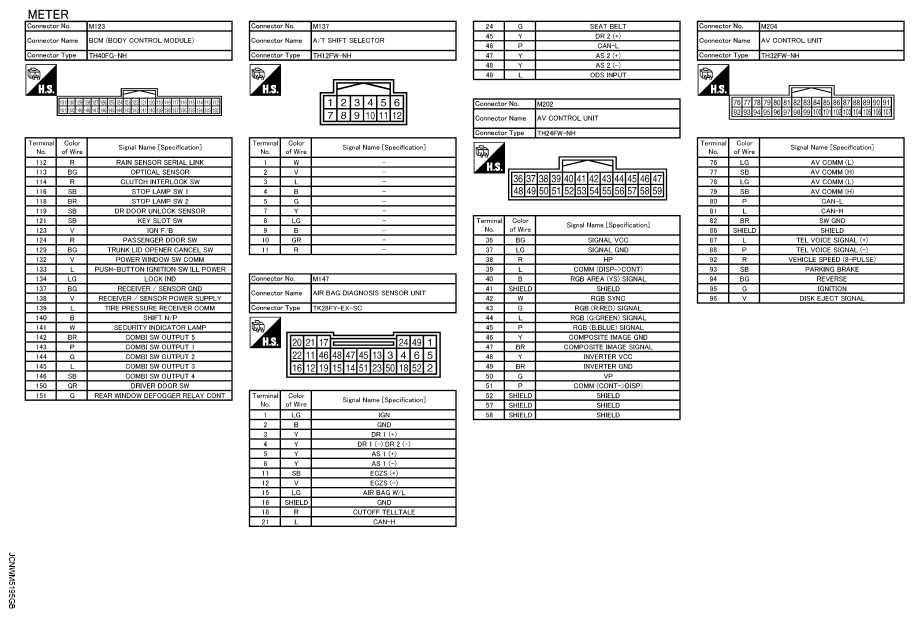

Fig 8: Identifying Meter Connector Terminals (5 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Meter Connector Terminals (6 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Meter Connector Terminals (7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Meter Connector Terminals (8 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Meter Connector Terminals (9 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Meter Connector Terminals (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
