Instrument Panel System -- G25/G37 Sedan
>>
Removal And Installation
>>
Instrument Panel Assembly
>>
M/T Models
>>
M/T MODELS : Exploded View
M/T MODELS : Exploded View

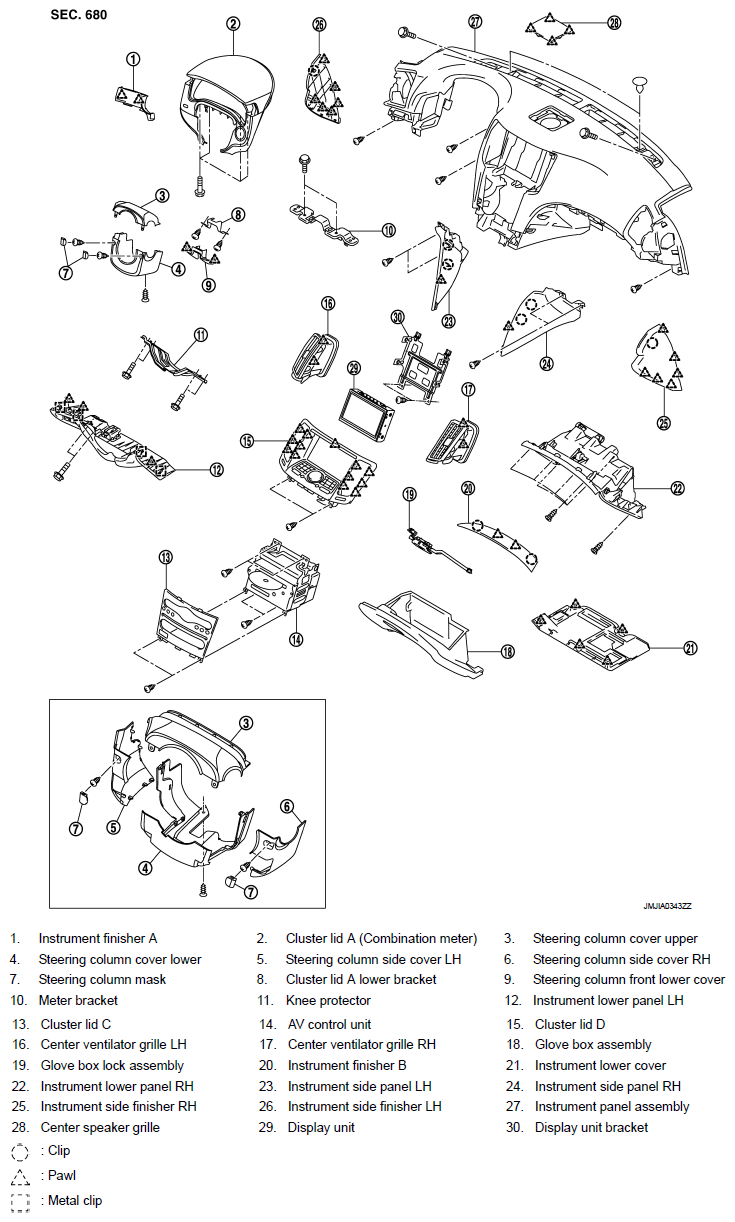

Fig 1: Exploded View Of Instrument Panel Assembly (M/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
