Removal and Installation: Removal
- Remove battery cover.
- Disconnect the battery cable from the negative terminal.
- Remove cover of battery positive terminal.

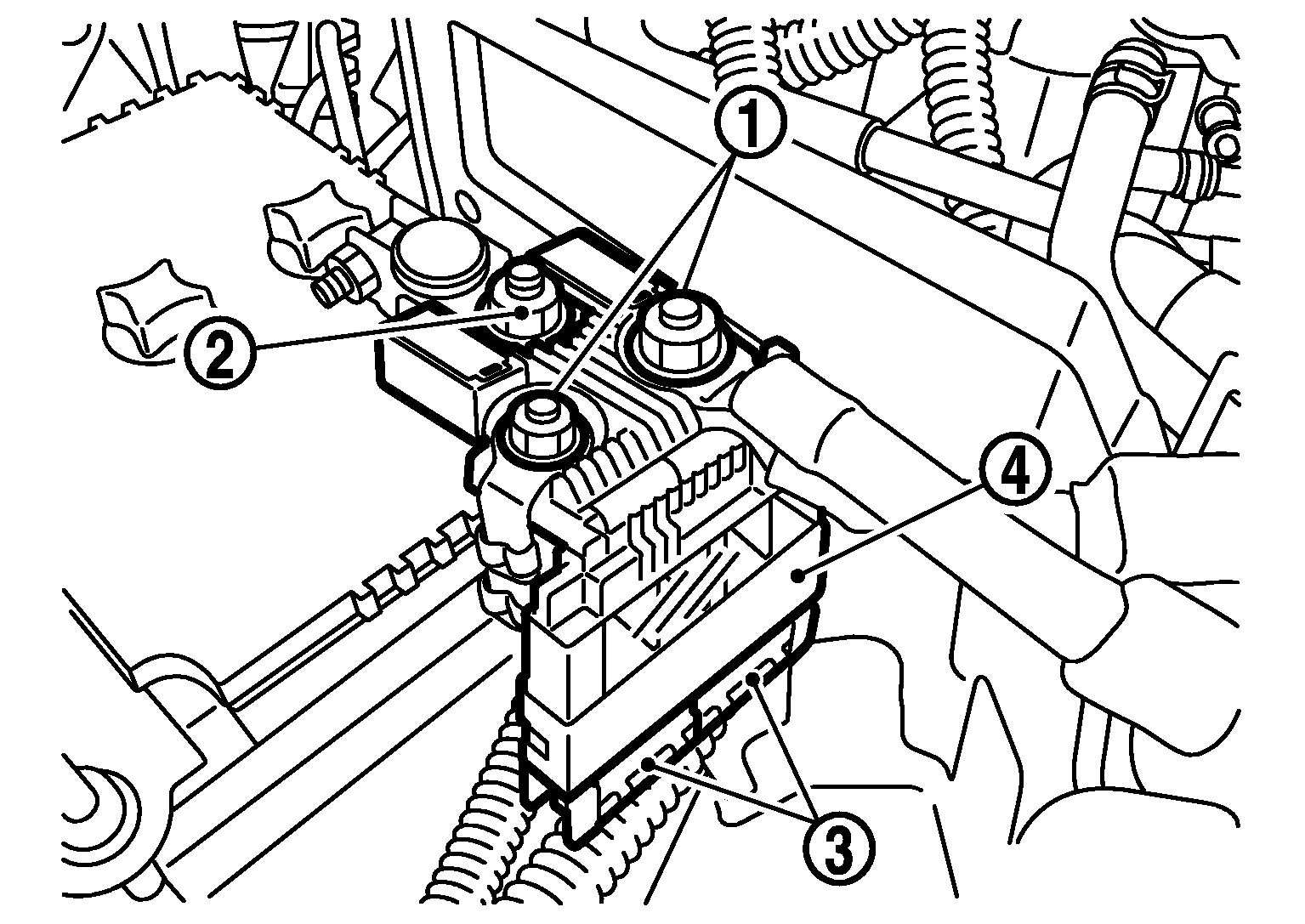

- Remove harness mounting nuts (1) and battery terminal with fusible link mounting nut (2).
- Disconnect harness connector (3) and remove battery terminal with fusible link (4).
