Electrical System - Power Supply, Ground & Circuit Elements -- FX35/FX50
>>
Removal And Installation
>>
Battery Terminal With Fusible Link
>>
Exploded View
Exploded View

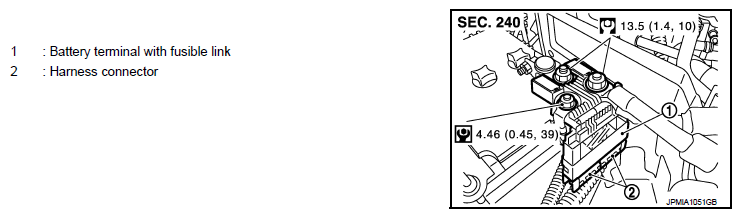

Fig 1: Identifying Battery Terminal With Fusible Link And Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
