KEY REMINDER FUNCTION : Component Parts Location

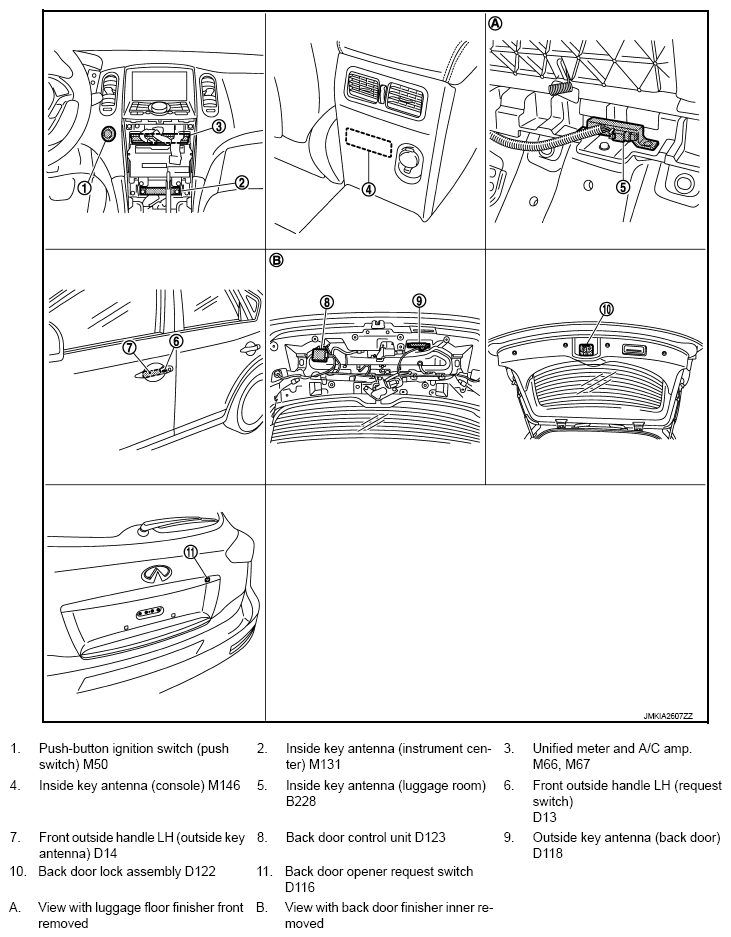

Fig 1: Key Reminder Function Components Location (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Key Reminder Function Components Location (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
