Wiring Diagram - POWER DOOR LOCK SYSTEM -

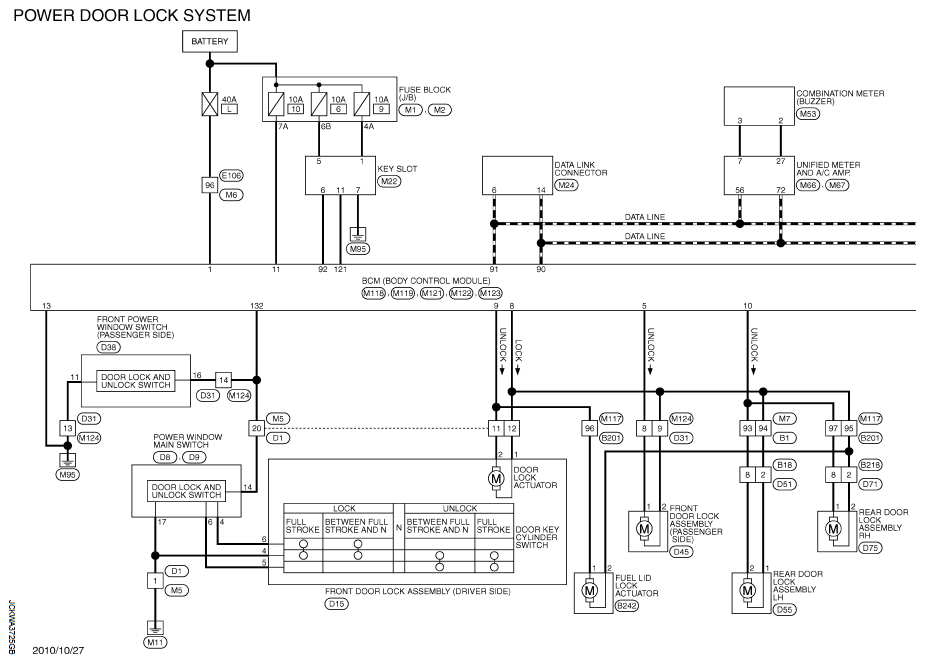

Fig 1: Power Door Lock System - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

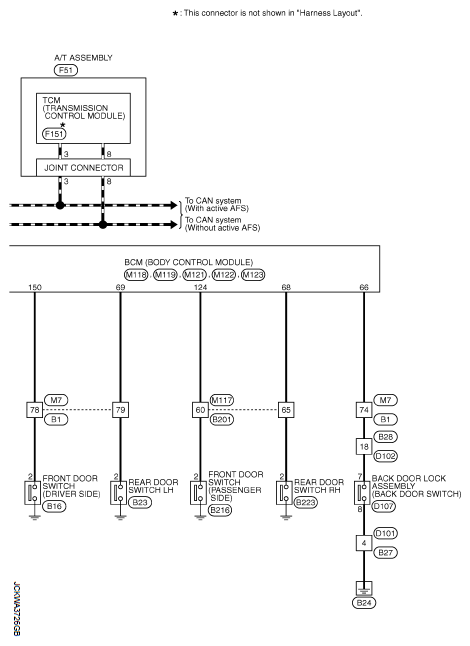

Fig 2: Power Door Lock System - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

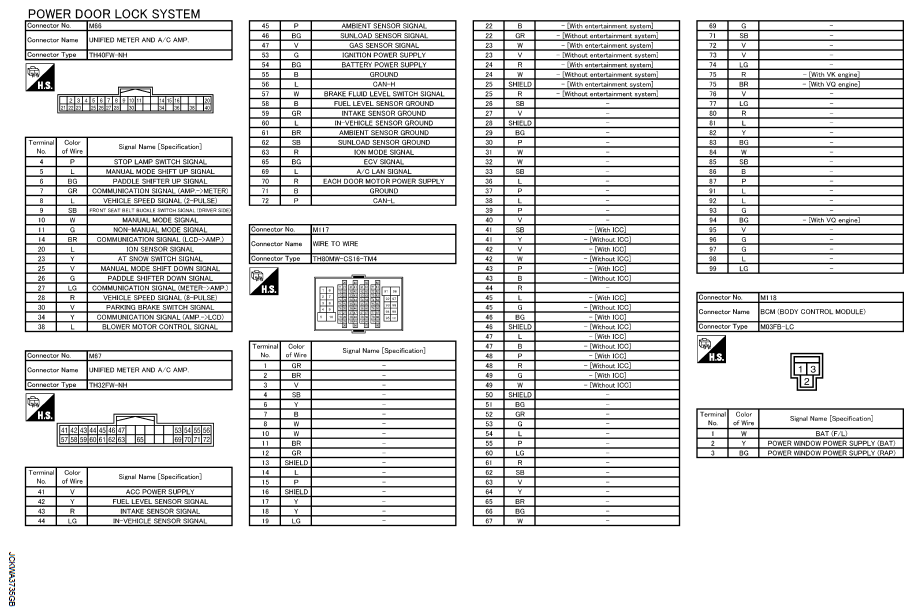

Fig 3: Identifying Power Door Lock System Connectors Terminal Identification (1 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

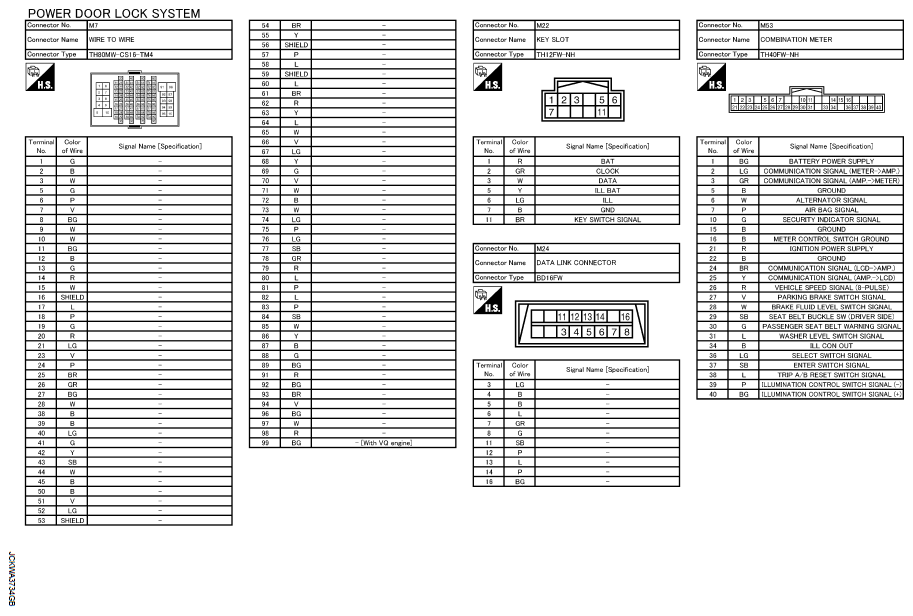

Fig 4: Identifying Power Door Lock System Connectors Terminal Identification (2 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

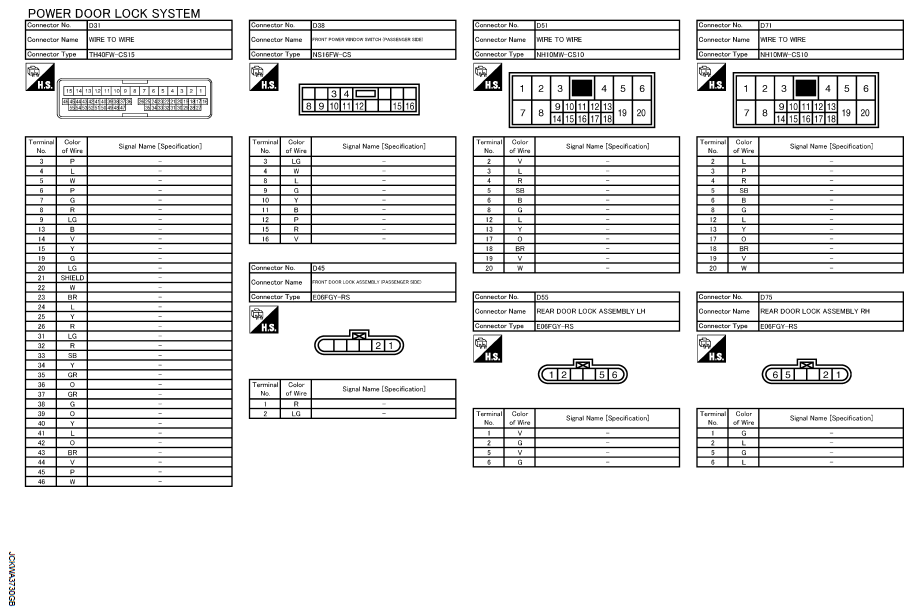

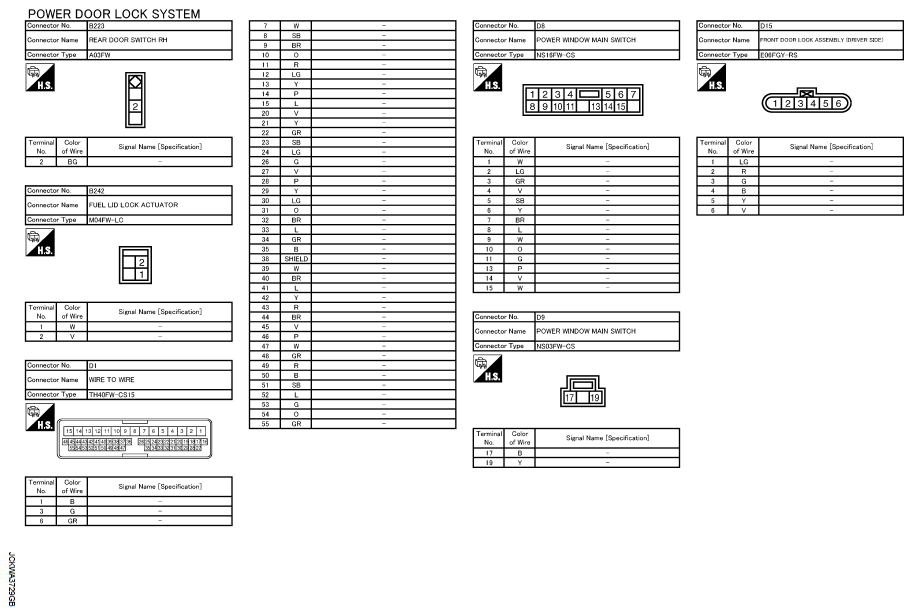

Fig 5: Identifying Power Door Lock System Connectors Terminal Identification (3 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

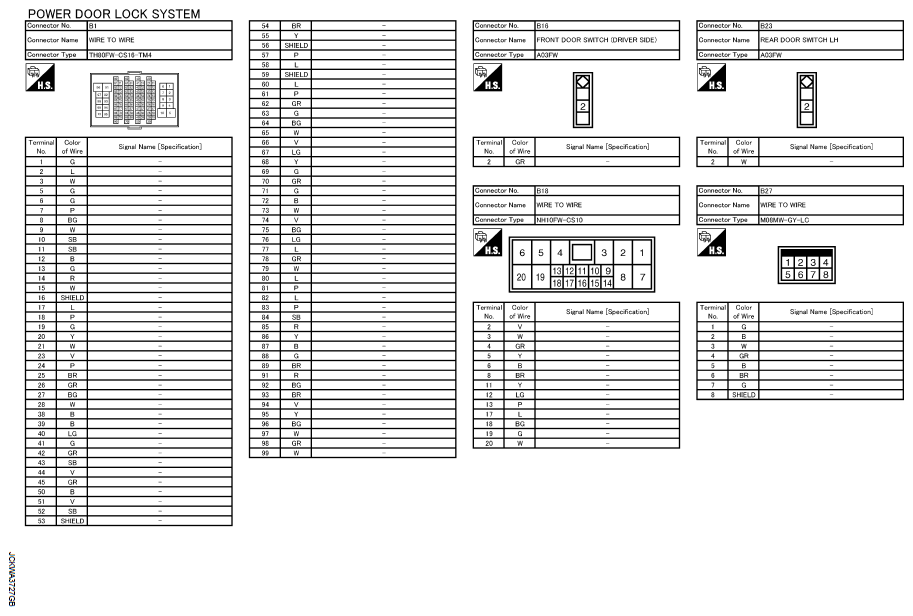

Fig 6: Identifying Power Door Lock System Connectors Terminal Identification (4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

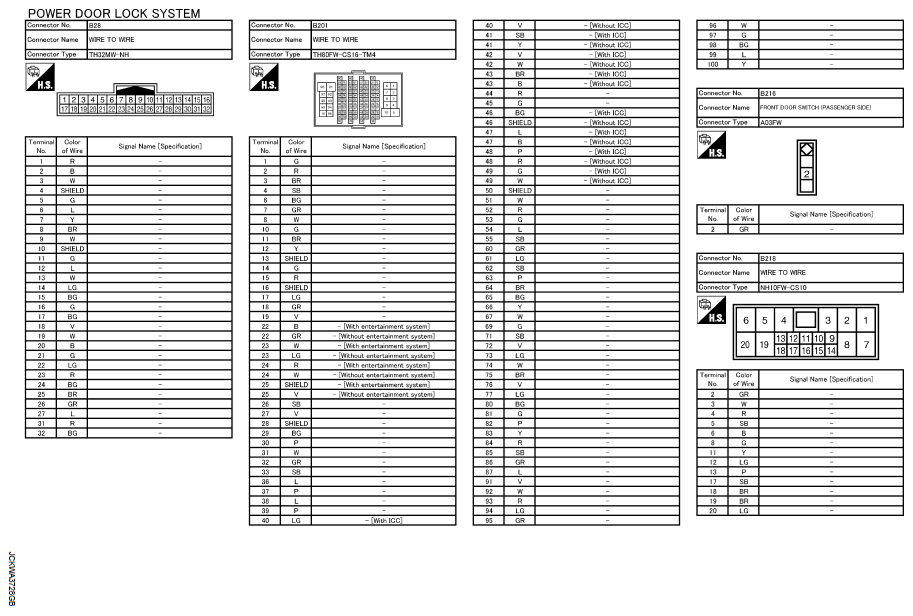

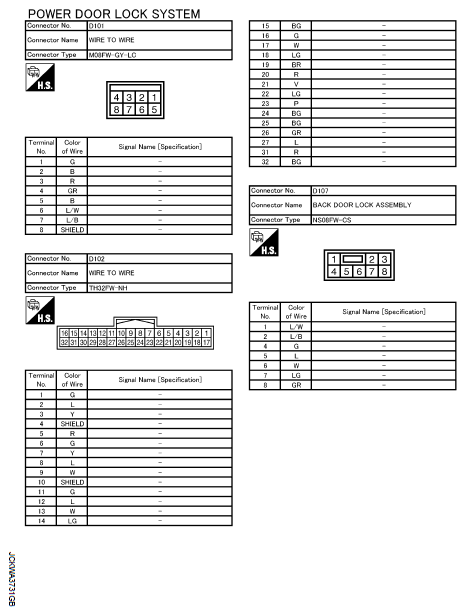

Fig 7: Identifying Power Door Lock System Connectors Terminal Identification (5 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

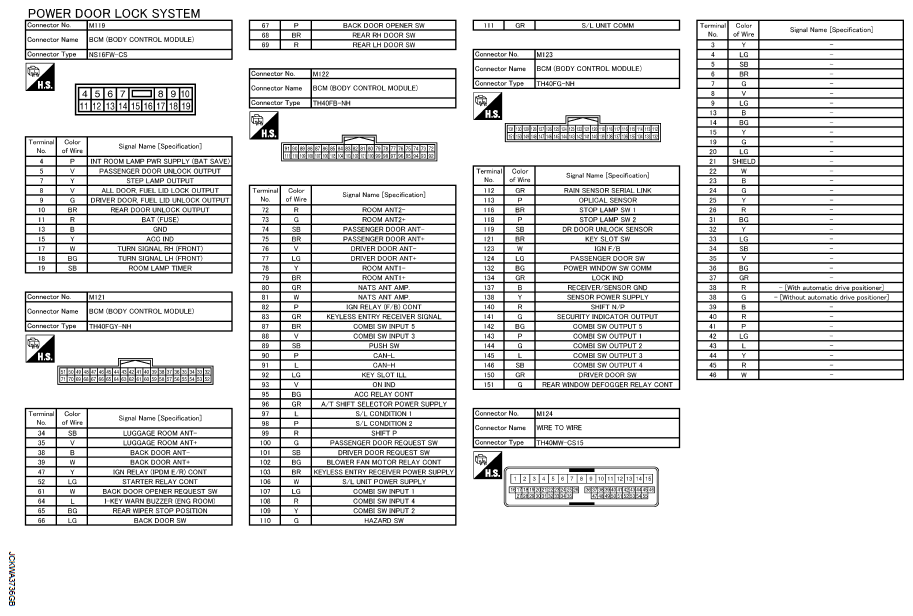

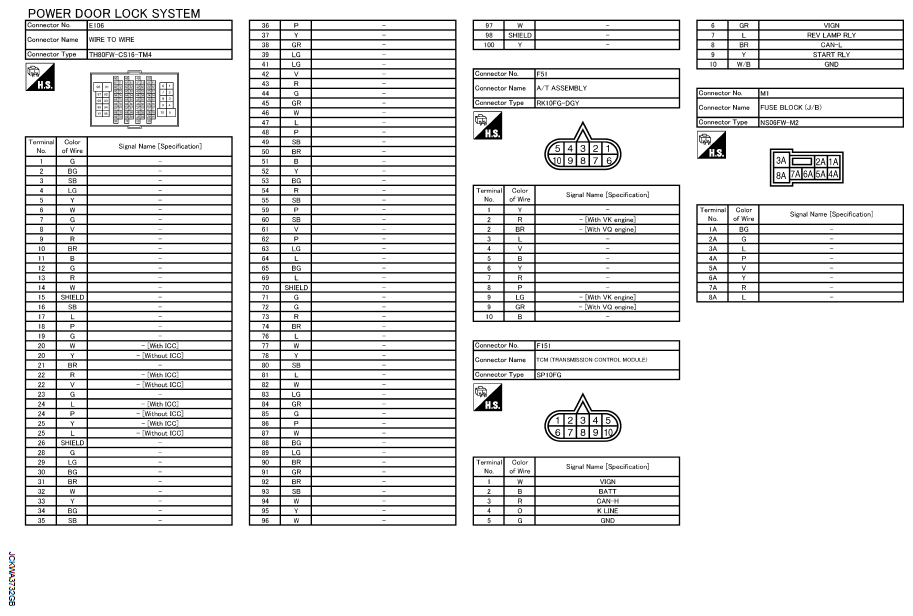

Fig 8: Identifying Power Door Lock System Connectors Terminal Identification (6 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

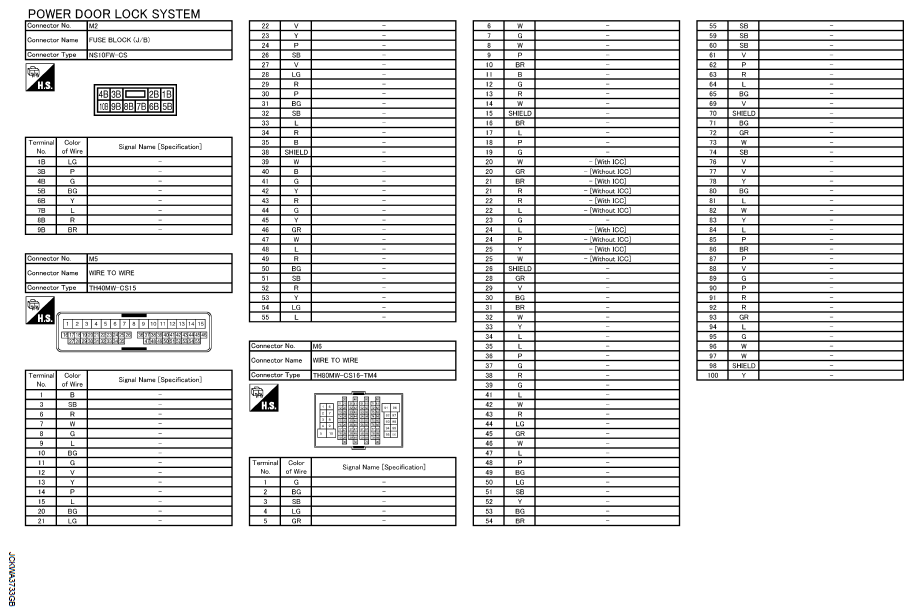

Fig 9: Identifying Power Door Lock System Connectors Terminal Identification (7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Power Door Lock System Connectors Terminal Identification (8 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Power Door Lock System Connectors Terminal Identification (9 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Power Door Lock System Connectors Terminal Identification (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
