VQ35HR : Exploded View
VQ35HR : Exploded View

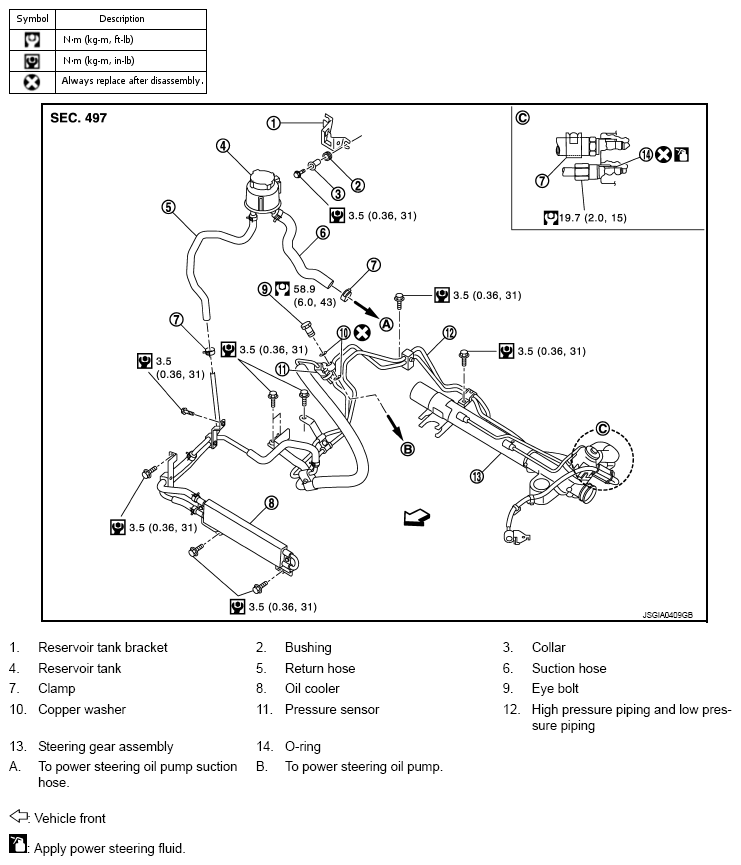

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (VQ35HR)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols not described on the above.
