LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2011
>>
FX35 RWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Removal And Installation
>>
Hydraulic Line
>>
VK50VE
>>
VK50VE : Exploded View
VK50VE : Exploded View

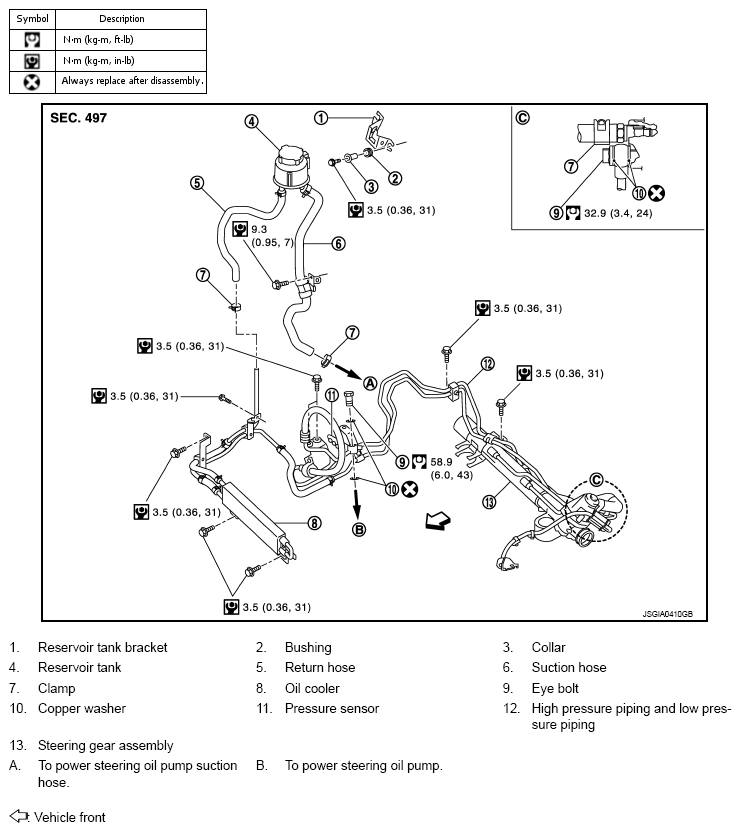

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (VQ35HR)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
