Removal and Installation: Removal

Remove the driver air bag module. Refer to "REMOVAL AND INSTALLATION ".
Remove the steering wheel. Refer to "REMOVAL AND INSTALLATION ".
Remove the steering column cover. Refer to "EXPLODED VIEW ".

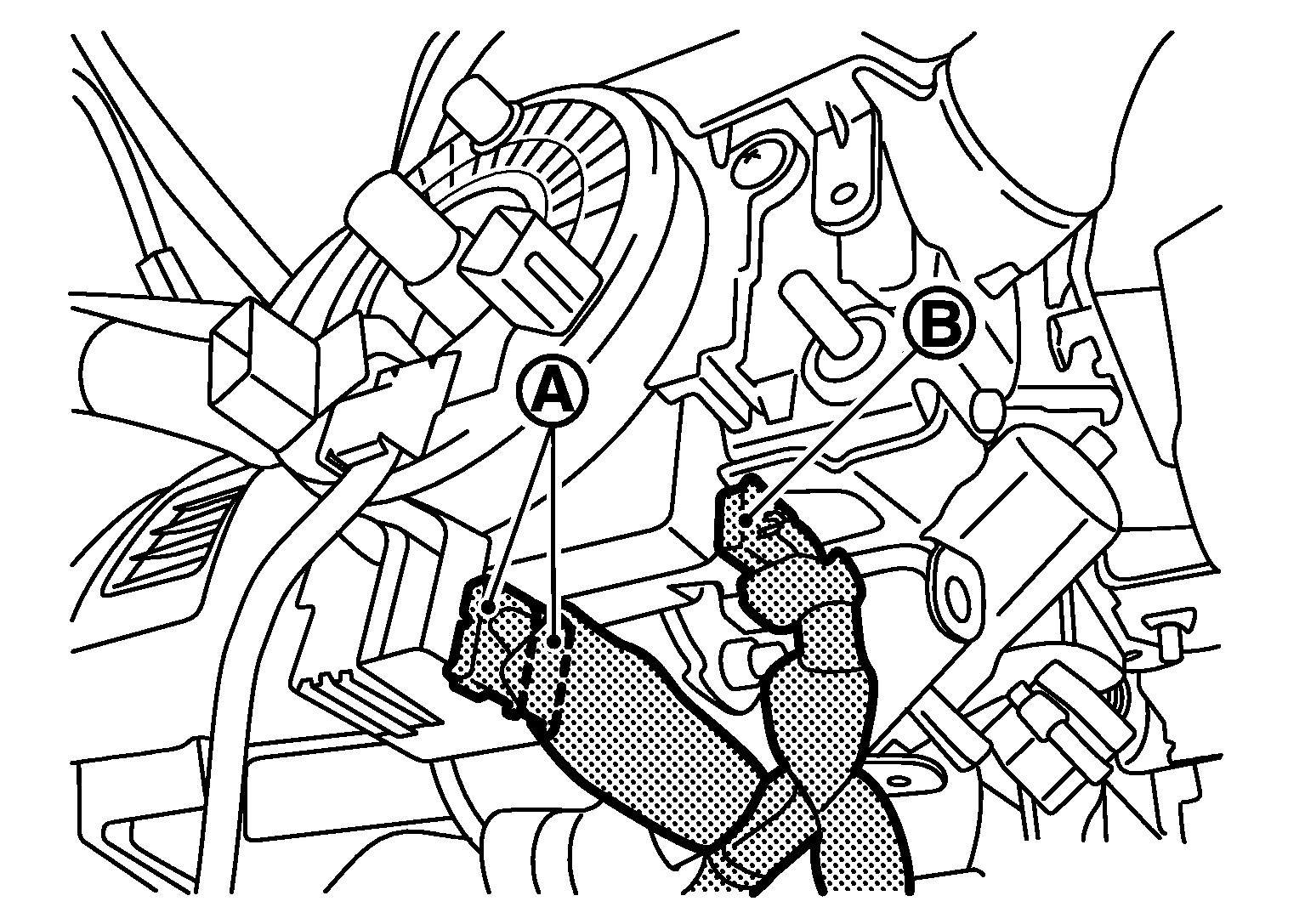

Disconnect the spiral cable body side harness connectors (A) and the steering angle sensor harness connector (B).

Fig 1: Identifying Spiral Cable Body Side Harness Connectors And Steering Angle Sensor Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the spiral cable fixing screws.

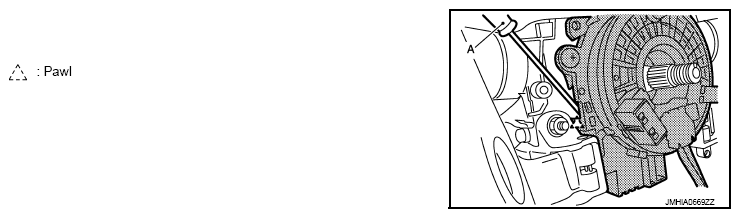

Remove the spiral cable side pawls (LH/RH) with flat-bladed screw driver (A).

Fig 2: Removing Spiral Cable Side Pawls Using Flat-Bladed Screw Driver
Courtesy of NISSAN MOTOR CO., U.S.A.
Pull the spiral cable and steering angle sensor out forward.

CAUTION:

Never impact the spiral cable.
Replace the spiral cable if it has been dropped or sustained an impact.

Fig 3: Caution For Spiral Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
Never disassemble the spiral cable.
Never apply lubricant to the spiral cable.
Never allow oil, grease, detergent, or water to come in contact with the spiral cable.
