Removal and Installation: Removal

Remove the instrument panel assembly. Refer to "REMOVAL AND INSTALLATION ".
Remove the passenger air bag module (1) fixing screws (A).

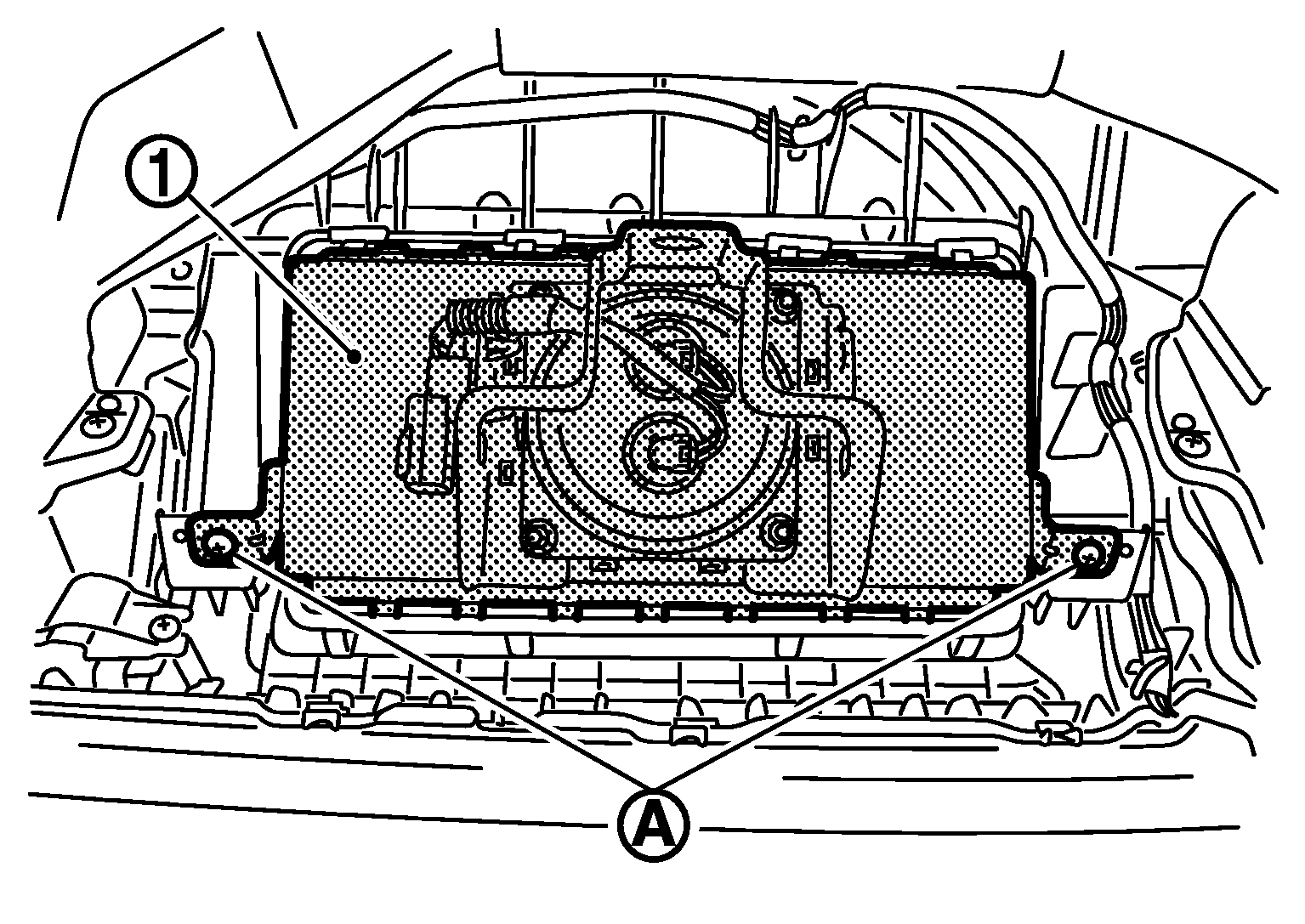

Fig 1: Identifying Passenger Air Bag Module And Fixing Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect pawls by using remover tool (A), and then remove the passenger air bag module (1) from the instrument panel assembly (2).

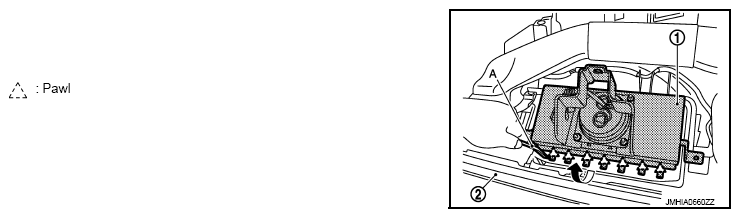

Fig 2: Identifying Passenger Air Bag Module Removing Direction
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Always place the passenger air bag module with pad side facing upward.

  Fig 3: Identifying Passenger Air Bag Module With Pad Side Facing Upward
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Never impact the passenger air bag module.
- Replace the passenger air bag module if it has been dropped or sustained an impact.

  Fig 4: Caution For Passenger Air Bag Module
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Never insert any foreign objects (screwdriver, etc.) into the passenger air bag module.
- Never disassemble the passenger air bag module.
- Never expose the passenger air bag module to temperatures exceeding 90°C (194°F).
- Never allow oil, grease, detergent, or water to come in contact with the passenger air bag module.
