Removal and Installation: Removal

  1. Remove passenger seat assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove occupant detection system control unit (1) fixing screws (A).
  3. Disconnect occupant detection system control unit harness connector.
  4. Remove occupant detection system control unit from seat cushion flame (2).

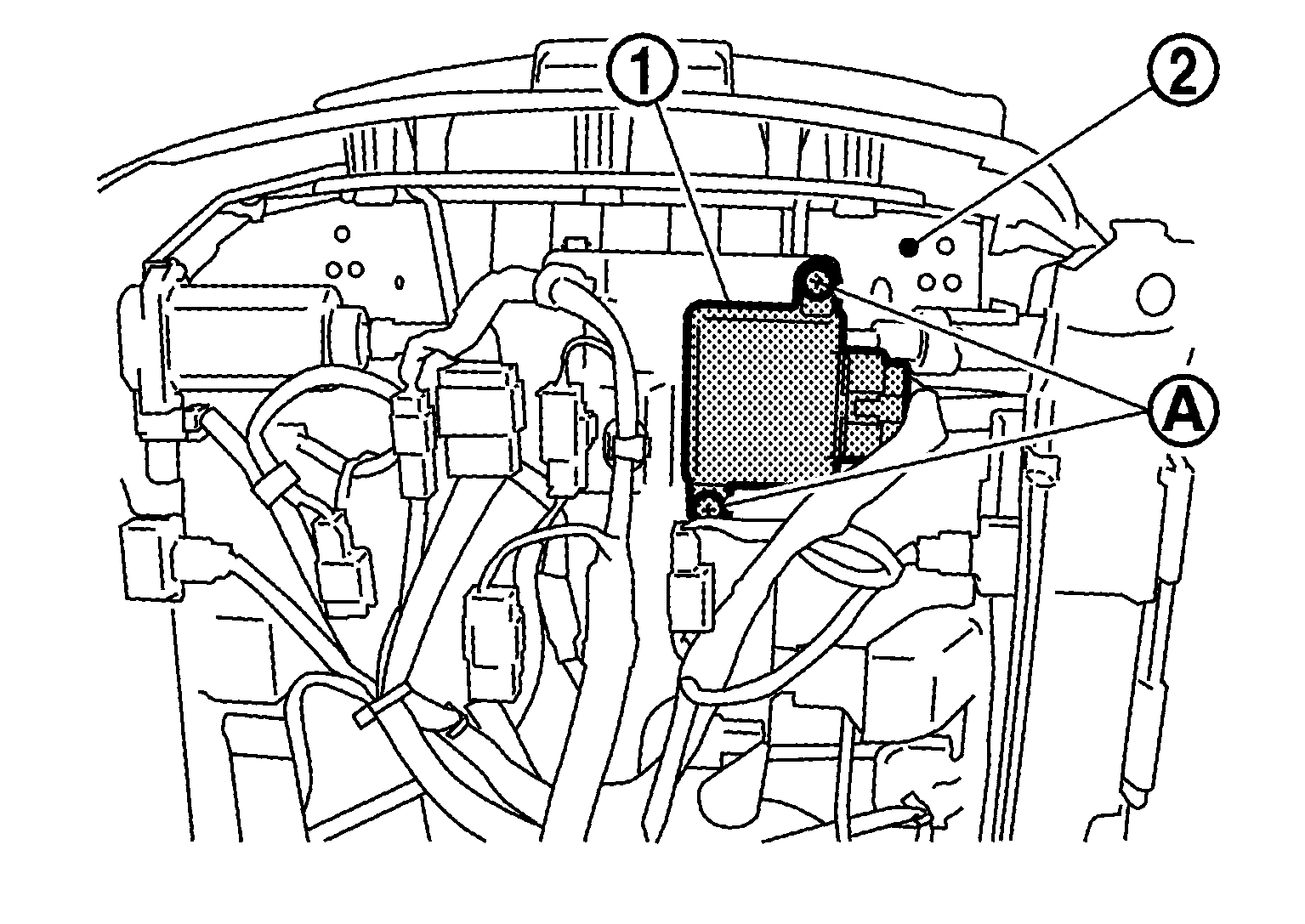

Fig 1: Identifying Occupant Detection System Control Unit, Fixing Screws And Seat Cushion Flame
G07233998Courtesy of NISSAN MOTOR CO., U.S.A.
