VQ35HR : Exploded View

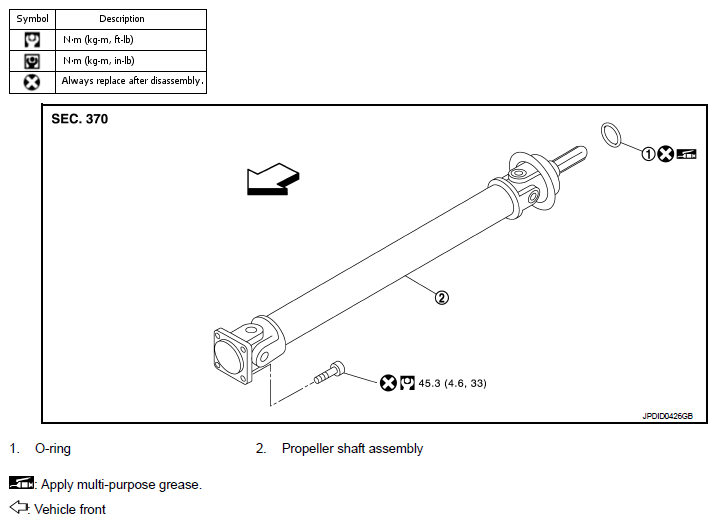

Fig 1: Exploded View Of Front Propeller Shaft With Torque Specifications (VQ35HR)
G07230196Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described above.
